Toyota ARISTO — SPEAKER

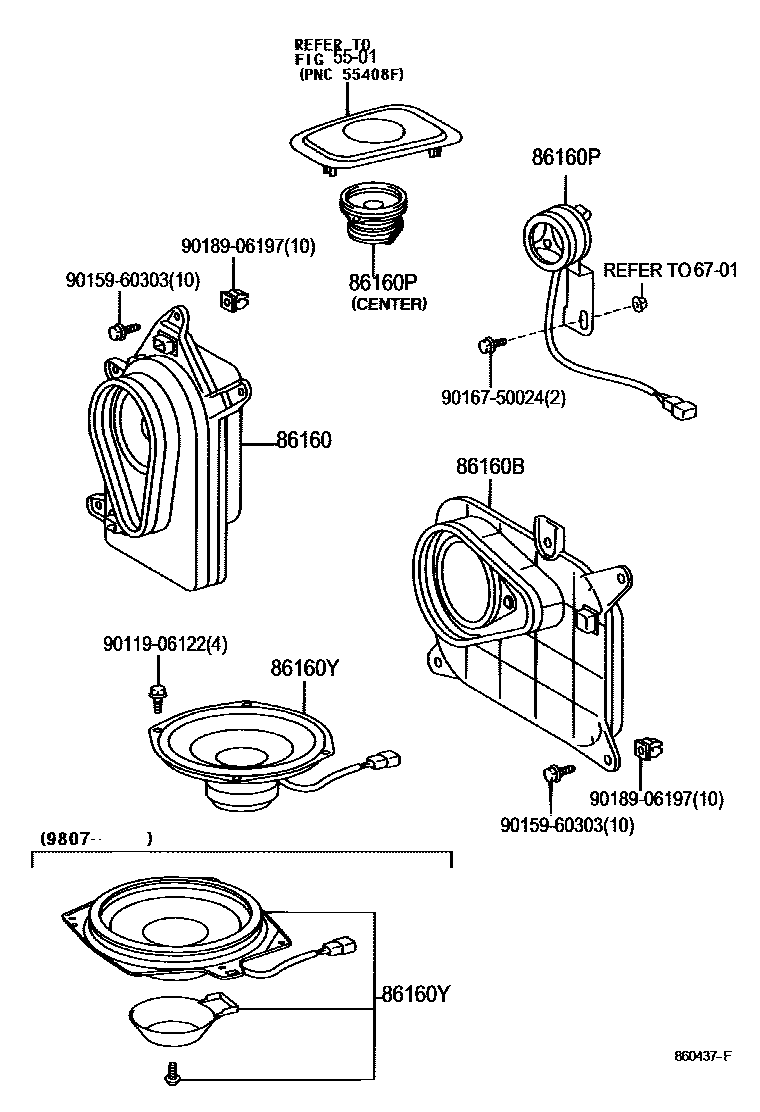

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

86160SPEAKER ASSY, FRONT NO.1

main86150-30250i199708-199908

main86150-30251i199908-200501

main86150-30260i199708-199908

main86150-30261i199908-200501

main86160-0W030i199708-200501

main86160-0W040i199708-200501

86160BSPEAKER ASSY, REAR

main86150-30270i199708-199908

main86150-30271i199908-200501

main86150-30280i199708-199908

main86150-30281i199908-200501

main86160-0W050i199708-200501

main86160-0W060i199708-200501

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W080i199708-200501

main86160-0W090i199708-200501

main86160-0W100i199708-200501

main86160-3A320i199708-200501

main86160-3A330i199708-200501

86160YSPEAKER ASSY, REAR NO.2

main86160-0W070i199708-199811

main86160-0W071i199811-200501

9011906122

main90119-06122

9015960303

main90159-60303

9016750024

main90167-50024

9018906197

main90189-06197

10 parts on this diagram · 1 diagram in section

SPEAKER for Toyota ARISTO

This section contains 10 genuine Toyota parts for the SPEAKER system of the Toyota ARISTO. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, FRONT DOOR PANEL & GLASS, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
