Toyota ARISTO — PARTIAL ENGINE ASSEMBLY

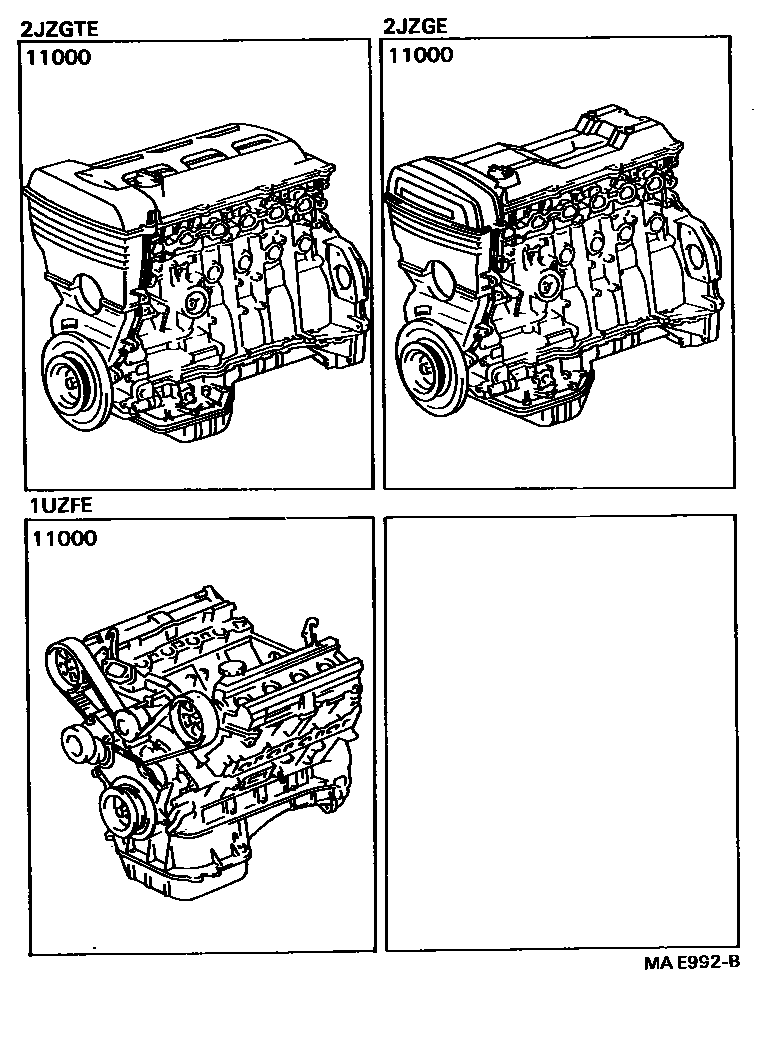

11000ENGINE ASSY, PARTIAL

main19000-46060i2JZGE..JZS147199110-199210

sub87245-3A840

main19000-46061i2JZGE..JZS147199210-199604

main19000-46063i2JZGE..JZS147199604-199708

sub19000-46064

sub90402-16015

sub90430-16012

main19000-46080i2JZGTE..JZS147199110-199210

sub87245-3A840

main19000-46081i2JZGTE..JZS147199210-199604

main19000-46083i2JZGTE..JZS147199604-199708

sub19000-46084

sub90402-16015

sub90430-16012

main19000-50150i1UZFE..UZS143199210-199309

sub90105-10392

sub90105-12274

sub90105-12275

main19000-50151i1UZFE..UZS143199309-199407

main19000-50152i1UZFE..UZS143199407-199408

sub19000-50153

sub90119-10791

sub90919-15444

sub90919-15445

sub90919-15446

sub90919-15447

sub90919-15448

sub90919-15449

sub90919-15450

sub90919-15451

main19000-50154i1UZFE..UZS143199408-199512

main19000-50155i1UZFE..UZS143199512-199708

1 parts on this diagram · 1 diagram in section
