Toyota ARISTO — MOUNTING

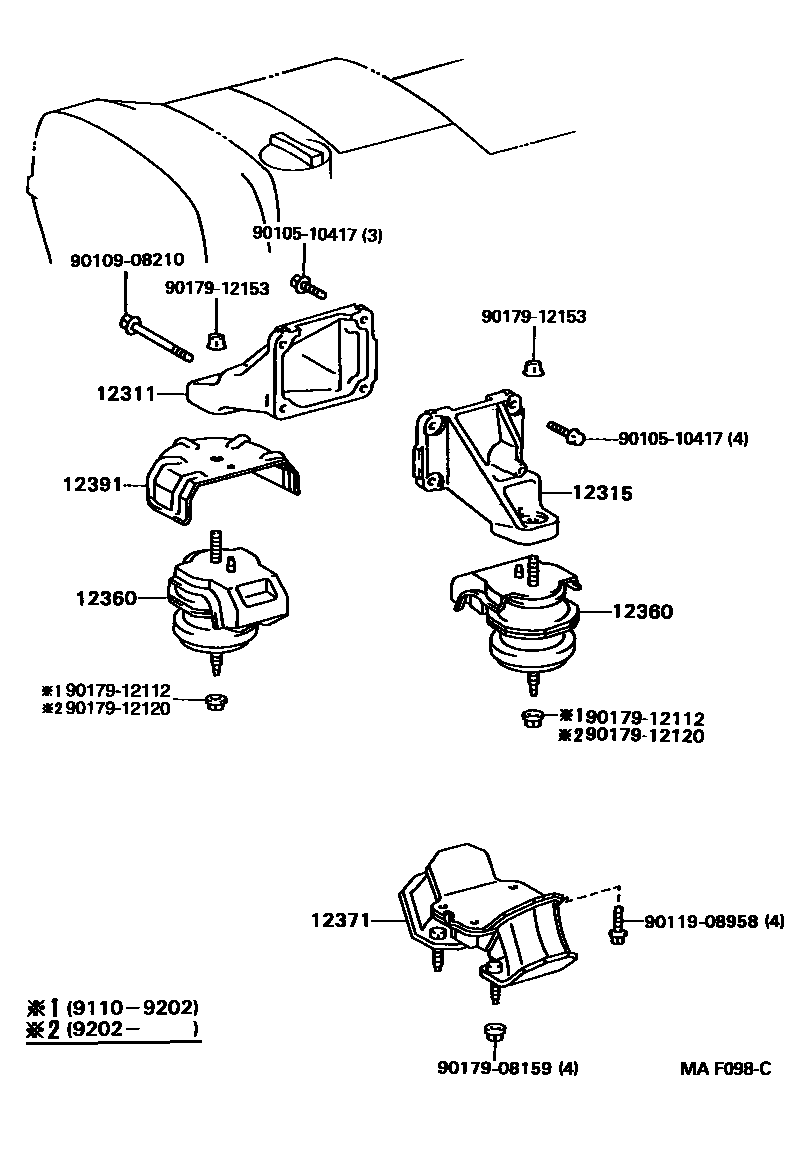

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46070i199110-199708

main12311-50050i199210-199708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46070i199110-199708

main12315-50040i199210-199708

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46040×2i199110-199504

main12360-46130×2i199504-199708

main12360-46140×2i199508-199708

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46050i199110-199708

main12371-50050i199210-199708

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46020i199110-199708

9010510417

main90105-10417

9010908210

main90109-08210

9011908958

main90119-08958

9017908159

main90179-08159

9017912112

main90179-12112

9017912120

main90179-12120

9017912153

main90179-12153

12 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota ARISTO

This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota ARISTO. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR ASSY, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, FRONT.
