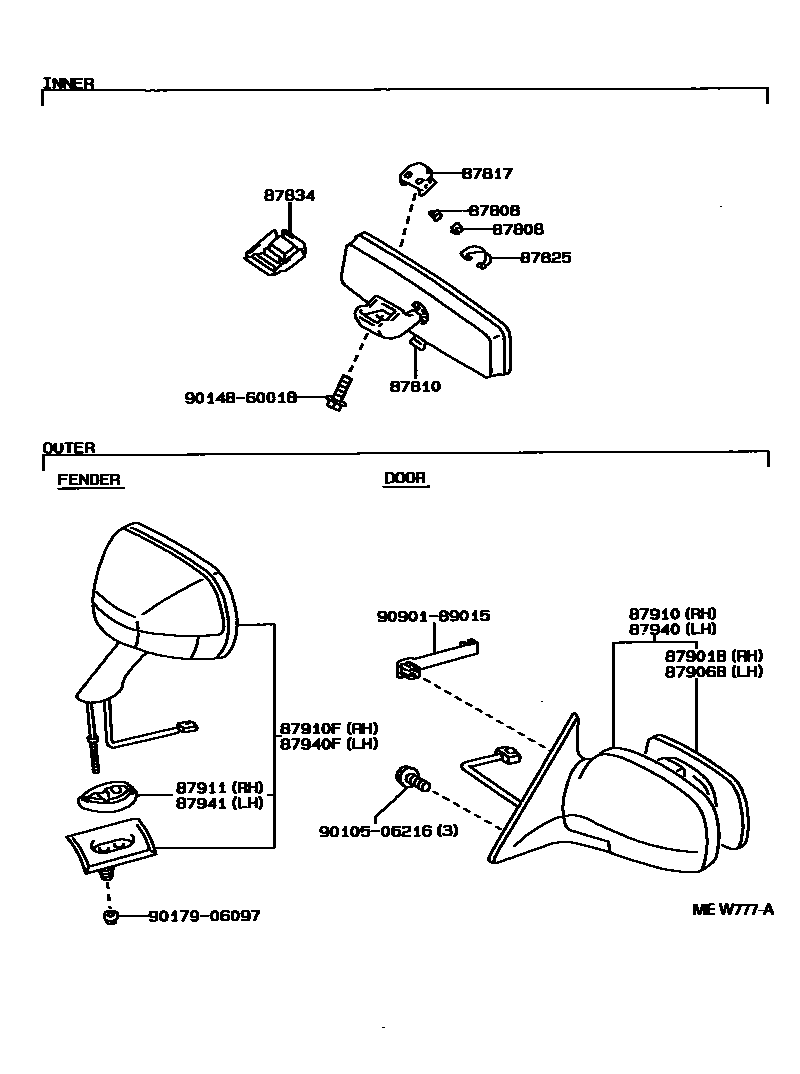

Toyota ARISTO — MIRROR
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LI.GRAY,TRIM1#
LI.SPRUCE,TRIM6#
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WARM GRAY PEARL MICA,046
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
BLACK,202
DK.MAUVE M.I.O,3K8
MIDIUM BEIGE M,4H6
DK.GREEN M.,6K2
BL.GREEN MIO,6M2
GRAYISH GREEN M.M,6N0
DK.BLUE MICA FP,8J5
DK.BLUE MC.,8L1
*88,WARM GRAY PEARL MICA,046
*88,SUPER SILVER 3M,176
*88,DK.BL.GRAY ME,183
*88,BLACK,202
*88,DK.MAUVE M.I.O,3K8
*88,MEDIUM BEIGE M,4H6
*88,DK.GREEN M,6K2
*88,BL.GREEN MIO,6M2
*88,GRAYISH GREEN M.M,6N0
*88,DK.GREEN MC.P.I.O,6N9
*88,DK.BLUE MICA FP,8J5
*88,DK.BLUE MC,8L1
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
*88,WARM GRAY PEARL MICA,046
*88,SU.WHITE PM,051
*88,SUPER SILVER 3M,176
*88,DK.BL.GRAY ME,183
*88,BLACK,202
*88,DK.MAUVE,3K8
*88,MEDIUM BEIGE M,4H6
*88,DK.GREEN M,6K2
*88,BL.GREEN MIO,6M2
*88,GRAYISH GREEN M.M,6N0
*88,DK.GREEN MC.P.I.O,6N9
*88,DK.BLUE MICA FP,8J5
*88,DK.BLUE MC.,8L1
WARM GRAY PEARL MICA,046
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
DK.MAUVE M.I.O,3K8
MEDIUM BEIGE M,4H6
DK.GREEN M,6K2
BL.GREEN MIO,6M2
GRAYISH GREEN M.M,6N0
DK.BLUE MICA FP,8J5
DK.BLUE MC.,8L1
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9010506216
main90105-06216
9014860018
main90148-60018
9017906097
main90179-06097
9090189015
main90901-89015
17 parts on this diagram · 1 diagram in section
MIRROR for Toyota ARISTO
This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota ARISTO. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
