Toyota ARISTO — MIRROR

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010i199708

87810MIRROR ASSY, INNER REAR VIEW

main87810-24040-A0i199708-200501

IVORY,TRIM0#

main87810-24040-B0i199708-200007

MD.CHARCOAL,TRIM1#,22,23,24,25,26

main87810-24040-B0i200007-200501

MD.CHARCOAL,TRIM1#,22,23

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010i199708

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010i199708

87853BASE, INNER REAR VIEW MIRROR

main87853-24020i199708-200307

main87853-24020-C0i200307-200501

BLACK,TRIM0#,1#,22,23

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-3A130i199708-200007

main87931-3A260i200007-200501

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-3A060i199708-200007

main87961-3A170i200007-200501

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-3A130-A0i199708-199908

SU.WHITE PM,051

main87910-3A130-A1i199908-200007

WHITE PEARL CS.,062

main87910-3A130-B0i199708-199908

SILVER ME,199

main87910-3A130-B1i199908-200007

SILVER ME.,1C0

main87910-3A130-C0i199708-200007

BLACK,202

main87910-3A130-D0i199708-200007

RED MC.,3N1

main87910-3A130-G0i199708-200007

DK. GREEN MC.,6Q7

main87910-3A130-J0i199708-200007

DK.BLUE MC.,8L4

main87910-3A130-J1i199808-200007

BLUE MC.,8M6

main87910-3A280-A0i200007-200501

WHITE PEARL CS.,062

main87910-3A280-B0i200007-200501

SILVER ME.,1C0

main87910-3A280-C0i200007-200501

BLACK,202

main87910-3A280-D0i200007-200208

RED MC.,3N1

main87910-3A280-D1i200007-200501

BORDEAUX MC.,3P2

main87910-3A280-G0i200007-200501

DARK GREEN M.M.,6S6

main87910-3A280-J0i200007-200501

DARK BLUE MC.,8P8

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-3A060-A0i199708-199908

SU.WHITE PM,051

main87940-3A060-A1i199908-200007

WHITE PEARL CS.,062

main87940-3A060-B0i199708-199908

SILVER ME,199

main87940-3A060-B1i199908-200007

SILVER ME.,1C0

main87940-3A060-C0i199708-200007

BLACK,202

main87940-3A060-D0i199708-200007

RED MC.,3N1

main87940-3A060-G0i199708-200007

DK. GREEN MC.,6Q7

main87940-3A060-J0i199708-200007

DK.BLUE MC.,8L4

main87940-3A060-J1i199808-200007

BLUE MC.,8M6

main87940-3A190-A0i200007-200501

WHITE PEARL CS.,062

main87940-3A190-B0i200007-200501

SILVER ME.,1C0

main87940-3A190-C0i200007-200501

BLACK,202

main87940-3A190-D0i200007-200208

RED MC.,3N1

main87940-3A190-D1i200007-200501

BORDEAUX MC.,3P2

main87940-3A190-G0i200007-200501

DARK GREEN MC.,6S6

main87940-3A190-J0i200007-200501

DARK BLUE MC.,8P8

9010506216

main90105-06216

9014860018

main90148-60018

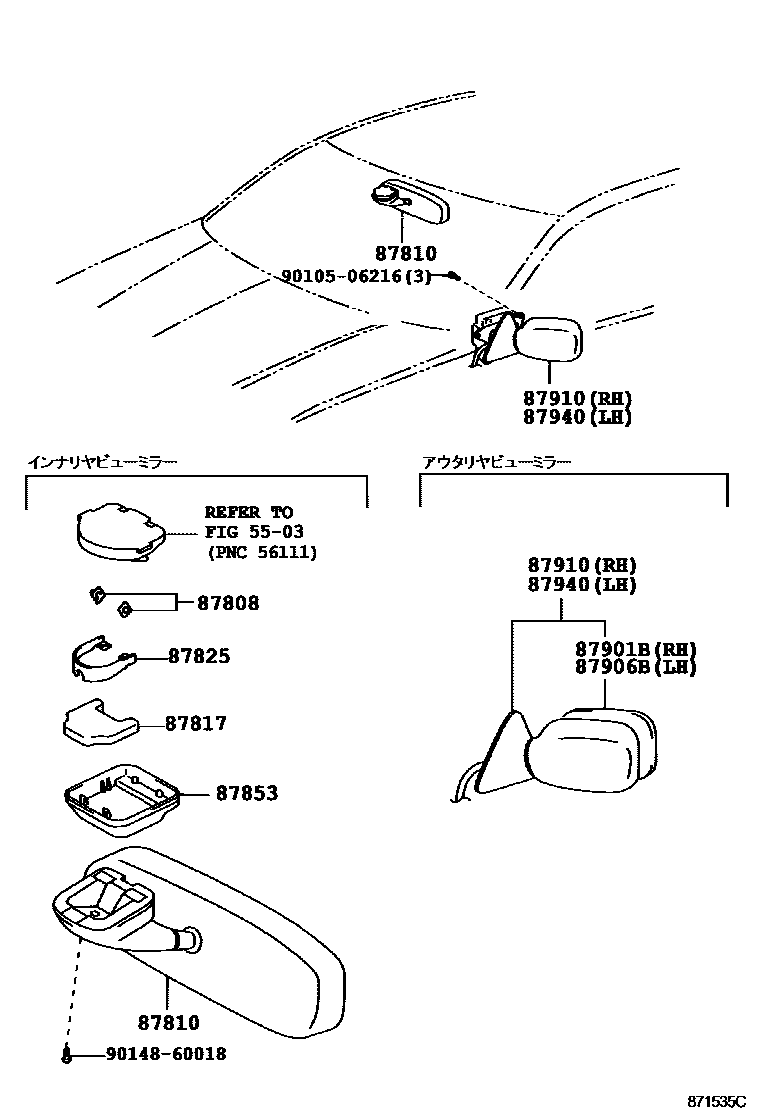

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota ARISTO

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota ARISTO. Key components include: COWL PANEL & WINDSHIELD GLASS, HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING.
