Toyota ARISTO — METER

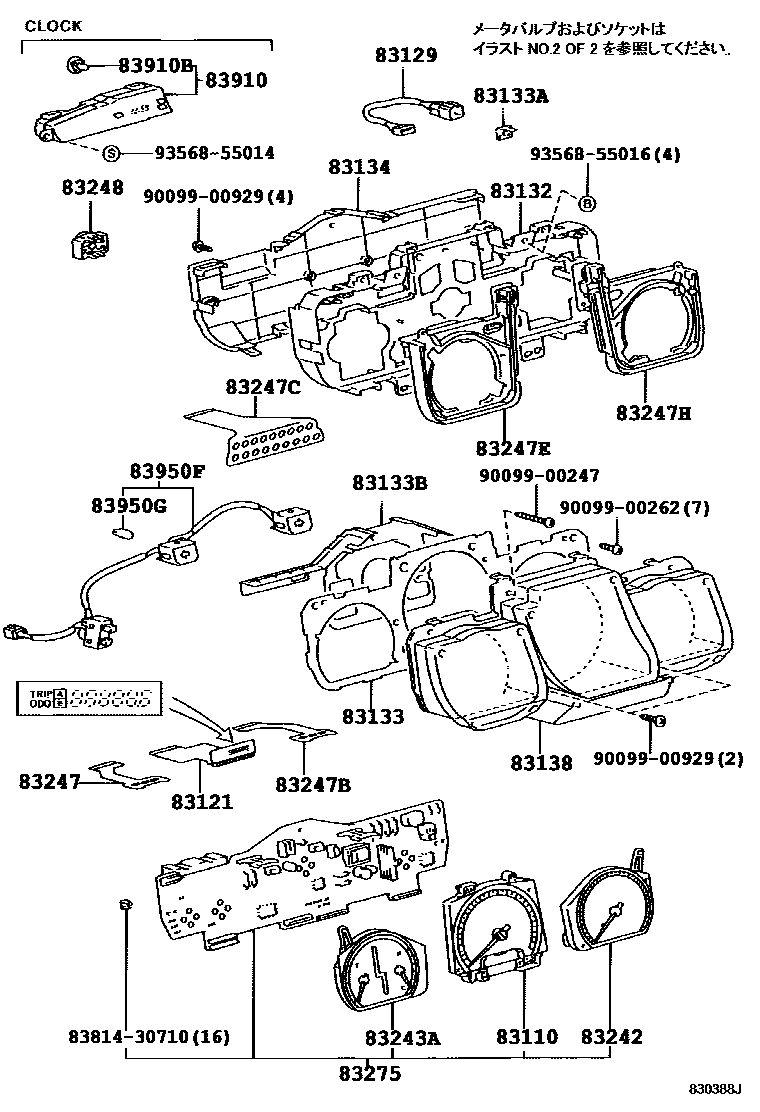

Parts diagram

83110SPEEDOMETER ASSY

main83220-30120i199708-200007

main83220-30180i199708-200007

main83220-30360i200007-200501

83121COUNTER, TOTAL

main83222-30390i199708-200007

main83222-30700i199708

83129WIRE, METER

main83875-30690i199708-199712

main83875-30710i199712

83132CASE, COMBINATION METER

main83841-30700i199708

83133PLATE, COMBINATION METER, NO.1

main83811-30390i199708-200007

main83811-30710i199708-200007

main83811-3A140i200007

83133APLATE, COMBINATION METER, NO.2

main83812-30710i199708

83133BPLATE, COMBINATION METER, NO.3

main83813-30380i199708-199712

83134COVER, COMBINATION METER, NO.1

main83821-30700i199708

83138GLASS, SPEEDOMETER

main83852-30700i199708

83242TACHOMETER ASSY, ENGINE

main83881-30360i199708-200007

main83881-30700i199708-200007

main83881-3A190i200007-200501

main83881-3A200i200007-200501

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-30360i199708-200007

main83882-30700i199708-200501

main83882-3A200i200007-200501

83247PLATE, METER CIRCUIT

main83861-30700i199708

83247BPLATE, METER CIRCUIT, NO.2

main83862-30700i199708

83247CPLATE, MATER CIRCUIT, NO.3

main83863-30700i199708-200007

main83863-3A190i200007

83247EPLATE, MATER CIRCUIT, NO.4

main83864-30710i199708

83247HPLATE, METER CIRCUIT, NO.5

main83865-30710i199708

83248CHIME, SPEED WARNING

main83248-20010i199708

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-30360i199708-200007

main83275-30700i199708-200007

main83801-3A190i200007-200501

main83801-3A200i200007-200501

83910CLOCK ASSY

main83910-30570i199708

83910BBULB, CLOCK INDICATOR

main90010-07009i199708

83950FLAMP ASSY, TELLTALE

main83950-30090i200007

main83950-30100i199708-200007

83950GBULB, TELLTALE LAMP

main84999-50050×2i199708-200501

8381430710

main83814-30710

9009900247

main90099-00247

9009900262

main90099-00262

9009900929

main90099-00929

9356855014

main93568-55014

9356855016

main93568-55016

28 parts on this diagram · 2 diagrams in section
