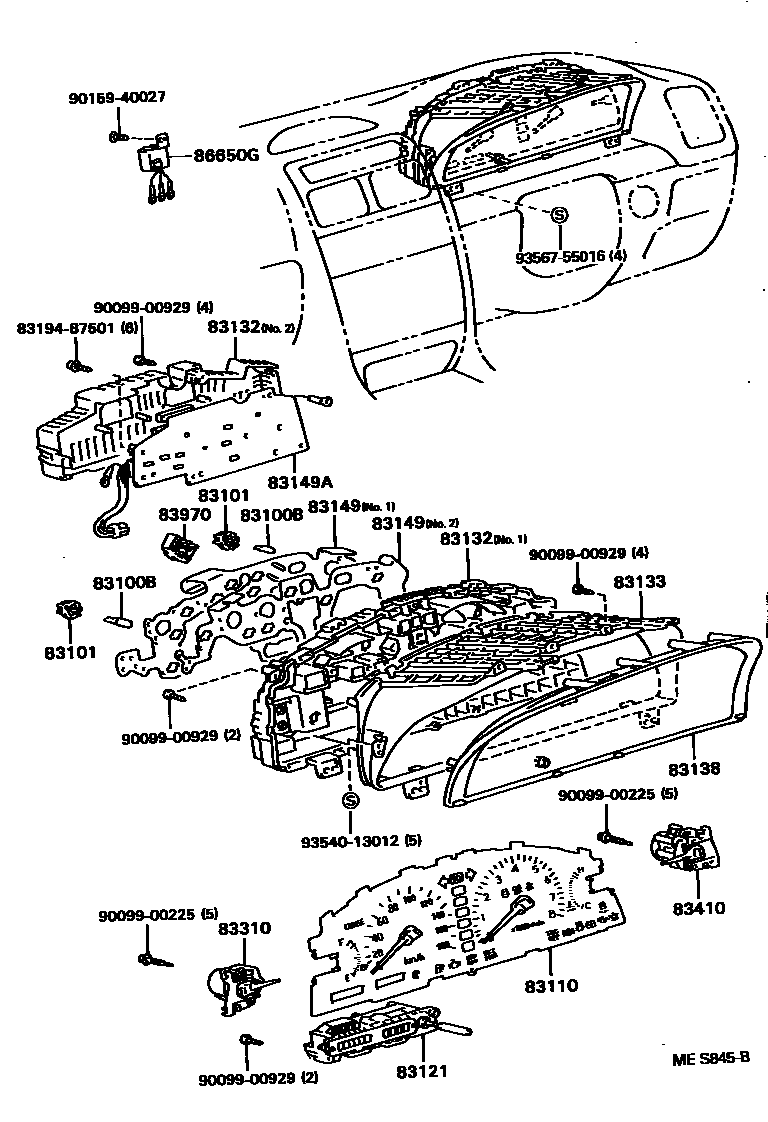

Toyota ARISTO — METER
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB:1.4W
12V 1.4W ,2.0W BULB
14V 3.0W BLUE BULB
14V 3.0W GREEN BULB
BULB:2.0W OR 3.0W
83110SPEEDOMETER ASSY
83121COUNTER, TOTAL
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83149PLATE, METER CIRCUIT
83149APLATE, METER CIRCUIT, NO.2
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83970BUZZER ASSY, REVERSE WARNING
86650GBUZZER ASSY
8319487501
main83194-87501
9009900225
main90099-00225
9009900929
main90099-00929
9015940027
main90159-40027
9354013012
main93540-13012
9356755016
main93567-55016
19 parts on this diagram · 2 diagrams in section
METER for Toyota ARISTO
This section contains 23 genuine Toyota parts for the METER system of the Toyota ARISTO. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, COUNTER, TOTAL, CASE, COMBINATION METER.
