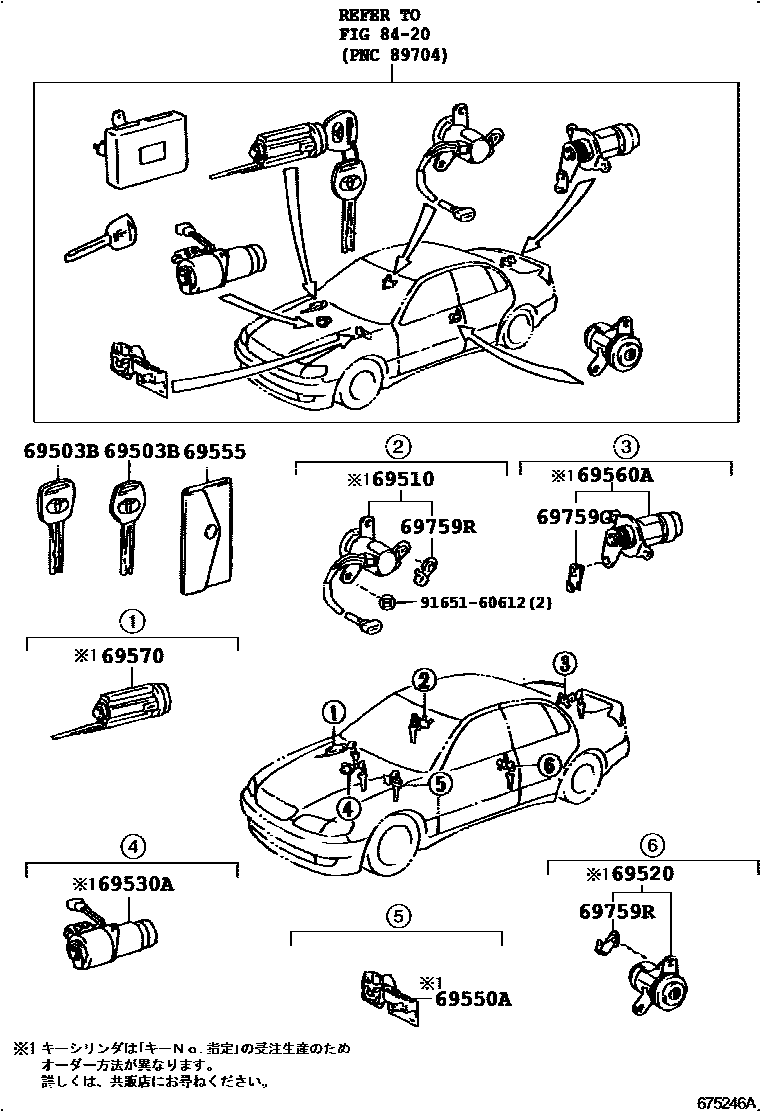

Toyota ARISTO — LOCK CYLINDER SET

69503BKEY, CUT

main69515-24070i199110-199308

main69515-30150i199308-199708

main69516-24020i199110-199308

main69516-30080i199308-199708

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30200i199110-199708

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-30160i199110-199708

69530ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL

main69530-30010i199110-199708

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30100i199110-199708

69555COVER, KEY

main69555-17020i199210-199708

main69555-20030i199110-199210

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30220i199110-199708

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-30160i199110-199708

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i199110-199708

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24100i199110-199708

ORANGE

main69759-24110i199110-199708

PINK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9165160612

main91651-60612

12 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota ARISTO

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota ARISTO. Key components include: KEY, CUT, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH, CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL, CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK.
