Toyota ARISTO — HEATING & AIR CONDITIONING - COMPRESSOR

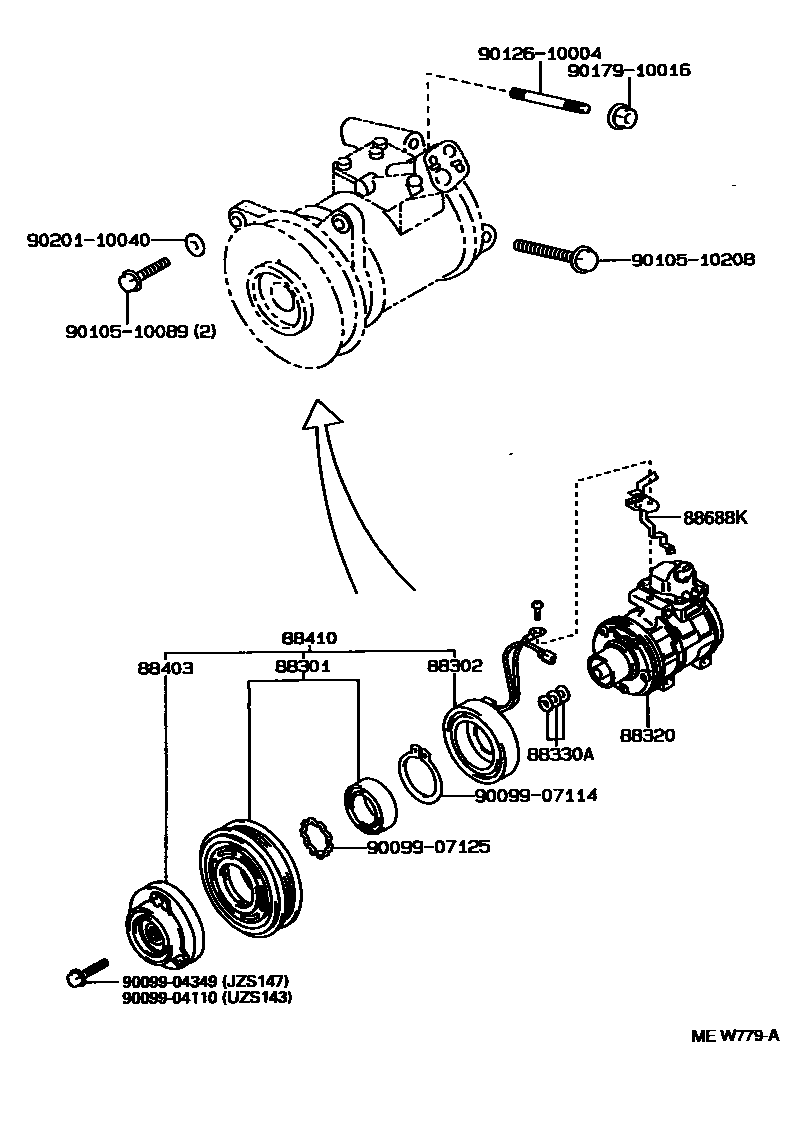

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-30410i199110-199708

main88412-30440i199210-199708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-30540i199110-199408

main88411-3A010i199408-199708

main88411-50030i199210-199708

88320COMPRESSOR ASSY, COOLER

main88320-30650i199110-199301

main88320-30651i199301-199708

main88320-30680i199210-199708

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199110-199708

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-28010i199408-199505

main88403-30290i199110-199408

main88403-3A020i199505-199708

88410CLUTCH ASSY, MAGNET

main88410-30710i199110-199408

main88410-30750i199210-199708

main88410-3A100i199408-199708

88688KBRACKET, COOLER COMPRESSOR

main88688-3A550i199612-199708

9009904110

main90099-04110

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010510089

main90105-10089

9010510208

main90105-10208

9012610004

main90126-10004

9017910016

main90179-10016

9020110040

main90201-10040

16 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota ARISTO

This section contains 16 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota ARISTO. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
