Toyota ARISTO — HEADLAMP

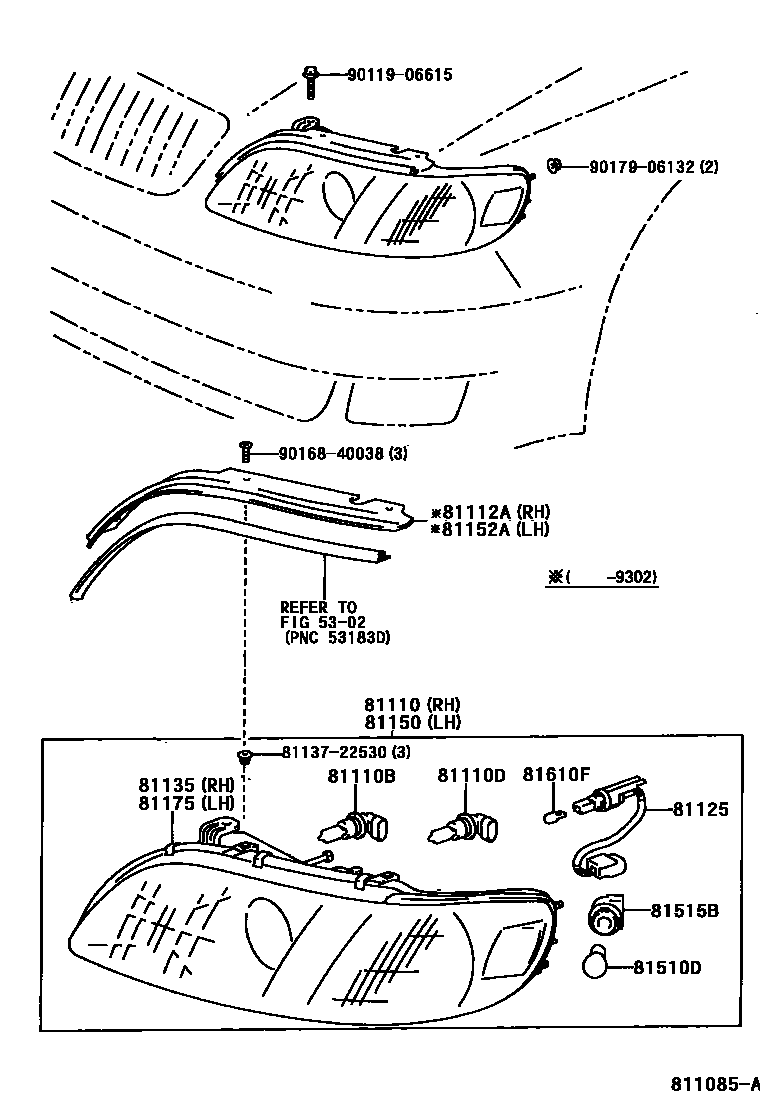

Parts diagram

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

81110HEADLAMP ASSY, RH

main81120-30690i199110-199302

main81120-30692i199302-199306

main81120-30693i199306-199408

main81120-30694i199409-199608

main81120-30695i199608-199708

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13053×2i199110-199708

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13054×2i199110-199708

81112ARIM, HEADLAMP, RH

main81116-30690i199110-199210

main81116-30691i199210-199302

81125CORD, HEADLAMP

main81125-30690×2i199110-199708

81135UNIT ASSY, HEADLAMP, RH

main81130-30690i199110-199408

main81130-30694i199409-199608

main81130-30695i199608-199708

81150HEADLAMP ASSY, LH

main81160-30890i199110-199302

main81160-30892i199302-199306

main81160-30893i199306-199408

main81160-30894i199409-199608

main81160-30895i199608-199708

81152ARIM, HEADLAMP, LH

main81156-30890i199110-199210

main81156-30891i199210-199302

81175UNIT ASSY, HEADLAMP, LH

main81170-30890i199110-199408

main81170-30894i199409-199608

main81170-30895i199608-199708

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2i199110-199708

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99020×2i199110-199708

81610FBULB(FOR CLEARANCE LAMP)

main90981-12023×2i199110-199306

main99132-12050×2i199306-199708

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9011906615

main90119-06615

9016840038

main90168-40038

9017906132

main90179-06132

17 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota ARISTO

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota ARISTO. Key components include: HOOD & FRONT FENDER, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), RIM, HEADLAMP, RH.
