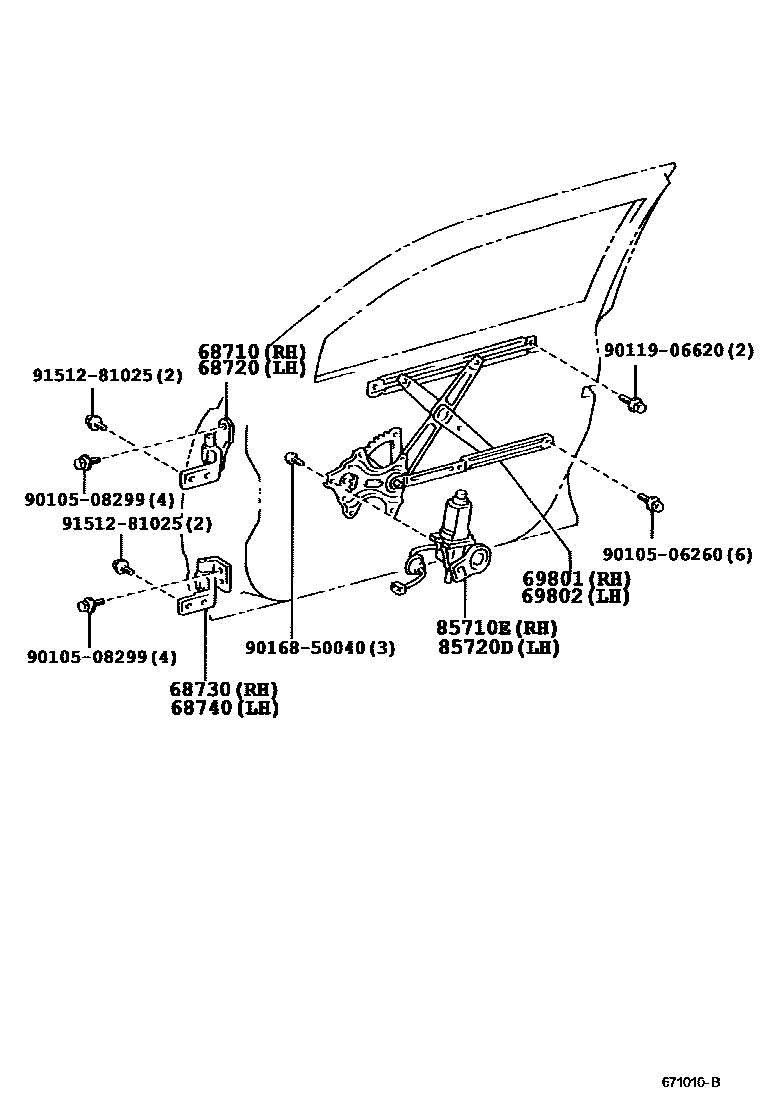

Toyota ARISTO — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30170i199708-200501

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30090i199708-200501

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30140i199708-200501

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-30140i199708-200501

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30240i199708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30240i199708

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30340i199708

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30280i199708

9010506260

main90105-06260

9010508299

main90105-08299

9011906620

main90119-06620

9016850040

main90168-50040

9151281025

main91512-81025

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota ARISTO

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota ARISTO. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
