Toyota ARISTO — FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23
BLACK,TRIM22,23,24,25,26
SANDAL WOOD,TRIM0#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
BLACK,TRIM22,23
SANDAL WOOD,TRIM0#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SU.WHITE PM,051
WHITE PEARL CS.,062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
BORDEAUX MC.,3P2
DK. GREEN MC.,6Q7
DARK GREEN MC.,6S6
DK.BLUE MC.,8L4
BLUE MC.,8M6
DARK BLUE MC.,8P8
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SU.WHITE PM,051
WHITE PEARL CS.,062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
BORDEAUX MC.,3P2
DK. GREEN MC.,6Q7
DARK GREEN MC.,6S6
DK.BLUE MC.,8L4
BLUE MC.,8M6
DARK BLUE MC.,8P8
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
BLACK,TRIM22,23
SANDAL WOOD,TRIM0#
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
DK.CHARCOAL,TRIM1#
BLACK,TRIM22,23
BLACK,TRIM22,23,24,25,26
SANDAL WOOD,TRIM0#
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
7401ARMREST & VISOR
6929312030HANDLE, BACK DOOR
main69293-12030
6929312040HANDLE, BACK DOOR
main69293-12040
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9054104014
main90541-04014
9165140612
main91651-40612
9356855014
main93568-55014

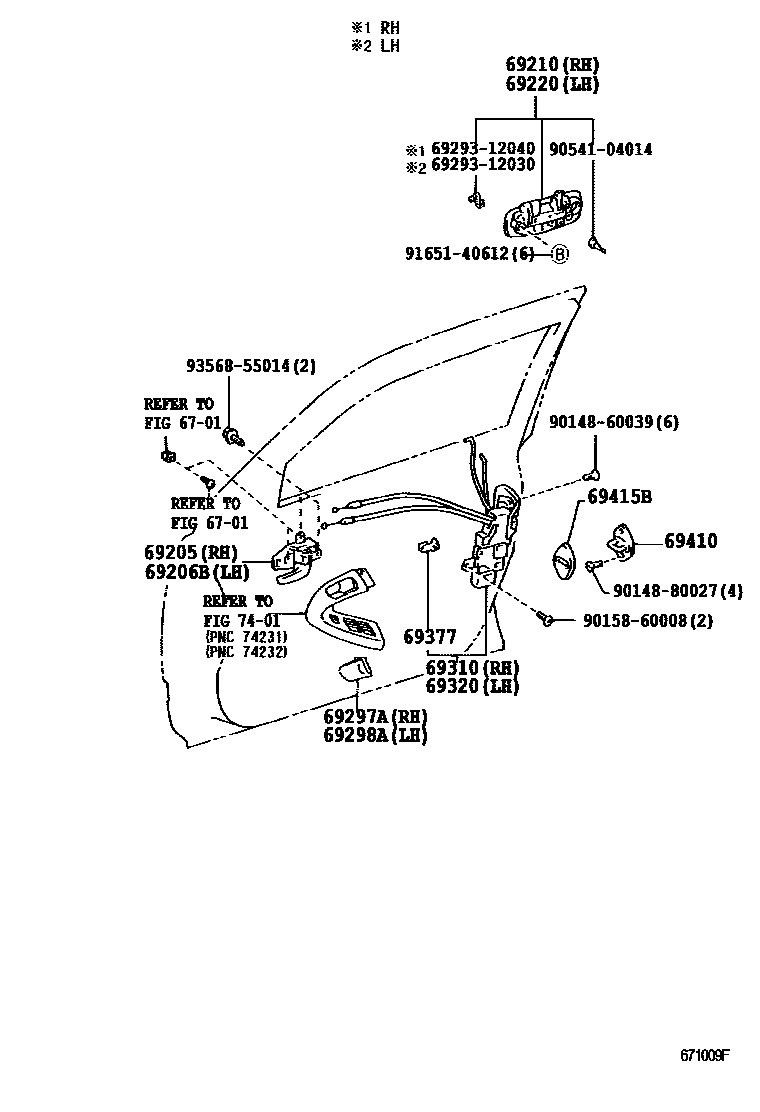

21 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota ARISTO
This section contains 21 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota ARISTO. Key components include: FRONT DOOR PANEL & GLASS, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
