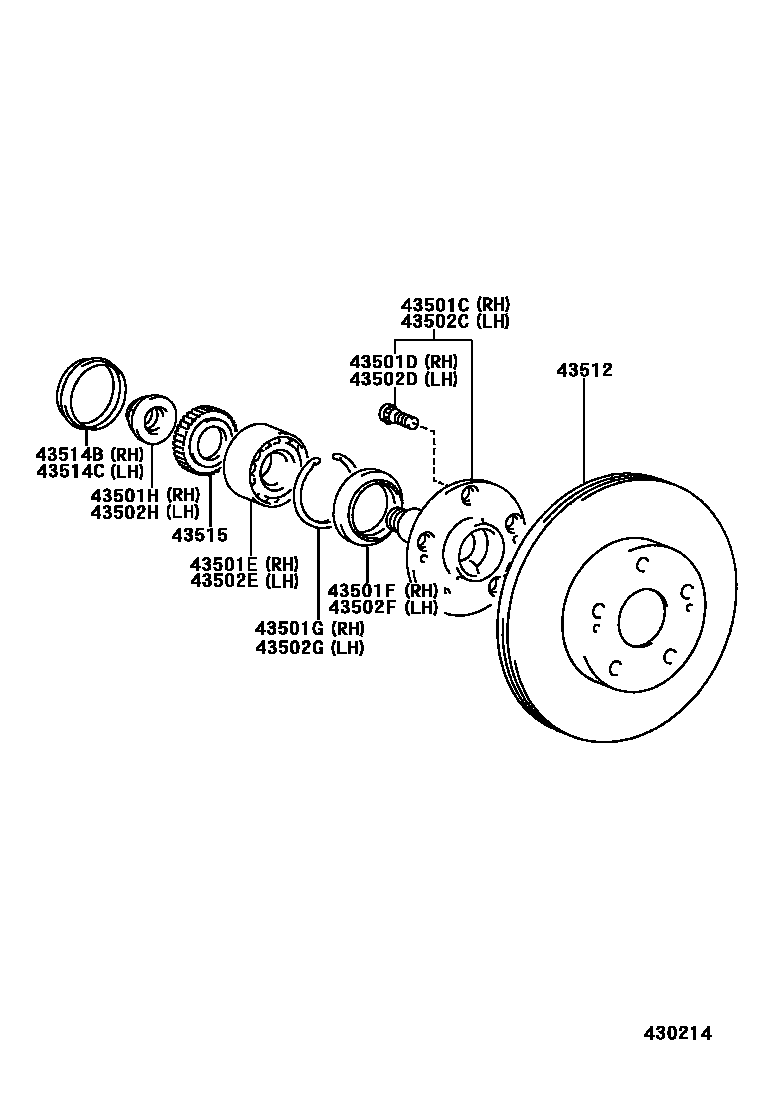

Toyota ARISTO — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-30140i199708

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070i199708

43501EBEARING (FOR FRONT AXLE HUB RH)

main90903-63006i199708

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50008i199708

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i199708

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-24005i199708

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-30140i199708

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070i199708

43502EBEARING (FOR FRONT AXLE HUB LH)

main90903-63006i199708

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50008i199708

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i199708

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-24005i199708

43512DISC, FRONT

main43512-30180i200007-200202

main43512-30181i200202-200501

main43512-30300i200208-200303

main43512-50100i199708-200007

main43512-50112i200011-200103

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010i199708

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010i199708

43515ROTOR, SKID CONTROL, FRONT

main43515-24010i199708-199909

main43515-30020i199909-200501

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota ARISTO

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota ARISTO. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), SEAL, OIL (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
