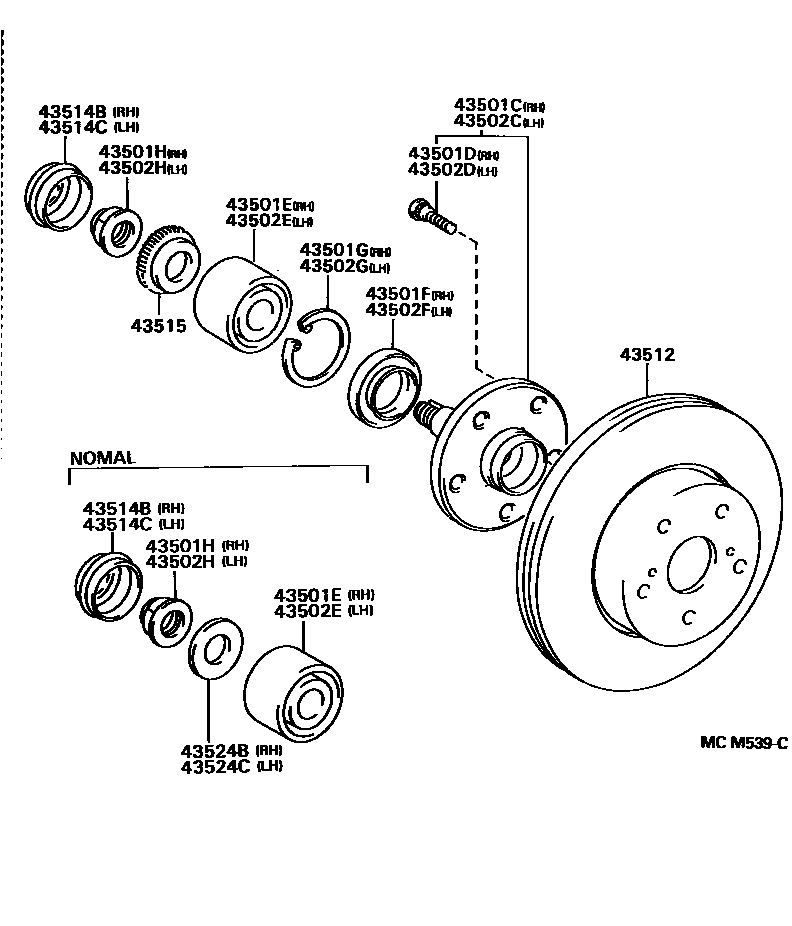

Toyota ARISTO — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-30140i199110-199708

main43502-30150i199210-199708

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i199110-199708

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-35034i199110-199312

main90369-43008i199210-199708

main90903-63006i199312-199708

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50008i199110-199708

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i199110-199708

main90521-88001i199210-199708

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22020i199210-199708

main90179-24005i199110-199708

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-30140i199110-199708

main43502-30150i199210-199708

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i199110-199708

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-35034i199110-199312

main90369-43008i199210-199708

main90903-63006i199312-199708

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50008i199110-199708

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i199110-199708

main90521-88001i199210-199708

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22020i199210-199708

main90179-24005i199110-199708

43512DISC, FRONT

main43512-30210×2i199210-199708

main43512-30240×2i199110-199207

main43512-30241×2i199207-199303

main43512-30250×2i199110-199210

main43512-50090×2i199210-199303

main43512-50100×2i199303-199708

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-50010i199110-199708

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-50010i199110-199708

43515ROTOR, SKID CONTROL, FRONT

main43515-24010×2i199110-199508

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-24010i199210-199708

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-24010i199210-199708

18 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota ARISTO

This section contains 23 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota ARISTO. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
