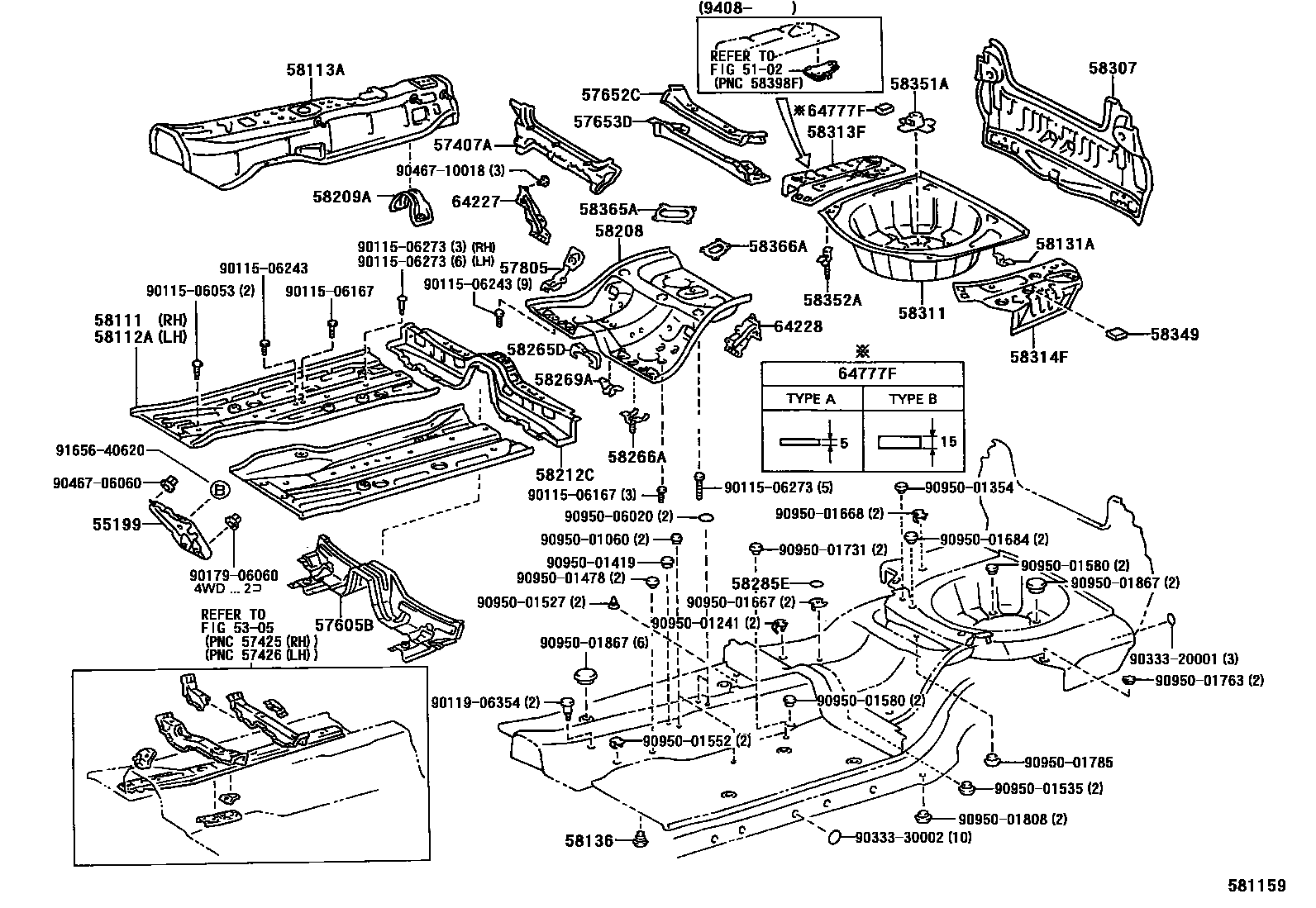

Toyota ARISTO — FLOOR PAN & LOWER BACK PANEL

5102

5305

55199COVER, DASH PANEL COMPUTER

main55199-30010iJZS147199110-199708

main55199-30020iUZS143199210-199708

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-30080iJZS147,UZS143199110-199708

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-30040iJZS147,UZS143199110-199708

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-24900iJZS147199110-199210

main57652-30901iJZS147,UZS143199210-199708

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-30900iJZS147,UZS143199110-199708

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-30010iJZS147,UZS143199110-199708

main57806-30010iJZS147,UZS143199110-199708

58111PAN, FRONT FLOOR

main58111-30900iJZS147199110-199708

main58111-30901iUZS143199210-199408

main58111-30905iJZS147199308-199708

main58111-30906iUZS143199408-199708

58112APANEL, FRONT FLOOR, LH

main58112-30900iJZS147199110-199708

main58112-30901iUZS143199210-199408

main58112-30905iJZS147199308-199708

main58112-30906iUZS143199408-199708

58113APANEL, FRONT FLOOR, CENTER

main58014-30010iJZS147199110-199508

sub33555-30280

main58014-30011iJZS147199508-199609

sub90950-06001

main58014-30012iJZS147199609-199708

main58014-30020iUZS143199210-199508

sub33555-30300

main58014-30021iUZS143199508-199704

main58014-30022iUZS143199704-199708

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-24010×4iJZS147,UZS143199110-199708

58136COVER, FRONT FLOOR HOLE

main58136-30020×2iJZS147,UZS143199110-199708

58208PAN, CENTER FLOOR

main58211-30901iJZS147,UZS143199110-199708

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-50010iJZS147,UZS143199110-199708

58212CPAN, CENTER FLOOR, FRONT

main58202-30100iJZS147,UZS143199508-199708

main58212-30050iJZS147,UZS143199110-199508

58265DBRACKET, PARKING BRAKE CABLE GUIDE, NO.2

main58265-30040iJZS147,UZS143199110-199708

58266ABRACKET, FUEL TUBE CLAMP

main58266-30070×2iJZS147,UZS143199110-199708

58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3

main58269-30120iJZS147,UZS143199110-199708

58285ECOVER, CENTER FLOOR HOLE

main58285-50010×2iJZS147,UZS143199110-199708

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30550iJZS147,UZS143199110-199408

main58307-30660iJZS147,UZS143199408-199708

58311PAN, REAR FLOOR

main58311-24020iJZS147,UZS143199110-199708

sub58311-24021

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main57603-30900iJZS147,UZS143199110-199512

sub90119-12247

main57603-30901iJZS147,UZS143199508-199708

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main57604-30900iJZS147,UZS143199110-199708

58349CUSHION, REAR FLOOR SIDE

main58349-30010iJZS147,UZS143199508-199708

58351ABRACKET, SPARE WHEEL CARRIER

main58351-50010iJZS147,UZS143199110-199708

58352ABRACKET, REAR FLOOR STAY

main58352-24010iJZS147,UZS143199110-199708

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-30040iJZS147,UZS143199110-199708

58366ABRACKET, FUEL TANK SUPPORT, LH

main58366-30040iJZS147,UZS143199110-199708

64227EXTENSION, CENTER FLOOR TO BRACE

main64227-30050iJZS147,UZS143199110-199708

64228EXTENSION, CENTER FLOOR TO BRACE, NO.2

main64228-30030iJZS147,UZS143199110-199708

64777FCUSHION, SPARE WHEEL

main64777-24020×4iJZS147,UZS143..Q,Z199110-199301

main64777-24040×4iJZS147..Q199110-199301

225/55R16 7.5JJ AL

9011506053

main90115-06053

9011506167

main90115-06167

9011506243

main90115-06243

9011506273

main90115-06273

9011906354

main90119-06354

9017906060

main90179-06060

9033320001

main90333-20001

9033330002

main90333-30002

9046706060

main90467-06060

9046710018

main90467-10018

9095001060

main90950-01060

9095001241

main90950-01241

9095001354

main90950-01354

9095001419

main90950-01419

9095001478

main90950-01478

9095001527

main90950-01527

9095001535

main90950-01535

9095001552

main90950-01552

9095001580

main90950-01580

9095001667

main90950-01667

9095001668

main90950-01668

9095001684

main90950-01684

9095001731

main90950-01731

9095001763

main90950-01763

9095001785

main90950-01785

9095001808

main90950-01808

9095001867

main90950-01867

9095006020

main90950-06020

9165640620

main91656-40620

61 parts on this diagram · 1 diagram in section
