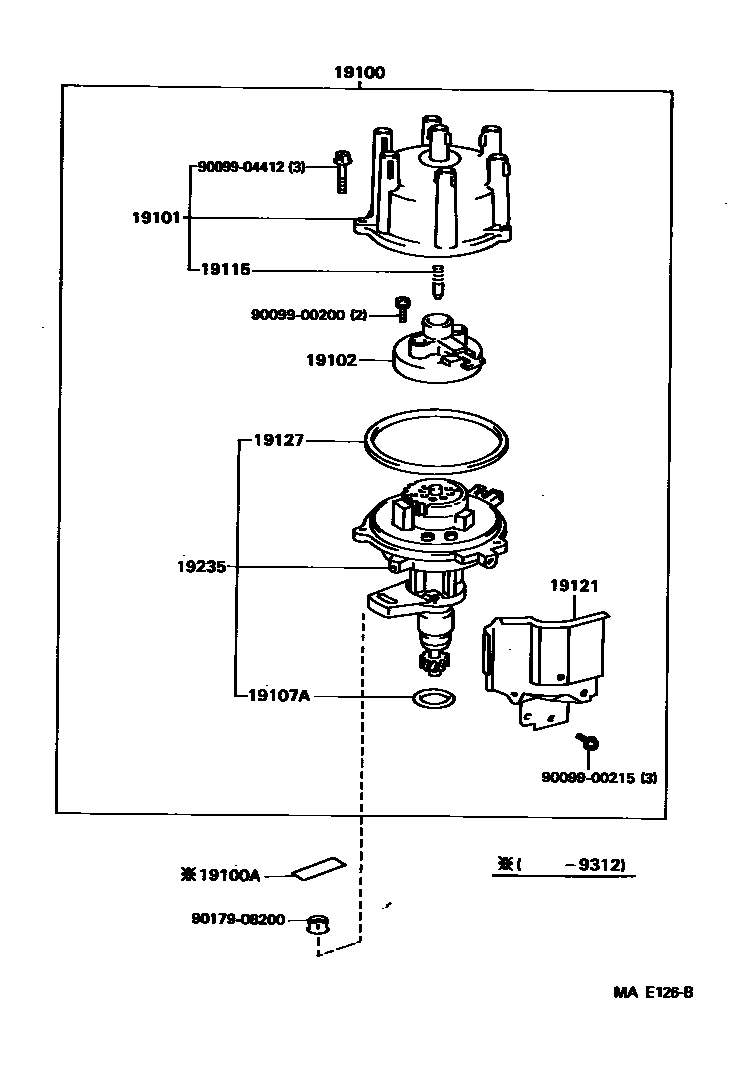

Toyota ARISTO — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-46011i2JZGE..JZS147199110-199708

19100ATAPE, SEALING

main90919-24004i2JZGE..JZS147199110-199312

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-46020i2JZGE..JZS147199110-199405

main19101-46030i2JZGE..JZS147199405-199406

main19101-50020×2i1UZFE..UZS143199210-199708

main19101-70020i2JZGE..JZS147199406-199708

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-46011i2JZGE..JZS147199110-199708

main19102-50020×2i1UZFE..UZS143199210-199708

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14109i2JZGE..JZS147199110-199708

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010×2i1UZFE..UZS143199210-199708

main19115-88280i2JZGE..JZS147199110-199708

19121COVER, DUST PROOF

main19121-46010i2JZGE..JZS147199110-199708

19127PACKING, DUST PROOF

main19127-61240i2JZGE..JZS147199110-199708

19235HOUSING, DISTRIBUTOR

main19235-46010i2JZGE..JZS147199110-199708

9009900200

main90099-00200

9009900215

main90099-00215

9009904412

main90099-04412

9017908200

main90179-08200

13 parts on this diagram · 2 diagrams in section
