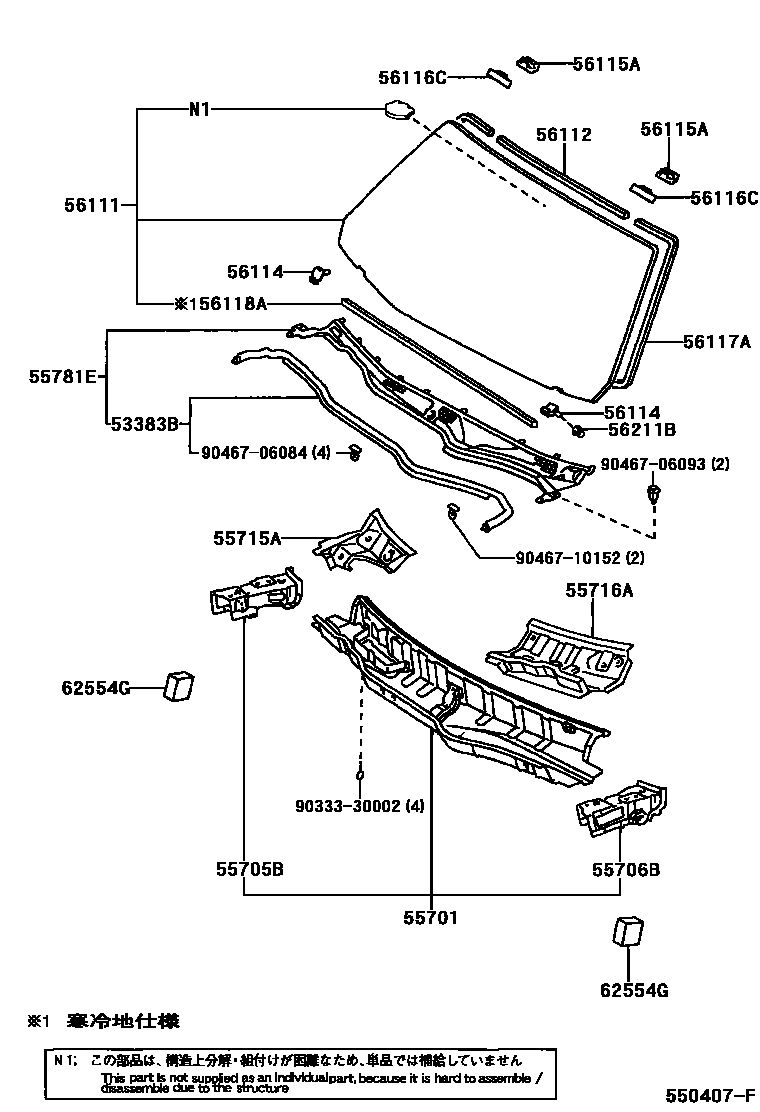

Toyota ARISTO — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-30150iJZS16#199708-200308

main53383-30151iJZS16#200308

55701PANEL SUB-ASSY, COWL

main55700-3A080iJZS16#199708-200501

main55700-3A100iJZS16#199708-200501

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30040iJZS16#199708

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30050iJZS16#199708

55715ABRACE, COWL TOP TO APRON, RH

main55715-30080iJZS16#199708

55716ABRACE, COWL TOP TO APRON, LH

main55716-30100iJZS16#199708

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30030iJZS16#199708-200308

main55708-30031iJZS16#200308

main55708-30040iJZS16#199708-200308

main55708-30041iJZS16#200308

56111GLASS, WINDSHIELD

main56101-30600iJZS16#199708-200007

main56101-30601iJZS16#200212

main56101-30720iJZS16#200007-200208

main56111-3A350iJZS16#199708-200007

main56111-3A351iJZS16#200212

main56111-3A480iJZS16#200007-200208

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main56112-30040iJZS16#199708-200206

main56118-44020iJZS16#200206

sub56118-50050

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iJZS16#199708

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iJZS16#199708

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iJZS16#199708

56117ADAM, WINDOW GLASS ADHESIVE

main56117-30280×2iJZS16#199708

sub64813-52010

main56117-44030iJZS16#199708

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-30050iJZS16#199708

sub56117-50140

56211BCUSHION, WINDSHIELD

main56211-30010iJZS16#199911

62554GPAD, PILLAR, NO.4

main62554-30010×2iJZS16#199708

9033330002

main90333-30002

9046706084

main90467-06084

9046706093

main90467-06093

9046710152

main90467-10152

20 parts on this diagram · 1 diagram in section
