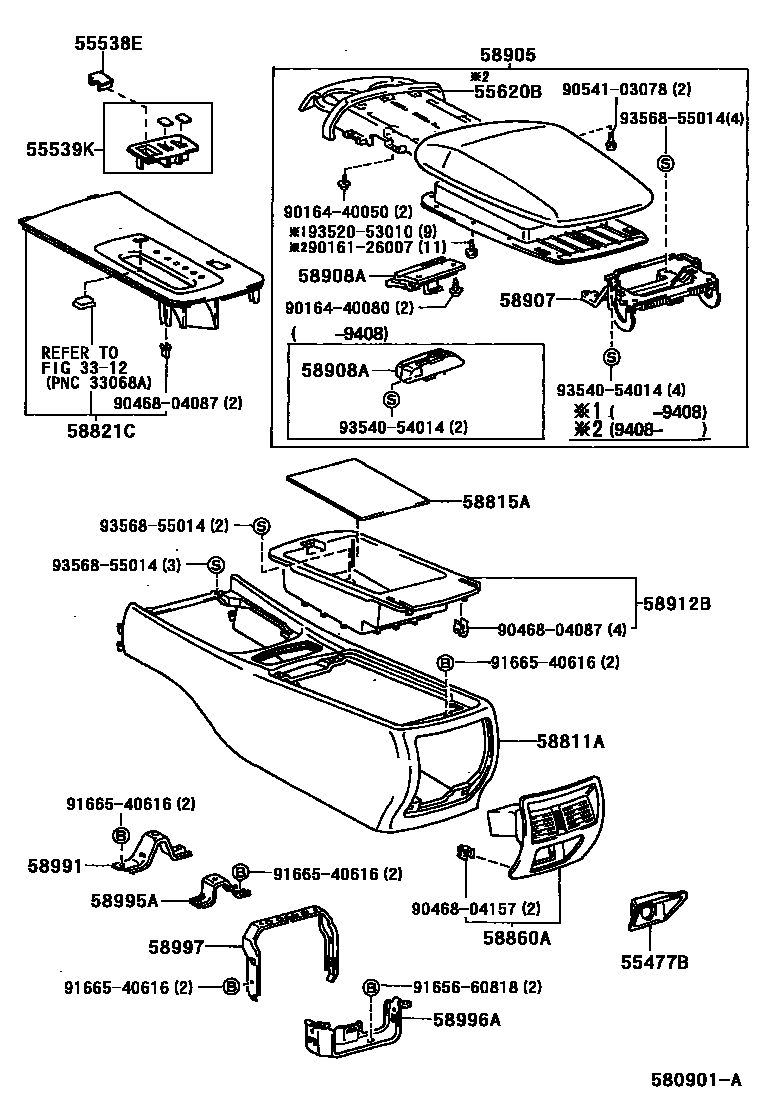

Toyota ARISTO — CONSOLE BOX & BRACKET
3312
55477BBEZEL, CIGARETTE LIGHTER HOLE
55538ECOVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
55539KCOVER, SPARE SWITCH HOLE
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
55620BHOLDER, INSTRUMENT PANEL CUP
IVORY,TRIM0#
MD.GRAY,TRIM1#
SPRUCE,TRIM6#
58811ABOX, CONSOLE, FRONT
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
58860AREGISTER ASSY, CONSOLE BOX
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
58912BBOX, REAR CONSOLE, LOWER
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9016126007
main90161-26007
9016440050
main90164-40050
9016440080
main90164-40080
9046804087
main90468-04087
9046804157
main90468-04157
9054103078
main90541-03078
9165660818
main91656-60818
9166540616
main91665-40616
9352053010
main93520-53010
9354054014
main93540-54014
9356855014
main93568-55014
28 parts on this diagram · 1 diagram in section
