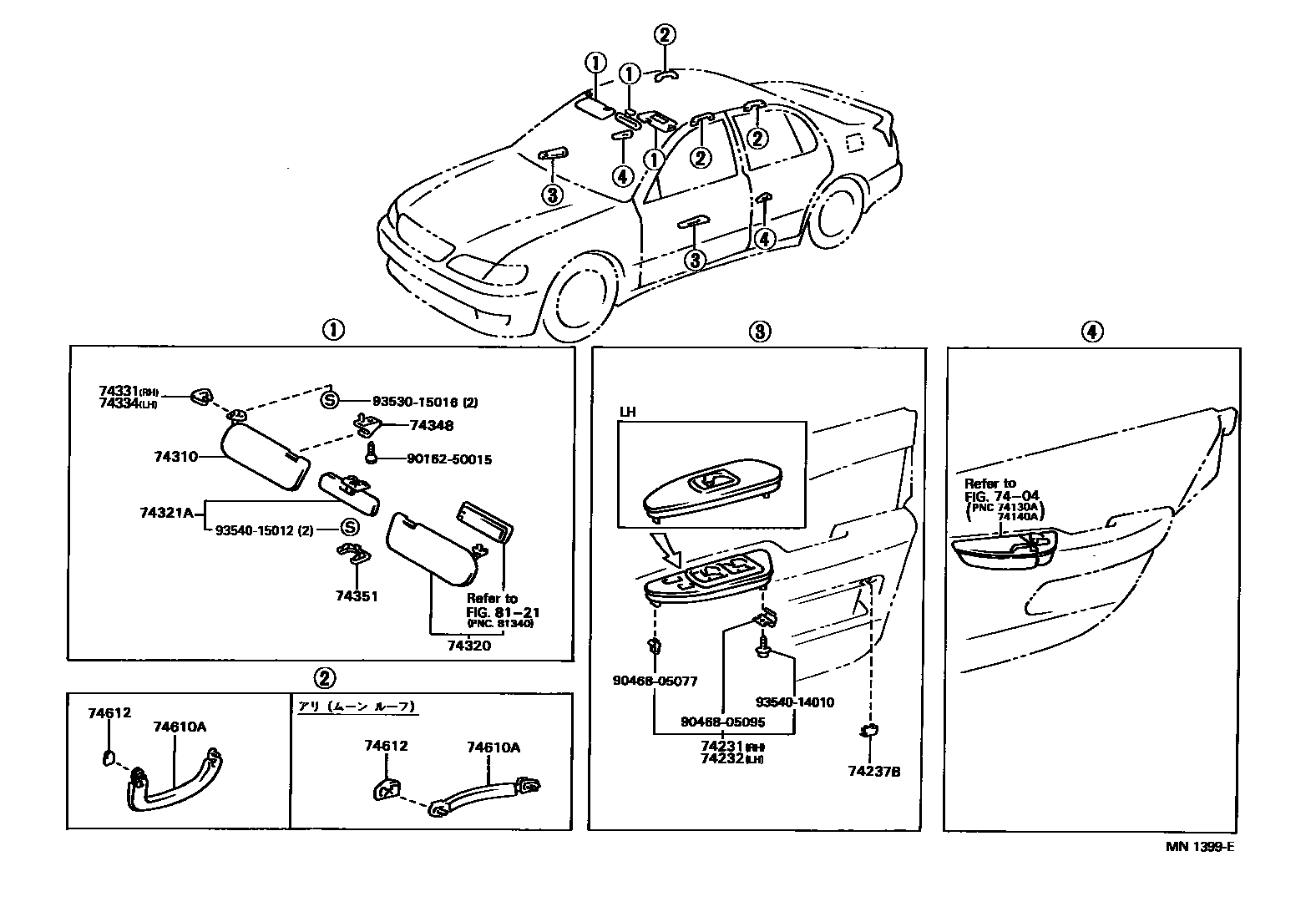

Toyota ARISTO — ARMREST & VISOR

7404ASH RECEPTACLE

→ Go to FIG 74-04

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-30030i199110-199708

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74240-30030i199110-199708

74237BCAP, DOOR ARMREST BASE

main74237-30020-A0×2i199110-199508

IVORY,TRIM0#

main74237-30020-B5×2i199110-199508

GRAY,TRIM1#

main74237-30020-G0×2i199110-199508

LI.SPRUCE,TRIM6#

74310VISOR ASSY, RH

main74310-30670-A0i199110-199508

IVORY,TRIM0#

main74310-30670-B0i199110-199508

SHADOW GRAY,TRIM1#

main74310-30670-G0i199110-199508

LI.SPRUCE,TRIM6#

main74310-30671-A0i199508-199608

IVORY,TRIM0#

main74310-30671-B0i199508-199608

MD.GRAY,TRIM1#

main74310-30671-G0i199508-199608

SPRUCE,TRIM6#

main74310-30672-A0i199608-199708

IVORY,TRIM0#

main74310-30672-B0i199608-199708

MD. GRAY,TRIM1#

main74310-30672-G0i199608-199708

SPRUCE,TRIM6#

74320VISOR ASSY, LH

main74320-30570-A0i199110-199508

IVORY,TRIM0#

main74320-30570-B0i199110-199508

SHADOW GRAY,TRIM1#

main74320-30570-G0i199110-199508

LI.SPRUCE,TRIM6#

main74320-30571-A0i199508-199608

IVORY,TRIM0#

main74320-30571-B0i199508-199608

MD.GRAY,TRIM1#

main74320-30571-G0i199508-199608

SPRUCE,TRIM6#

main74320-30572-A0i199608-199708

IVORY,TRIM0#

main74320-30572-B0i199608-199708

MD. GRAY,TRIM1#

main74320-30572-G0i199608-199708

SPRUCE,TRIM6#

74321AVISOR, FRONT

main74330-30010-A0i199110-199708

IVORY,TRIM0#

main74330-30010-B0i199110-199708

SHADOW GRAY,TRIM1#

main74330-30010-G0i199110-199708

LI.SPRUCE,TRIM6#

74331CASE, VISOR ARM, RH

main74317-30010-A0i199110-199708

IVORY,TRIM0#

main74317-30010-B0i199110-199708

LI.GRAY,TRIM1#

main74317-30010-G0i199110-199708

LI.SPRUCE,TRIM6#

74334CASE, VISOR ARM, LH

main74317-30010-A0i199110-199708

IVORY,TRIM0#

main74317-30010-B0i199110-199708

LI.GRAY,TRIM1#

main74317-30010-G0i199110-199708

LI.SPRUCE,TRIM6#

74348HOLDER, VISOR

main74348-30010-A0×2i199110-199708

IVORY,TRIM0#

main74348-30010-B0×2i199110-199708

LI.GRAY,TRIM1#

main74348-30010-G0×2i199110-199708

LI.SPRUCE,TRIM6#

74351COVER, VISOR SET HOLE

main74351-30150-A0i199110-199708

IVORY,TRIM0#

main74351-30150-B0i199110-199708

LI.GRAY,TRIM1#

main74351-30150-G0i199110-199708

LI.SPRUCE,TRIM6#

74610AGRIP SUB-ASSY, ASSIST

main74610-30120-A0×3i199110-199708

IVORY,TRIM0#

main74610-30120-B0×3i199110-199708

LI.GRAY,TRIM1#

main74610-30120-G0×3i199110-199708

LI.SPRUCE,TRIM6#

main74610-30160-A0×3i199308-199708

main74610-30160-B0×3i199110-199308

main74610-30160-G0×3i199110-199308

74612COVER, ASSIST GRIP

main74612-22050-A1×6i199110-199211

main74612-22050-B1×6i199110-199211

main74612-22050-G0×6i199110-199211

main74612-30140-A0×6i199110-199708

IVORY,TRIM0#

main74612-30140-B0×6i199110-199708

LI.GRAY,TRIM1#

main74612-30140-G0×6i199110-199708

LI.SUPRUCE,TRIM6#

main74612-30150-A0×6i199308-199708

main74612-30150-B0×6i199211-199308

main74612-30150-G0×6i199308-199708

8121INTERIOR LAMP

→ Go to FIG 81-21

9016250015

main90162-50015

9046805077

main90468-05077

9046805095

main90468-05095

9353015016

main93530-15016

9354014010

main93540-14010

9354015012

main93540-15012

20 parts on this diagram · 1 diagram in section
