Toyota ARISTO — ANTENNA

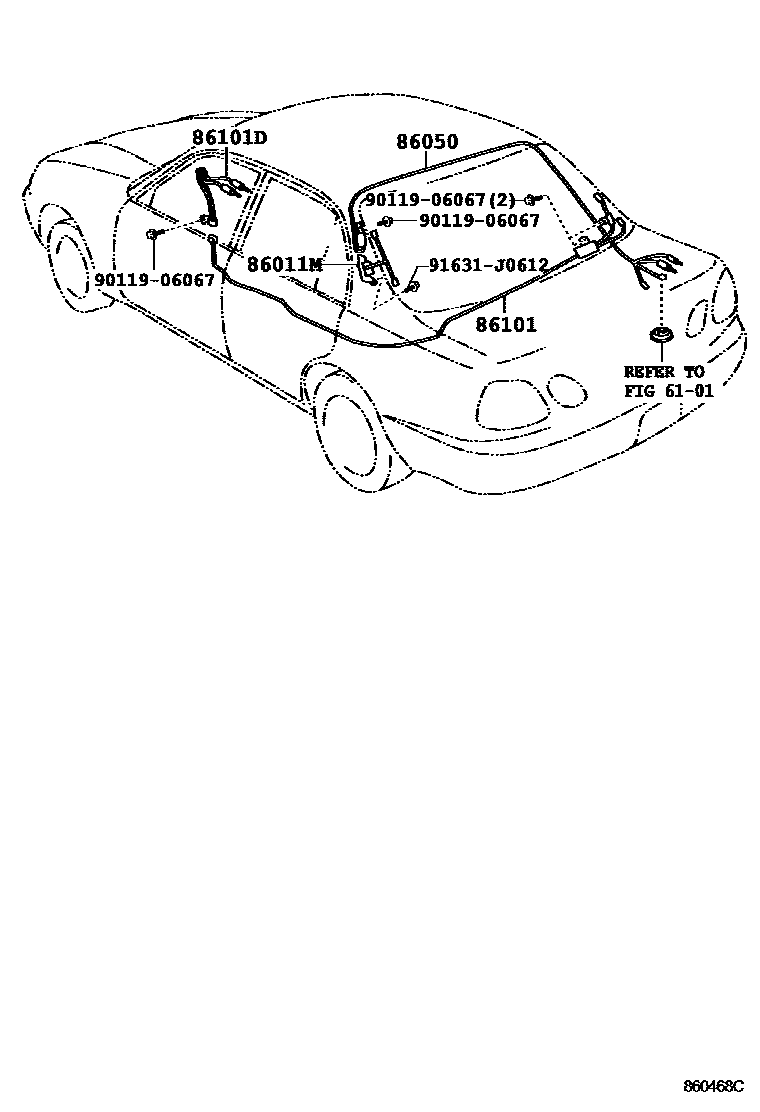

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

86011MFILTER, NOISE

main90980-05315i199708-200501

86050ANTENNA ASSY, TELEVISION

main86050-30060i199708-199908

main86050-30090i199908

86101CORD SUB-ASSY, ANTENNA

main86101-30650i199708-199808

main86101-30651i199808-200501

main86101-30830i199908-200208

main86101-30860i200208-200501

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30740i199708-200501

9011906067

main90119-06067

91631J0612

main91631-J0612

7 parts on this diagram · 1 diagram in section

ANTENNA for Toyota ARISTO

This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota ARISTO. Key components include: SIDE MEMBER, FILTER, NOISE, ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3.
