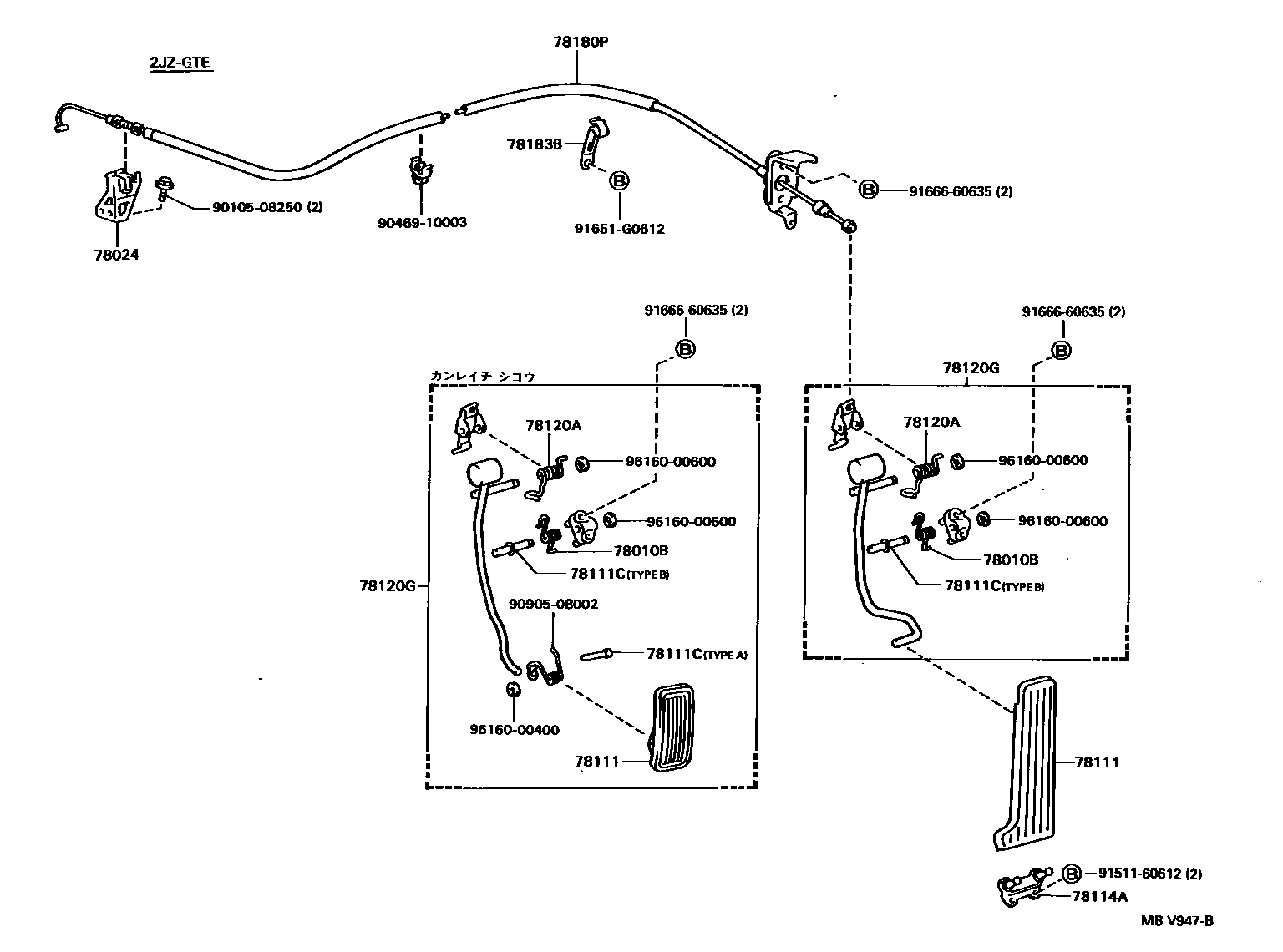

Toyota ARISTO — ACCELERATOR LINK

0001 1 0002 1 0003 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-18103iJZS147,UZS143199110-199708

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-30160iJZS147..V199110-199708

78111PEDAL, ACCELERATOR

main78111-30100iJZS147,UZS143199110-199708

main78111-30110iJZS147,UZS143199110-199708

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05043iJZS147,UZS143199110-199708

main90249-08116iJZS147,UZS143199110-199708

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30060iJZS147,UZS143199110-199708

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-29022iJZS147,UZS143199110-199708

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30750iJZS147,UZS143199110-199708

main78120-30760iJZS147,UZS143199110-199708

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A310iUZS143199210-199708

main78180-3A320iJZS147..Q199110-199708

main78180-3A330iJZS147..V199110-199708

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-30100iJZS147,UZS143..V,Z199110-199708

main78183-30110iJZS147..Q199110-199708

9010508250

main90105-08250

9046910003

main90469-10003

9090508002

main90905-08002

9151160612

main91511-60612

91651G0612

main91651-G0612

9166660635

main91666-60635

9616000400

main96160-00400

9616000600

main96160-00600

17 parts on this diagram · 3 diagrams in section
