Toyota ARISTO — ABS & VSC

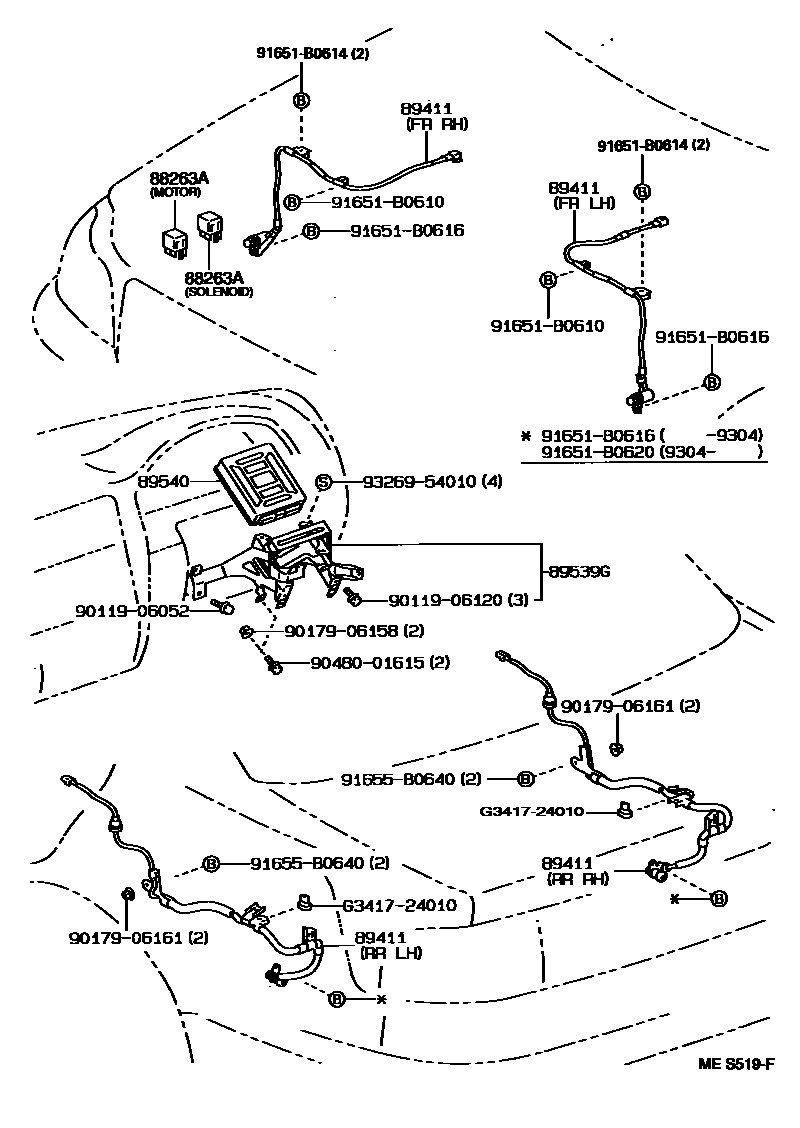

Parts diagram

88263ARELAY, SKID CONTROL

main88263-24020i199110-199608

ABS MOTOR

main88263-24030i199608-199708

89411SENSOR, SPEED

main89542-30170i199110-199508

FRONT RH

main89542-30180i199210-199508

FRONT RH

main89542-30210i199508-199708

FRONT RH

main89542-30220i199508-199708

FRONT RH

main89543-30170i199110-199508

FRONT LH

main89543-30180i199210-199508

FRONT LH

main89543-30210i199508-199708

FRONT LH

main89543-30220i199508-199708

FRONT LH

main89545-24010i199110-199304

REAR RH

main89545-30020i199304-199508

REAR RH

main89545-30030i199508-199708

REAR RH

main89546-24010i199110-199304

REAR LH

main89546-30020i199304-199508

REAR LH

main89546-30030i199508-199708

REAR LH

89539GBRACKET, COMPUTER

main89539-30060i199110-199708

89540COMPUTER ASSY, SKID CONTROL

main89541-30010i199110-199708

main89541-30020i199608-199708

main89541-30030i199210-199308

main89541-30031i199308-199708

9011906052

main90119-06052

9011906120

main90119-06120

9017906158

main90179-06158

9017906161

main90179-06161

9048001615

main90480-01615

91651B0610

main91651-B0610

91651B0614

main91651-B0614

91651B0616

main91651-B0616

91651B0620

main91651-B0620

91655B0640

main91655-B0640

9326954010

main93269-54010

G341724010

mainG3417-24010

16 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota ARISTO

This section contains 19 genuine Toyota parts for the ABS & VSC system of the Toyota ARISTO. Key components include: BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, SENSOR, SPEED, SENSOR, DECELERATION, BRACKET, COMPUTER.
