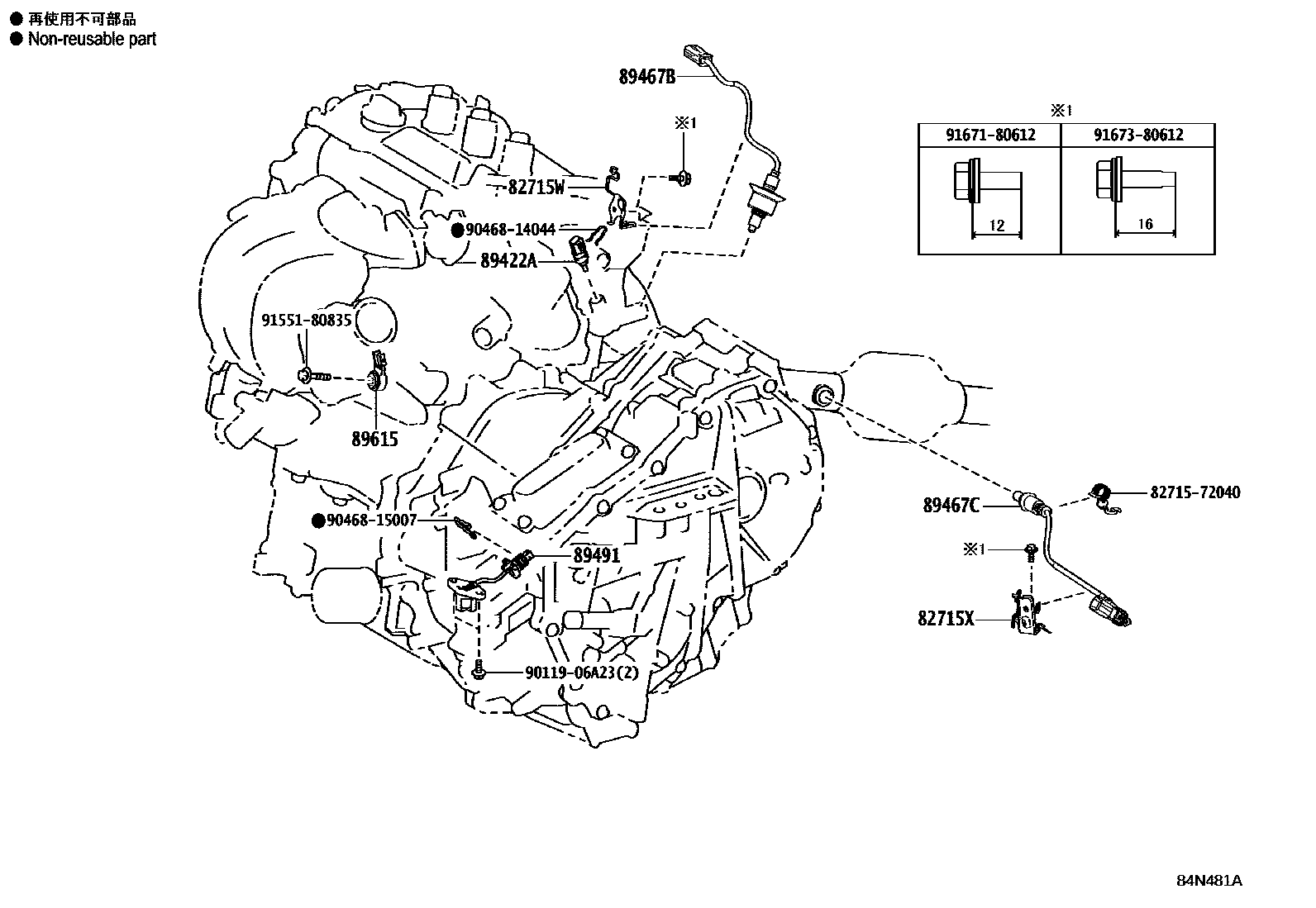

82715WBRACKET, WIRING HARNESS CLAMP

main82715-K0030iMXPK10,15202106-202403

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-K0040iMXPK10,15202106-202403

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXPK11,16202106-202403

89467BSENSOR, AIR FUEL RATIO

main89467-K0020iMXPK10,15202106-202403

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52370iMXPK11,16202403

main89467-K0030iMXPK1#202106-202403

89491SENSOR, ENGINE OIL LEVEL

main89491-50081iMXPK1#202106-202204

main89491-50082iMXPK10,15202205-202403

89615SENSOR, KNOCK CONTROL

main89615-20090iMXPK10,15202106-202403

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180612

main91671-80612

9167380612

main91673-80612

14 parts on this diagram · 9 diagrams in section
