Toyota AQUA — PRE-COLLISION SYSTEM

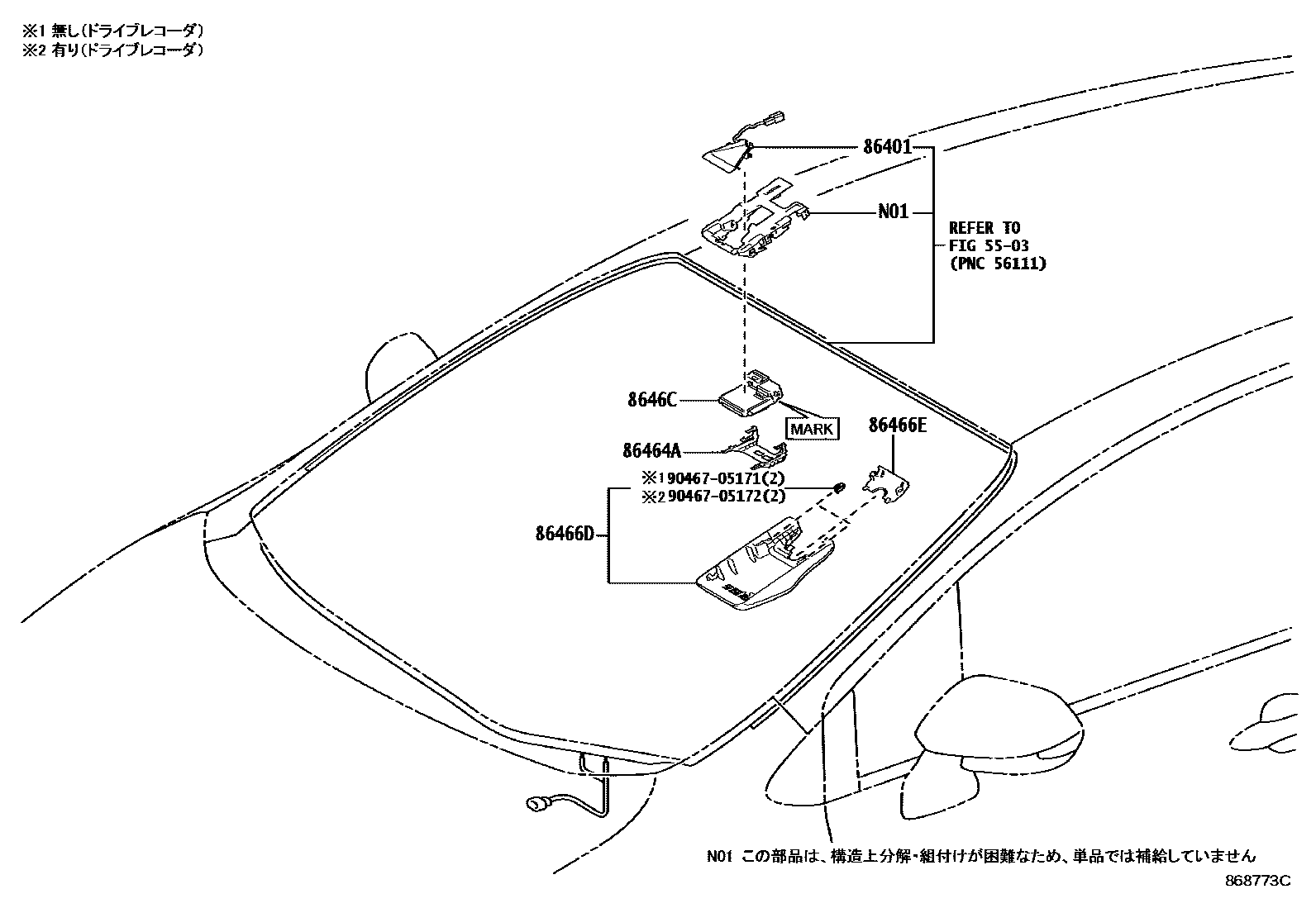

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-52030i202106-202403

86464ALATCH, FORWARD RECOGNITION

main86464-K0010i202106-202403

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-52050i202106-202403

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-52060i202106-202403

8646CCAMERA, FORWARD RECOGNITION

main8646C-52090i202106-202212

main8646C-52130i202212-202403

main8646C-52130i202212-202405

main8646C-52131i202405

9046705171

main90467-05171

9046705172

main90467-05172

8 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota AQUA

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota AQUA. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
