Toyota AQUA — PRE-COLLISION SYSTEM

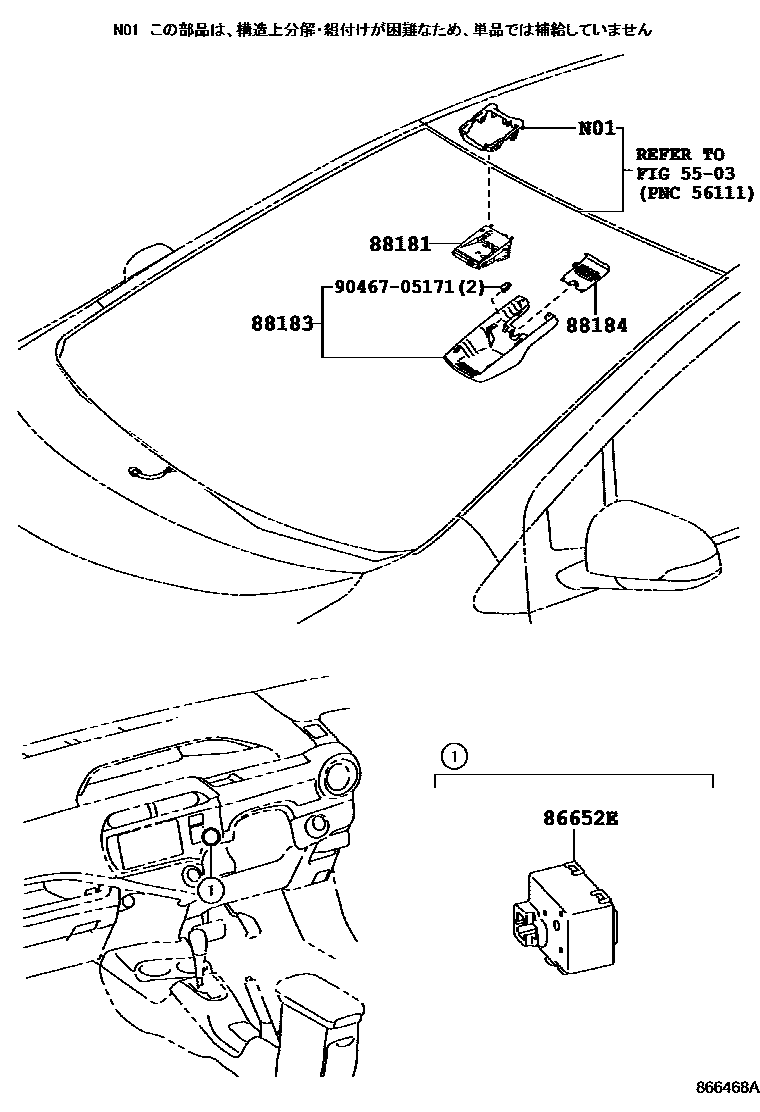

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86652EBUZZER, PRE-COLLISION CITY

main86652-50010i201511-201706

88181SENSOR, PRE-COLLISION CITY

main88181-0W030i201511-201706

main88181-0W130i201706-201708

main88181-52050i201708-201804

main88181-52110i201804-201907

main88181-52150i201907

88183COVER, PRE-COLLISION CITY

main88183-52030i201511-201706

main88183-52070i201706

88184COVER, PRE-COLLISION CITY, 2ND

main88184-52030i201511-201706

main88184-52070i201706

9046705171

main90467-05171

6 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota AQUA

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota AQUA. Key components include: COWL PANEL & WINDSHIELD GLASS, BUZZER, PRE-COLLISION CITY, SENSOR, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY, COVER, PRE-COLLISION CITY, 2ND.
