Toyota AQUA — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
8780AMEMORY CARD SET, INNER REAR VIEW MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
DK.GRAY,2WT ,2WU ,2YR ,2YS
BLACK MC.,209
EMOTIONAL RED 2,3U5
POP ORANGE CS.,4W5
CLEAR BEIGE ME.,4Y3
BRASS GOLD ME.,5C2
URBAN KHAKI,6X3
DK.BLUE M.M.,8W7
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
DK.GRAY,2WT ,2WU ,2YR ,2YS
BLACK MC.,209
EMOTIONAL RED 2,3U5
POP ORANGE CS.,4W5
CLEAR BEIGE ME.,4Y3
BRASS GOLD ME.,5C2
URBAN KHAKI,6X3
DK.BLUE M.M.,8W7
8794ACOVER, OUTER MIRROR, LH NO.2
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
9016440100
main90164-40100
9017906274
main90179-06274

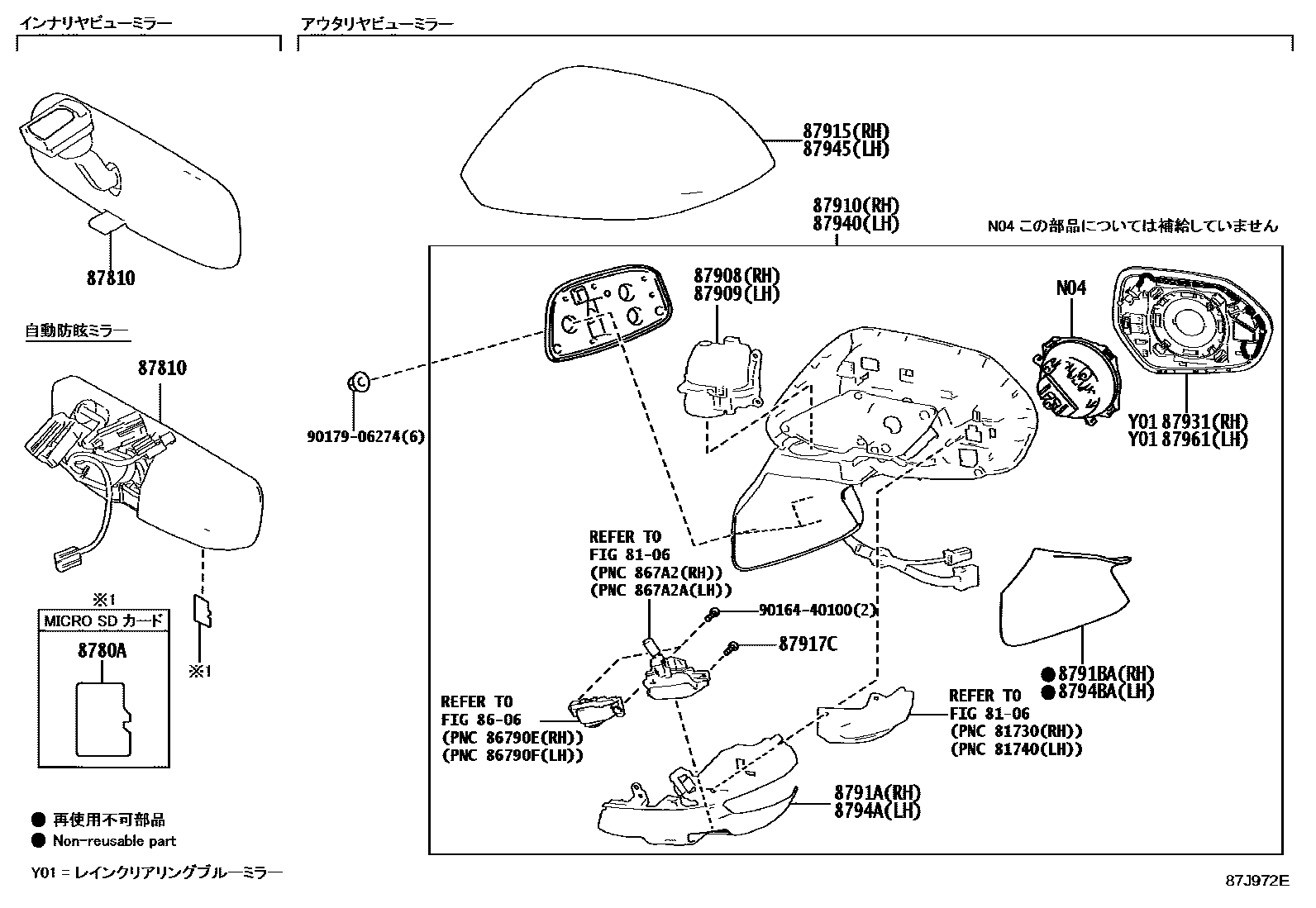

19 parts on this diagram · 1 diagram in section
MIRROR for Toyota AQUA
This section contains 19 genuine Toyota parts for the MIRROR system of the Toyota AQUA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MEMORY CARD SET, INNER REAR VIEW MIRROR, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH.
