Toyota AQUA — MIRROR

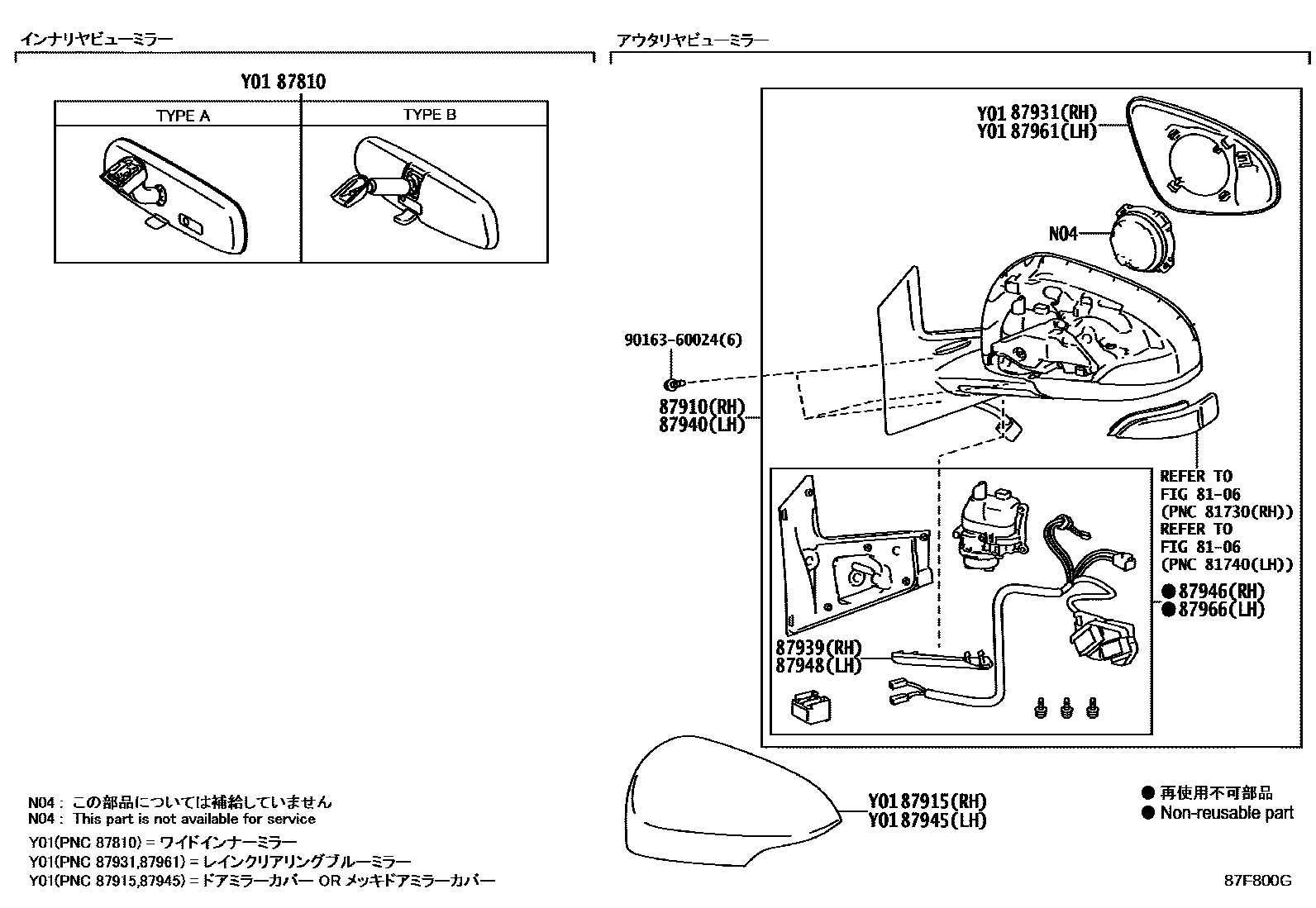

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WQ40supersedes 87810-52041i201706
main87810-52041i201112-201412
main87810-AA011i201112-201412
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-52D70i201112-201412
main87910-52F40i201412-201706
main87910-52K00supersedes 87910-52J80i201907
87915COVER, OUTER MIRROR, RH
main87915-10010-A1i201907
WHITE PEARL CS.,070
main87915-10010-A2i201907
SUPER WHITE 2,040
main87915-10010-B1i201907
SILVER ME.,1F7
main87915-10010-B2i201907-202008
GRAY ME.,1G3
main87915-10010-B3i202008
CEMENT GRAY ME.,1H5
main87915-10010-C1i201907
main87915-10010-C2i201907
BLACKISH AGEHA GF.,221
main87915-10010-D2i201907
SUPER RED 5,3P0
main87915-10010-E0i202008
DK. BROWN M.M.,4U3
main87915-10010-E3i201907
BEIGE,4U0
main87915-10010-F0i201907
YELLOW,5A3
main87915-10010-G2i201907
THERMO-TECT LIME GREEN,6W7
main87915-10010-G3i201907
OLIVE M.M.,6T7
main87915-10010-H0i201907
CLEAR EMERALD PEARL CS.,792
main87915-10010-J0i201907
BLUE ME.,8T7
main87915-10010-K0i201907-202008
JEWELRY PURPLE M.M.,9AR
main87915-52170-A0i201706-201907
SUPER WHITE 2,040
main87915-52170-A1i201804-201907
WHITE PEARL CS.,070
main87915-52170-A2i201412-201706
LIME WHITE PEARL CS.,082
main87915-52170-B0i201112-201412
SILVER ME.,1F7
main87915-52170-B1i201112-201412
GRAY ME.,1G3
main87915-52170-C0i201412-201706
BLACK MC.,209
main87915-52170-C1i201706-201907
BLACKISH AGEHA GF.,221
main87915-52170-D1i201706-201907
SUPER RED 5,3P0
main87915-52170-E2i201112-201412
MANDARIN ORANGE M.M.,4V7
main87915-52170-E6i201412-201706
ORANGE PEARL CS.,4X3
main87915-52170-F0i201706-201907
YELLOW,5A3
main87915-52170-F1i201706-201907
FRESH GREEN M.M,588
main87915-52170-G0i201809-201907
OLIVE M.M.,6T7
main87915-52170-H1i201706-201907
CLEAR EMERALD PEARL CS.,792
main87915-52170-J0i201605-201706
DK.BLUE MC.,8S6
main87915-52170-J1i201706-201907
BLUE ME.,8T7
main87915-52170-J2i201112-201412
COOL SODA ME.,8V7
main87915-52170-K1i201312-201412
DEEP AMETHYST M.M.,9AH
main87915-52170-K3i201706-201907
JEWELRY PURPLE M.M.,9AR
main87915-52170-L0i201707-201907
BEIGE,4U0
main87915-10010-E2i201907
main87915-10010-E4i201907
main87915-10010-F1i201907
main87915-10010-J2i201907-202008
main87915-52170-E9i201706-201907
main87915-52170-F3i201706-201907
main87915-52170-L1i201706-201907
main87915-52240i201412-201706
87931OUTER MIRROR, RH
main87931-10850i201907
main87931-52D70i201112-201412
main87931-52F40i201412-201706
87939COVER, OUTER MIRROR HOLE, RH
main87939-52D70i201112-201412
main87939-52J80i201907
main00000-00000i201907
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-52D50i201112-201412
main87940-52F30i201412-201706
main87940-52J50i201907-202008
main87940-52J60supersedes 87940-52J40i201907
main87940-52J70supersedes 87940-52J50i201907
87945COVER, OUTER MIRROR, LH
main87945-10010-A1i201907
WHITE PEARL CS.,070
main87945-10010-A2i201907
SUPER WHITE 2,040
main87945-10010-B1i201907
SILVER ME.,1F7
main87945-10010-B2i201907-202008
GRAY ME.,1G3
main87945-10010-B3i202008
CEMENT GRAY ME.,1H5
main87945-10010-C1i201907
main87945-10010-C2i201907
BLACKISH AGEHA GF.,221
main87945-10010-D2i201907
SUPER RED 5,3P0
main87945-10010-E0i202008
DK. BROWN M.M.,4U3
main87945-10010-E3i201907
BEIGE,4U0
main87945-10010-F0i201907
YELLOW,5A3
main87945-10010-G2i201907
THERMO-TECT LIME GREEN,6W7
main87945-10010-G3i201907
OLIVE M.M.,6T7
main87945-10010-H0i201907
CLEAR EMERALD PEARL CS.,792
main87945-10010-J0i201907
BLUE ME.,8T7
main87945-10010-K0i201907-202008
JEWELRY PURPLE M.M.,9AR
main87945-52170-A0i201706-201907
SUPER WHITE 2,040
main87945-52170-A1i201804-201907
WHITE PEARL CS.,070
main87945-52170-A2i201112-201412
LIME WHITE PEARL CS.,082
main87945-52170-B0i201706-201907
SILVER ME.,1F7
main87945-52170-B1i201706-201907
GRAY ME.,1G3
main87945-52170-C0i201412-201706
BLACK MC.,209
main87945-52170-C1i201706-201907
BLACKISH AGEHA GF.,221
main87945-52170-D1i201706-201907
SUPER RED 5,3P0
main87945-52170-E2i201112-201412
MANDARIN ORANGE M.M.,4V7
main87945-52170-E6i201706-201907
ORANGE PEARL CS.,4X3
main87945-52170-F0i201706-201907
YELLOW,5A3
main87945-52170-F1i201706-201907
FRESH GREEN M.M,588
main87945-52170-G0i201809-201907
OLIVE M.M.,6T7
main87945-52170-H1i201706-201907
CLEAR EMERALD PEARL CS.,792
main87945-52170-J0i201605-201706
DK.BLUE MC.,8S6
main87945-52170-J1i201112-201412
BLUE ME.,8T7
main87945-52170-J2i201412-201706
COOL SODA ME.,8V7
main87945-52170-K1i201312-201412
DEEP AMETHYST M.M.,9AH
main87945-52170-K3i201706-201907
JEWELRY PURPLE M.M.,9AR
main87945-52170-L0i201707-201907
BEIGE,4U0
main87945-10010-E2i201907
main87945-10010-E4i201907
main87945-10010-F1i201907
main87945-10010-J2i201907
main87945-52170-E9i201706-201907
main87945-52170-F3i201706-201907
main87945-52170-L1i201706-201907
main87945-52240i201412-201706
87946RETRACTOR, OUTER MIRROR, RH
main87946-52D70i201112-201412
main00000-00000supersedes 87946-52J80i201907
main87946-52F40i201412-201706
87948COVER, OUTER MIRROR HOLE, LH
main87948-52D50i201412-201706
main87948-52J40i201907
main00000-00000i201907
87961MIRROR OUTER, LH
main87961-10840i201907
main87961-52D50i201112-201412
main87961-52F30supersedes 87961-52D50i201412-201706
87966RETRACTOR, OUTER MIRROR, LH
main87966-52D50i201112-201412
main87966-52J40i201907
main87966-52J50i201907-202007
main87966-52J51i202007
main00000-00000supersedes 87966-52D50i201907
main87966-52F30i201412-201706
9016360024
main90163-60024

13 parts on this diagram · 5 diagrams in section

MIRROR for Toyota AQUA

This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota AQUA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
