Toyota AQUA — METER

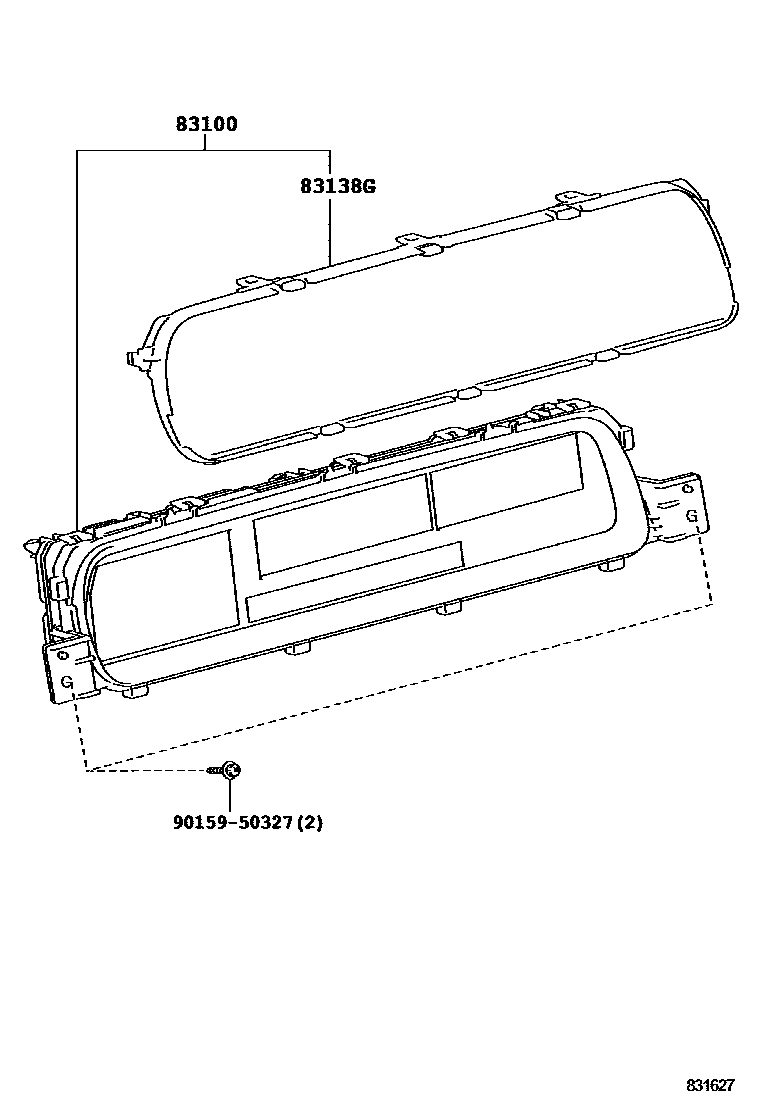

Parts diagram

83100METER ASSY, COMBINATION

main83800-52Z90i201706-201804

main83800-5CF70i201112-201304

main83800-5CF71i201304-201312

main83800-5CF72i201312-201407

main83800-5CF73i201408-201412

main83800-5CN10i201706-201809

main83800-5CQ20i201804-201809

main83800-5CQ21supersedes 83800-5CN11i201907

main83800-5CR00i201412-201511

main83800-5CU90i201511-201706

main83800-5D160supersedes 83800-5D170i201810-201907

main83800-52Z91i201808-201809

main83800-52Z92i201907

main83800-5CF60i201112-201304

main83800-5CF61i201304-201312

main83800-5CF62i201312-201407

main83800-5CF63i201408-201412

main83800-5CQ90i201412-201511

main83800-5CU80i201511-201706

main83800-5CW60i201711-201807

main83800-5CW61i201808-201809

main83800-5CW62i201907

main83800-5D180i201810-201907

main83800-5D190i201810-201907

83138GGLASS, COMBINATION METER

main83852-5CF60i201112-201412

9015950327

main90159-50327

3 parts on this diagram · 1 diagram in section

METER for Toyota AQUA

This section contains 3 genuine Toyota parts for the METER system of the Toyota AQUA. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
