Toyota AQUA — HEV CONTROL COMPUTER

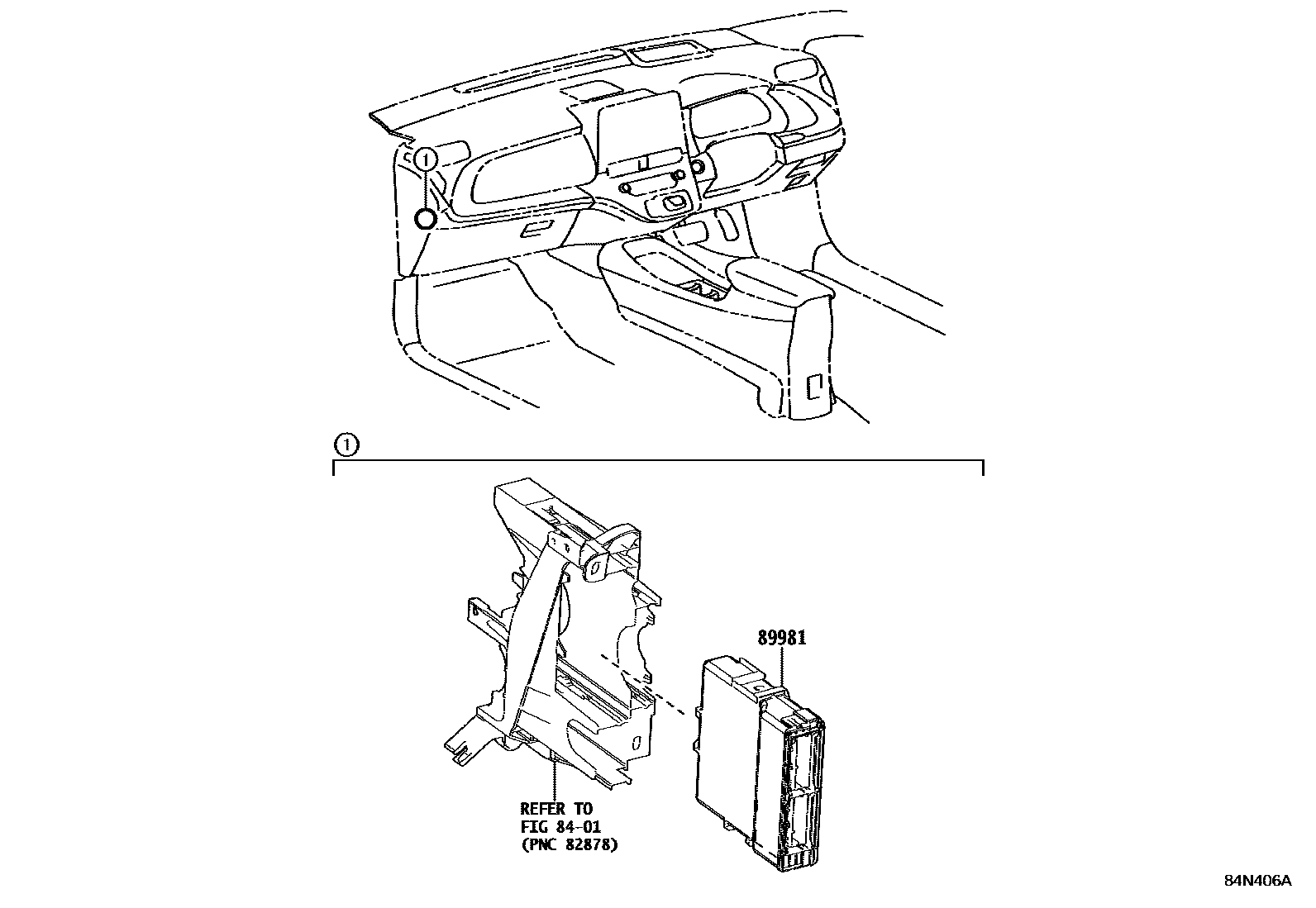

Parts diagram

8401

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-52590i202106-202403

main89981-52600i202106-202403

main89981-52610i202106

main89981-52620i202106

2 parts on this diagram · 1 diagram in section
