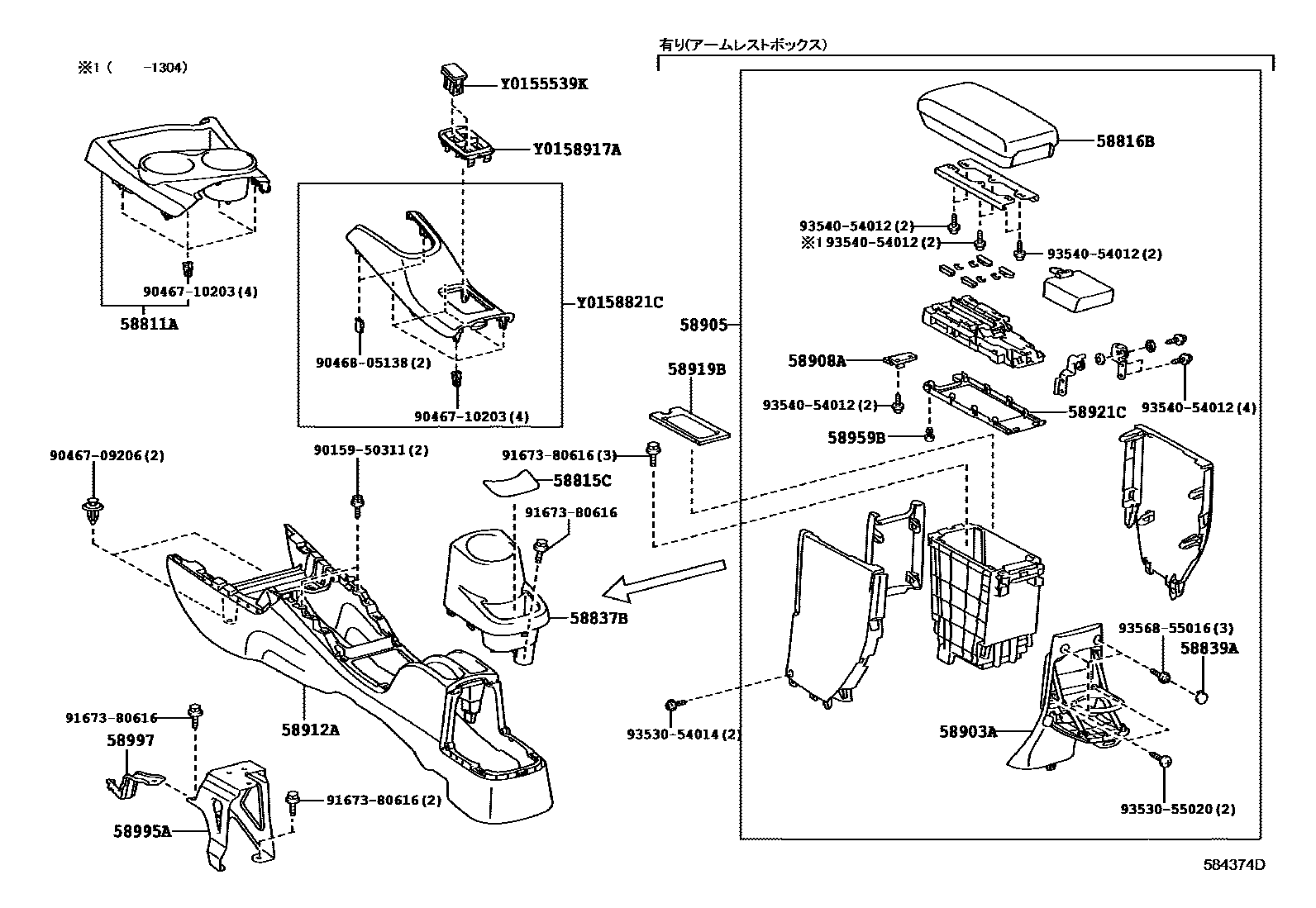

Toyota AQUA — CONSOLE BOX & BRACKET

55539KCOVER, SPARE SWITCH HOLE

main55539-26140-C0i201511-201706

main55539-28160-B3i201112-201412

LT.BLUE GRAY,TRIM22,28; LT.BLUE GRAY,TRIM28

main55539-28160-C0i201306-201412

BLACK,TRIM20,22

main55539-28160-E0i201306-201412

GREGE,TRIM24

58811ABOX, CONSOLE, FRONT

main58811-52050-C0i201112-201412

BLACK,TRIM2#

main58811-52051-C0i201706

BLACK,TRIM2#; BLACK,TRIM2#,3#,4#,8#

main58811-52080-C0i201707

BLACK,TRIM0#,2#,4#

main58811-52090-C0i201711

58815CCARPET, CONSOLE BOX

main58815-52120i201112-201412

58816BINSERT, CONSOLE BOX

main58914-52030-C0i201312-201412

main58914-52030-C3supersedes 58914-52040-C0i201711

58821CPANEL, CONSOLE, UPPER

main58821-52120-B0i201112-201412

LT.BLUE GRAY,TRIM22,28; LT.BLUE GRAY,TRIM28

main58821-52120-C0i201706

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#,8#

main58821-52120-E0i201112-201412

GREGE,TRIM24

58837BBOX, CONSOLE CUP HOLDER

main58837-52040-C0i201112-201412

BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-52030-C0×2i201711

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-52020-C0i201711

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-52050-C0supersedes 58905-52060-C0i201412-201706

main58905-52050-C3supersedes 58905-52060-C0i201711

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080i201711

58912ABOX, REAR CONSOLE

main58911-52210-C0i201412-201501

BLACK,TRIM2#

main58911-52211-C0i201706

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#,8#

58917ACOVER, CONSOLE BOX, REAR

main58917-52130-B0i201112-201303

LT.BLUE GRAY,TRIM2#; LT.BLUE GRAY,TRIM22,28

main58917-52130-E0i201112-201303

GREGE,TRIM2#; GREGE,TRIM24

main58917-52131-B0i201304-201412

LT.BLUE GRAY,TRIM2#; LT.BLUE GRAY,TRIM22

main58917-52131-C0i201306-201412

BLACK,TRIM20,22

main58917-52131-E0i201304-201306

GREGE,TRIM2#

main58917-52140-C0i201412-201506

BLACK,TRIM2#

main58917-52141-C0i201507-201511

BLACK,TRIM2#

main58917-52160-C0i201706

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,3#,4#,8#

58919BPLATE, CONSOLE BOX

main58919-52010i201711

58921CPLATE, BOX, UPPER NO.1

main58921-52020i201711

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i201711

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52050i201711

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-52020i201711

9015950311

main90159-50311

9046709206

main90467-09206

9046710203

main90467-10203

9046805138

main90468-05138

9167380616

main91673-80616

9353054014

main93530-54014

9353055020

main93530-55020

9354054012

main93540-54012

9356855016

main93568-55016

26 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota AQUA

This section contains 26 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota AQUA. Key components include: COVER, SPARE SWITCH HOLE, BOX, CONSOLE, FRONT, CARPET, CONSOLE BOX, INSERT, CONSOLE BOX, PANEL, CONSOLE, UPPER.
