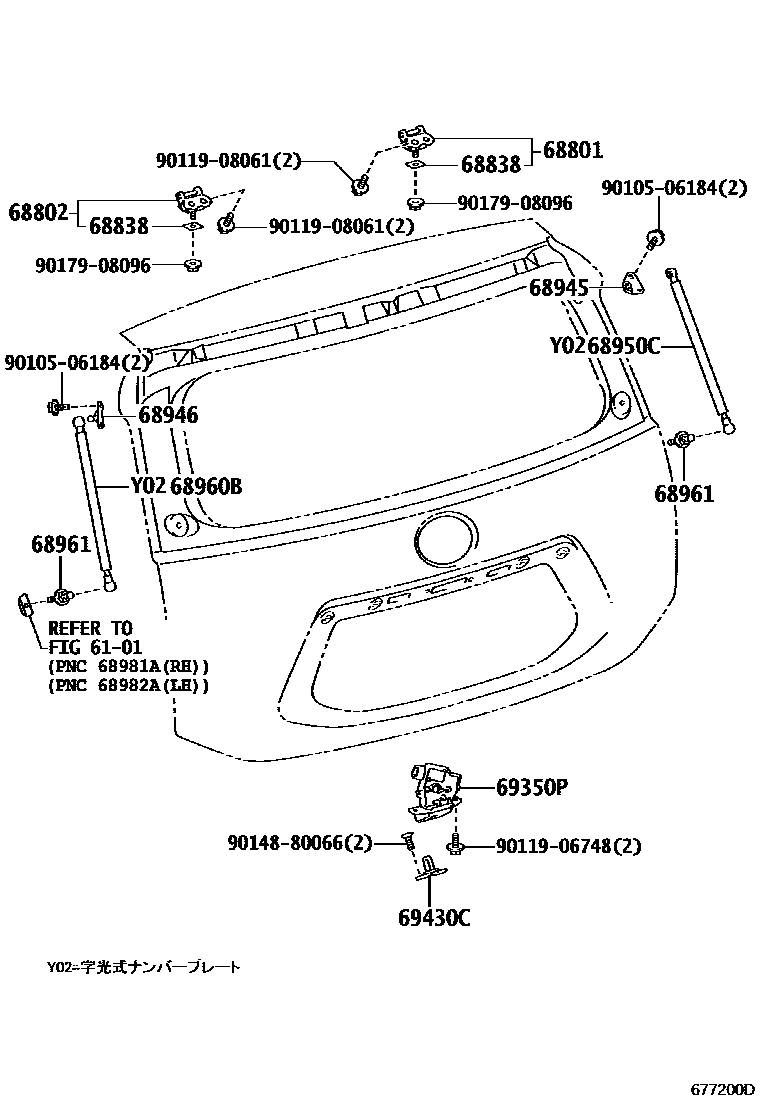

Toyota AQUA — BACK DOOR LOCK & HANDLE
6101SIDE MEMBER
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68802HINGE SUB-ASSY, BACK DOOR, UPPER LH
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9011906748
main90119-06748
9011908061
main90119-08061
9014880066
main90148-80066
9017908096
main90179-08096
16 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota AQUA
This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota AQUA. Key components include: SIDE MEMBER, HINGE SUB-ASSY, BACK DOOR, UPPER RH, HINGE SUB-ASSY, BACK DOOR, UPPER LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH.
