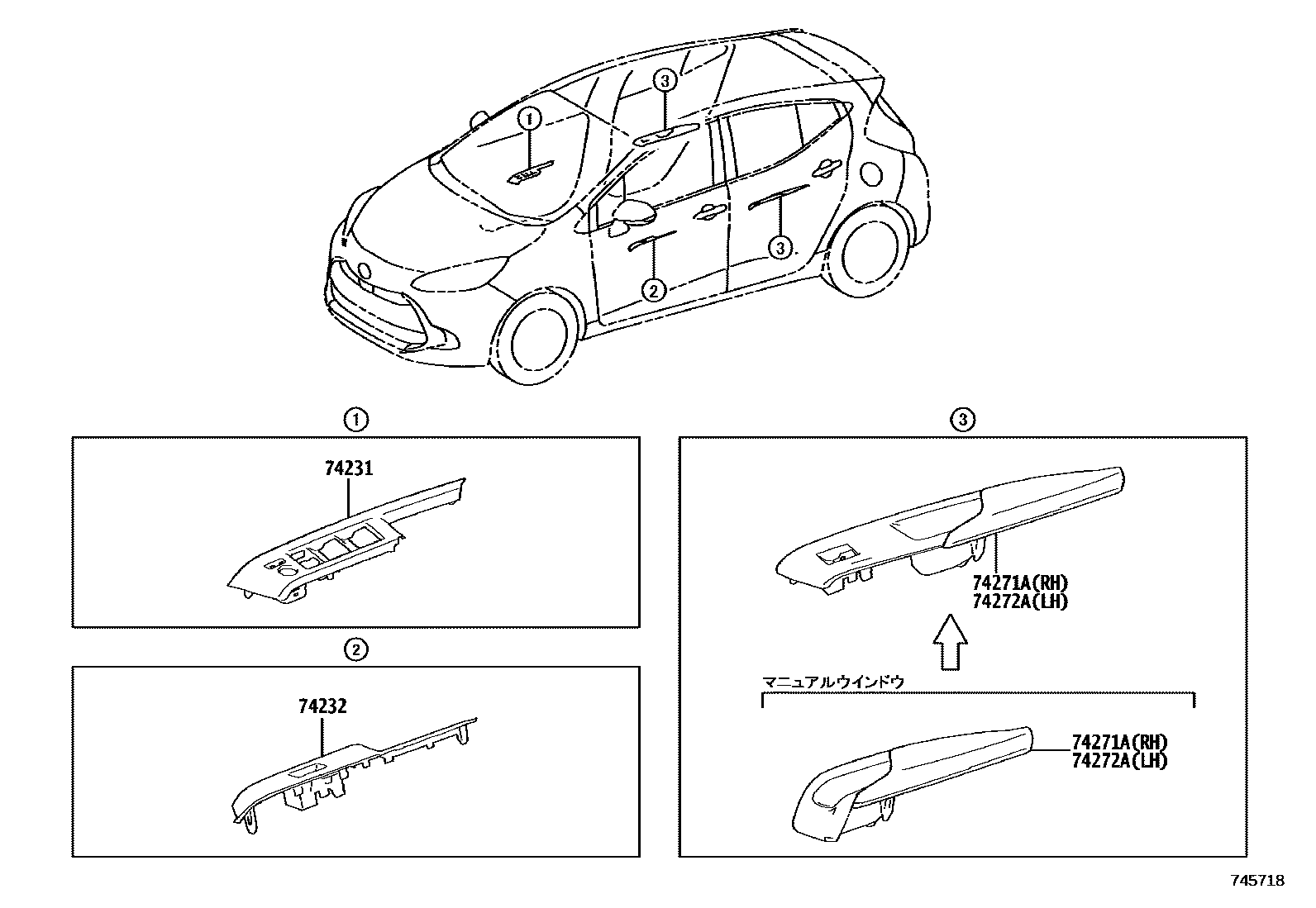

Toyota AQUA — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52B80-C0i202106-202112

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main74231-52B81-C0i202201

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main74231-52B90-C0i202106-202112

BLACK,TRIM2#

main74231-52B91-C0i202201-202403

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52860-C0i202201

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main74232-52A00-C0i202106-202201

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main74232-52A01-C0i202201-202403

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52290-C0i202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main74271-52390-C0i202106-202403

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-52280-C0i202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main74272-52370-C0i202106-202403

BLACK,TRIM2#

4 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota AQUA

This section contains 16 genuine Toyota parts for the ARMREST & VISOR system of the Toyota AQUA. Key components include: ROOF HEADLINING & SILENCER PAD, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
