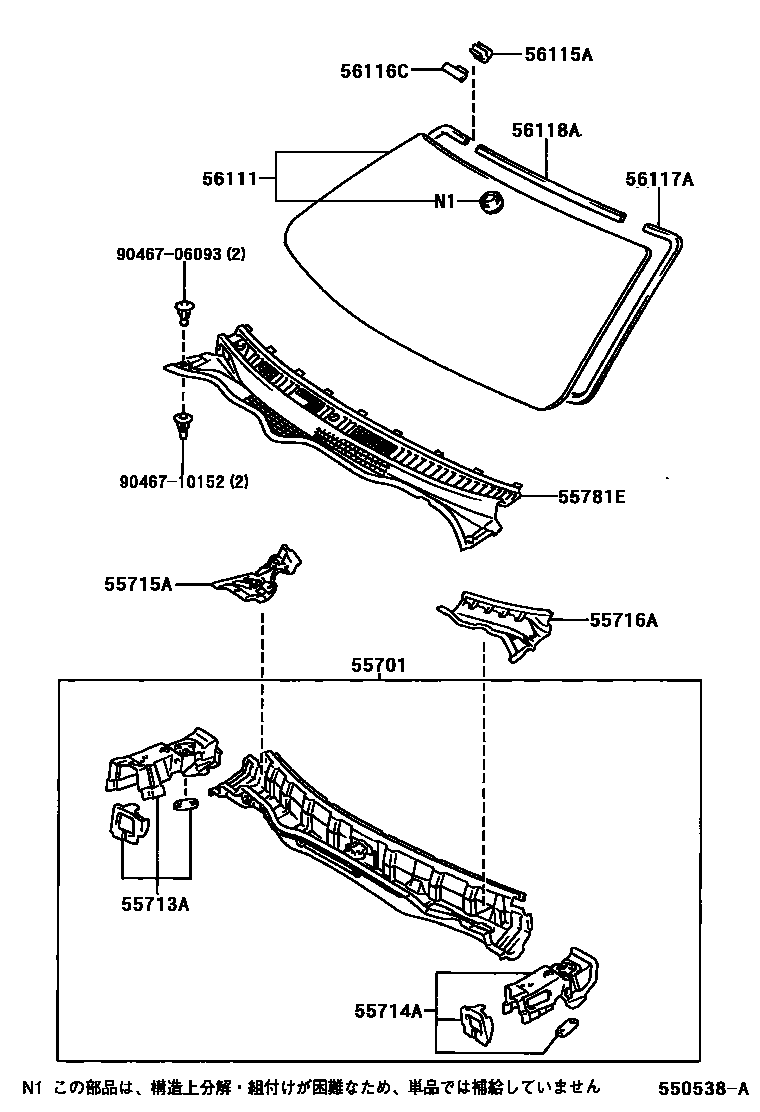

Toyota ALTEZZA/ALTEZZA GITA — COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-53010i200105-200308

55713APANEL, COWL TOP SIDE, RH

main55713-53900i199810-200105

55714APANEL, COWL TOP SIDE, LH

main55714-53900i199810-200105

55715ABRACE, COWL TOP TO APRON, RH

main55715-53010i200105-200308

55716ABRACE, COWL TOP TO APRON, LH

main55716-53010i200105-200308

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53010i200105-200307

main55708-53011i200307

main55708-53020i200105-200307

main55708-53021i200307

56111GLASS, WINDSHIELD

main56111-53010i199810-200105

main56111-53011i200105-200308

main56111-53020i199810-200105

main56111-53021i200105-200301

main56111-53022i200301-200308

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200105

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i199810-200105

56117ADAM, WINDOW GLASS ADHESIVE

main56117-53010i199810-200105

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-53010i199810-200105

9046706093

main90467-06093

9046710152

main90467-10152

13 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota ALTEZZA/ALTEZZA GITA

This section contains 13 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota ALTEZZA/ALTEZZA GITA. Key components include: PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH.
