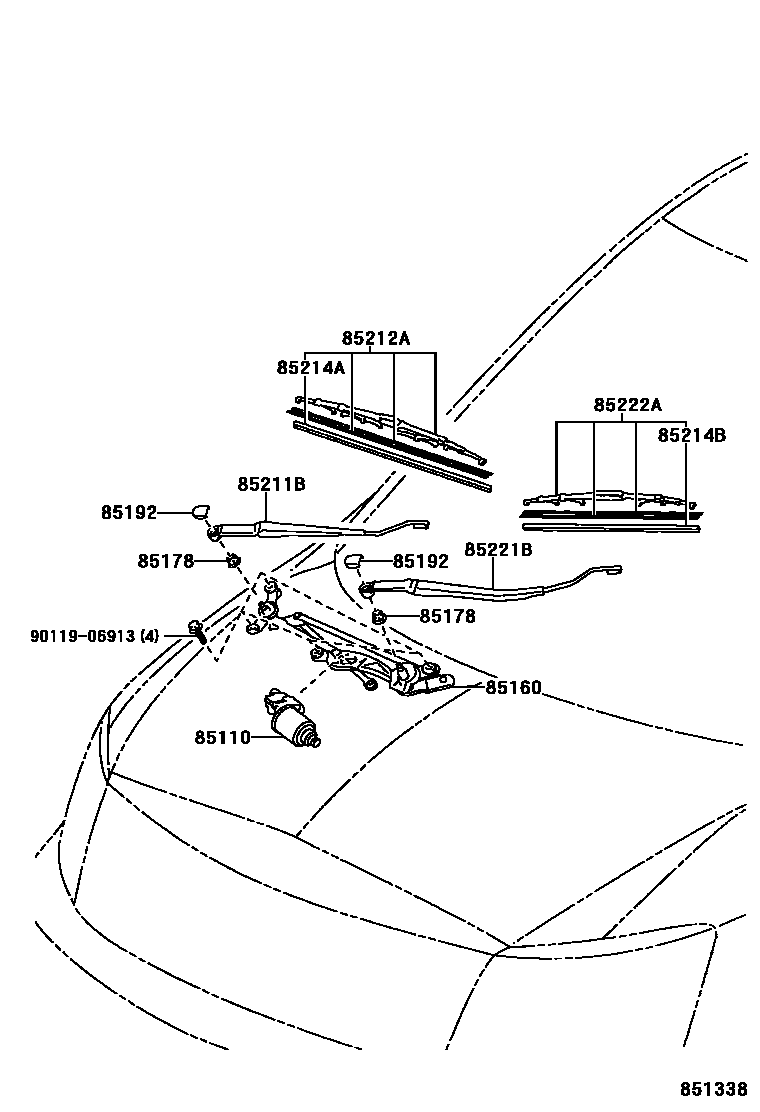

Toyota ALPHARD — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-58010i200312-200504

85160LINK ASSY, WINDSHIELD WIPER

main85150-58010i200312-200504

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i200312-200504

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200312-200504

85211BARM, FRONT WIPER, RH

main85211-58010i200312-200504

85212ABLADE, FR WIPER, RH

main85212-58020i200312-200504

85214ARUBBER, WIPER, RH

main85214-44130i200312-200504

main85214-44140i200507

85214BRUBBER, WIPER, LH

main85214-50060i200507-200606

main85214-50061i200607

main85214-50130i200312-200504

85221BARM, FRONT WIPER, LH

main85221-58010i200312-200504

85222ABLADE, FR WIPER, LH

main85222-58020i200312-200504

main85222-58021i200607

9011906913

main90119-06913

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota ALPHARD

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota ALPHARD. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
