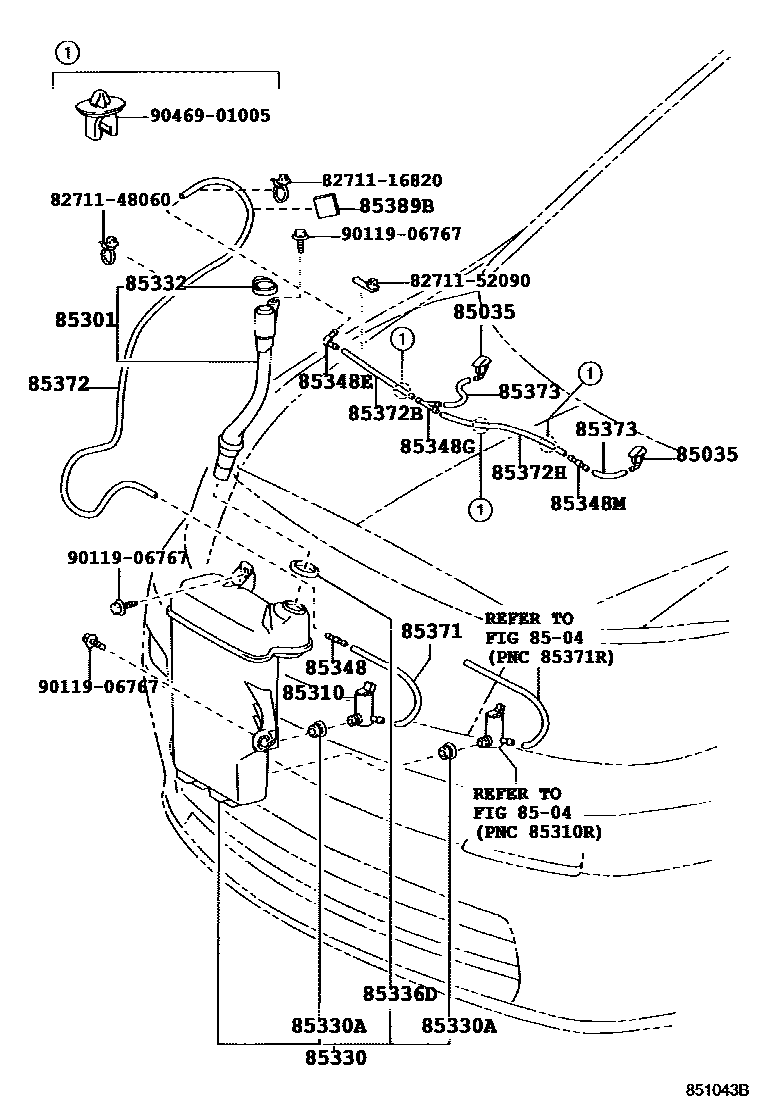

Toyota ALPHARD — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-58020-A0×2i200312-200504

WHITE PM.,042 ,2JD

main85381-58020-A1×2i200706-200804

WHITE PEARL CS.,070

main85381-58020-B0×2i200312-200504

SILVER ME.,1C0

main85381-58020-B3×2i200504-200804

SILVER ME.,1F7

main85381-58020-C0×2i200504-200804

BLACK MC.,209

main85381-58020-D0×2i200312-200504

BORDEAUX MC.,3P2

main85381-58020-D2×2i200504-200804

BLACKISH RED MC.,3R0

main85381-58020-F0×2i200312-200504

GOLD ME.,593

main85381-58020-G0×2i200312-200504

LT. GREEN M.M.,6T2

main85381-58020-J1×2i200504-200804

DK.BLUE MC.,8K8

main85381-68010×2i200504-200804

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-58010i200312-200504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200312-200504

85330JAR ASSY, WINDSHIELD WASHER

main85315-58010i200312-200504

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2i200312-200504

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200312-200504

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i200312-200504

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200312-200504

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i200312-200504

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200312-200504

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200312-200504

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200312-200504

L=1450(*H,L=410)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i200312-200504

L=1000(*H,L=900)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200312-200504

L=1800(*H,L=430)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-59024i200312-200504

L=1800(*H,L=470)

main90446-07001i200504

L=1800(*H,L=470)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200312-200504

L=1450(*H,L=140)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-28130i200312-200504

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767

9046901005

main90469-01005

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota ALPHARD

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ALPHARD. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
