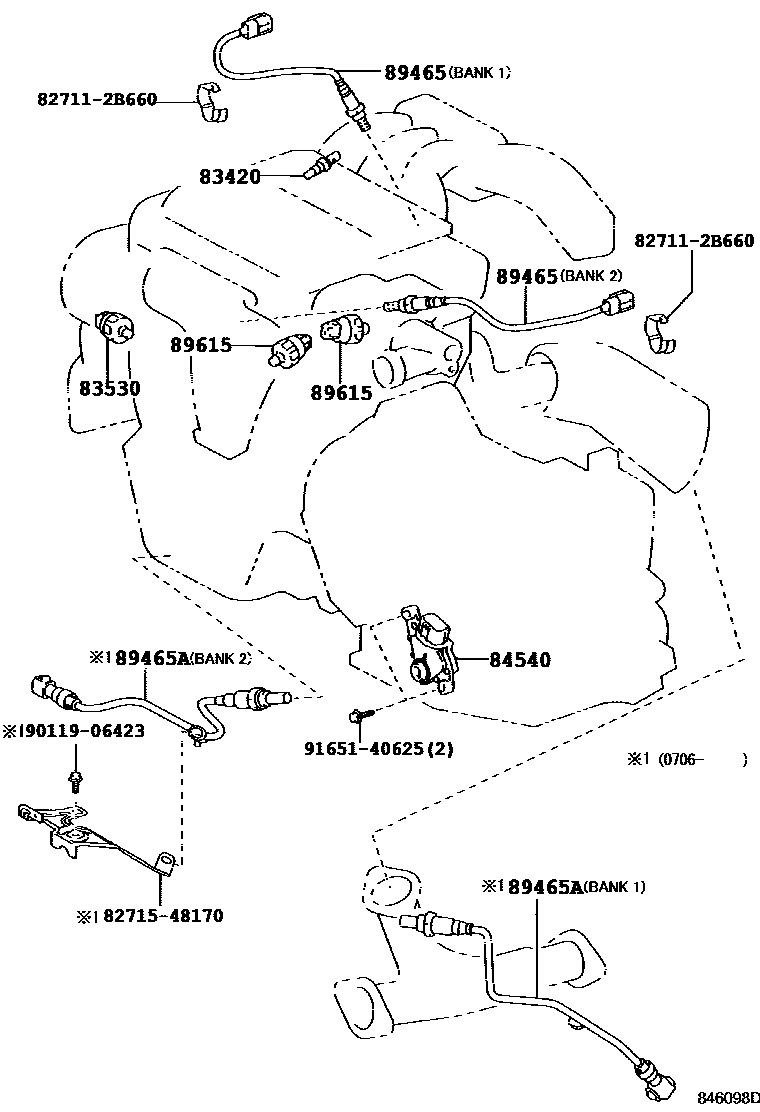

Toyota ALPHARD — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1CONSOLE BOX SWITCH 0008 1IGNITION & COMBINATION SWITCH0009 1SEAT 0010 1DOOR,ROOF,FLOOR & BACK DOOR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMNH10200504-200804

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMNH10200312-200504

DENSO

main83530-60020iMNH10200312-200504

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-32110iMNH10200312-200504

main84540-48010iMNH10200504-200804

89465SENSOR, OXYGEN

main89465-30610iMNH10200312-200504

BANK1

main89465-41060iMNH10200312-200504

BANK2

main89465-58050iMNH10200504-200706

BANK2

main89465-58060iMNH10200504-200706

BANK1

main89465-58090iMNH10200706-200804

BANK2

main89465-58100iMNH10200706-200804

BANK1

89465ASENSOR, OXYGEN NO.2

main89465-58110iMNH10200706-200804

BANK2

main89465-58120iMNH10200706-200804

BANK1

89615SENSOR, KNOCK CONTROL

main89615-12090×2iMNH10200312-200504

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8271548170BRACKET,WIRING HARNESS CLAMP

main82715-48170

9011906423

main90119-06423

9165140625

main91651-40625

10 parts on this diagram · 10 diagrams in section
