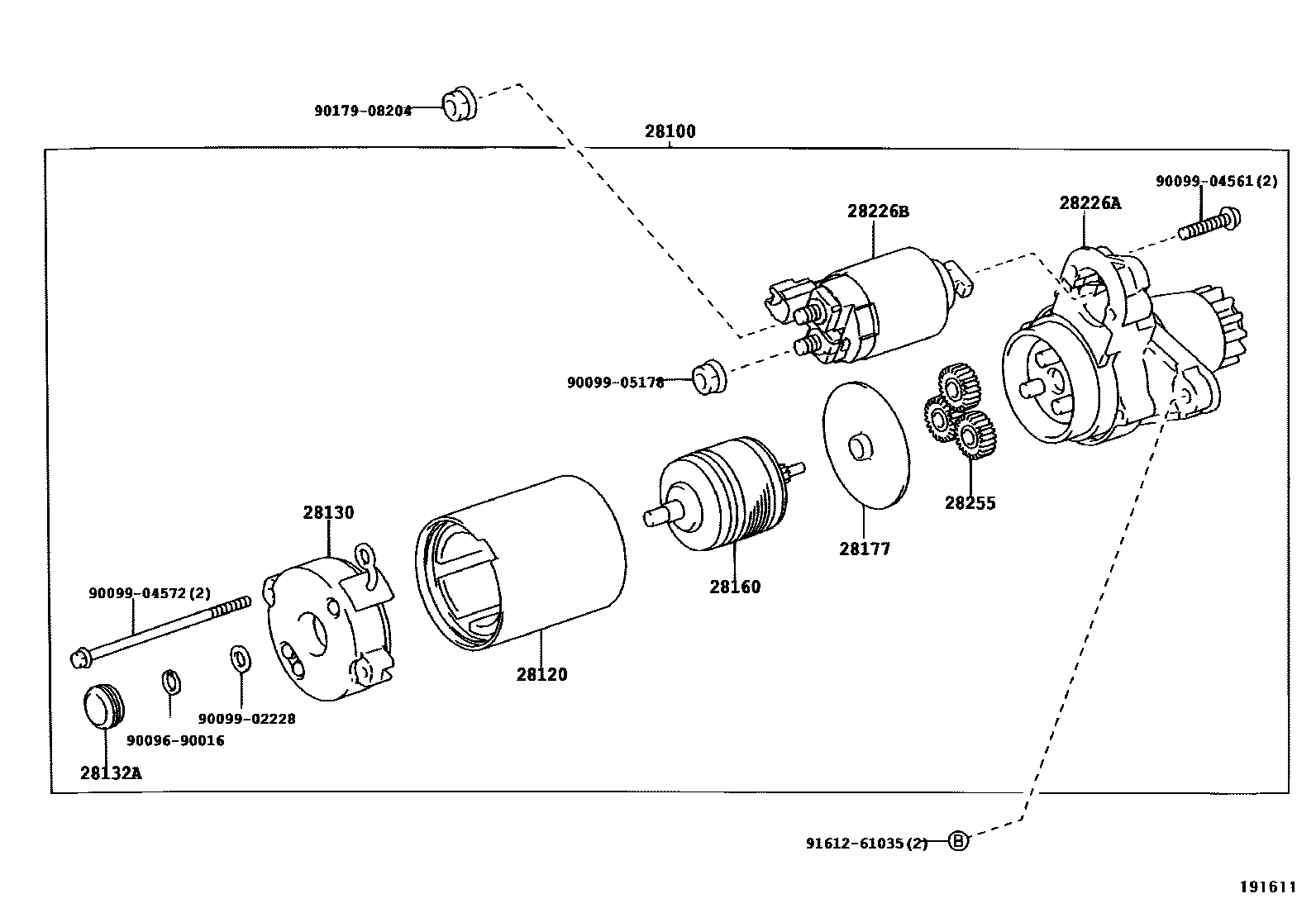

Toyota ALPHARD — STARTER

28100STARTER ASSY

main28100-28041i200312-200504

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-28040i200312-200504

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-28040i200312-200504

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i200312-200504

28160ARMATURE ASSY, STARTER

main28160-28040i200312-200504

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i200312-200504

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i200312-200504

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i200312-200504

28255GEAR, PLANET

main28255-28040×3i200312-200504

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 1 diagram in section

STARTER for Toyota ALPHARD

This section contains 16 genuine Toyota parts for the STARTER system of the Toyota ALPHARD. Key components include: STARTER ASSY, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END, COVER, STARTER COMMUTATOR END FRAME, ARMATURE ASSY, STARTER.
