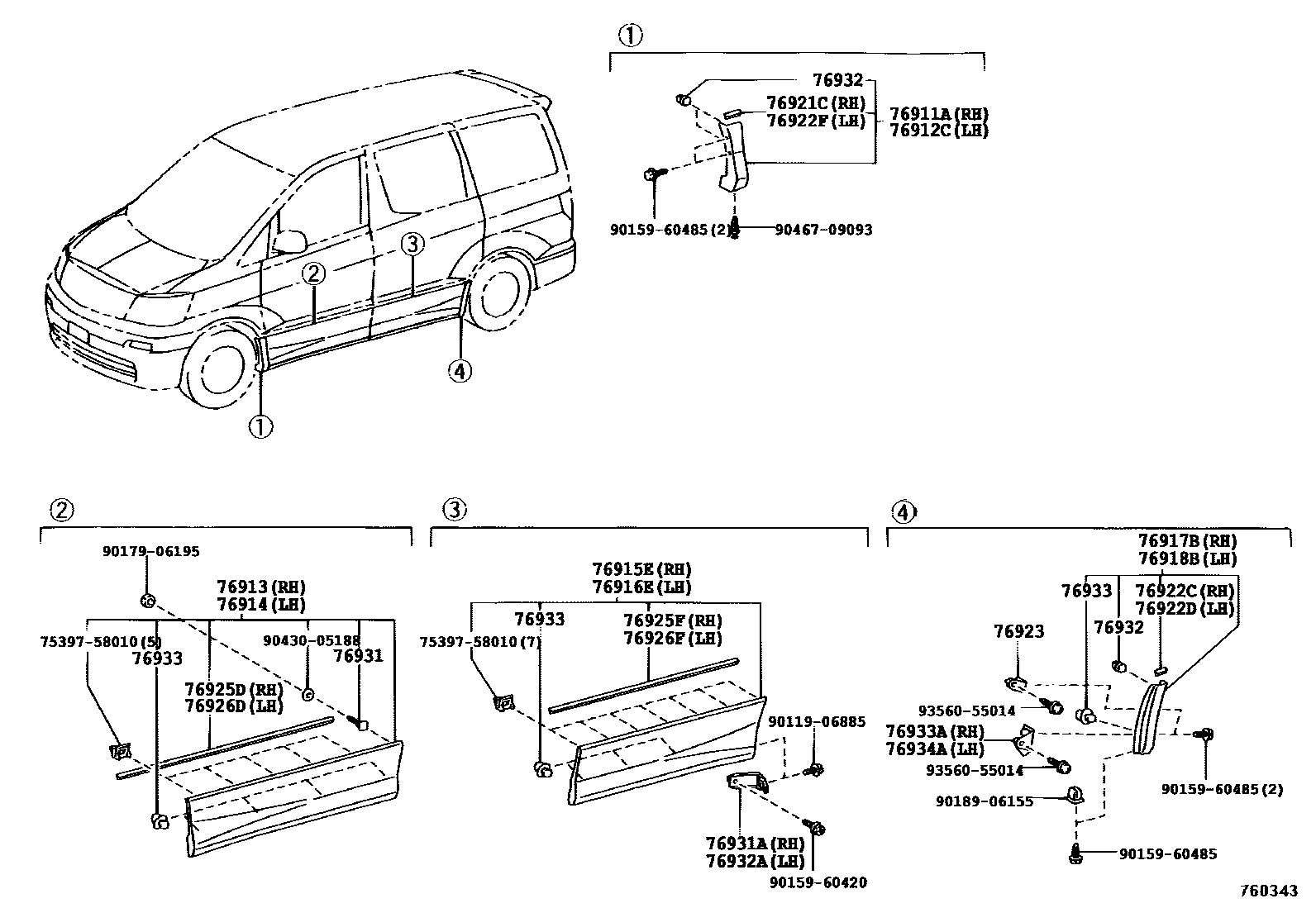

Toyota ALPHARD — SPOILER & SIDE MUDGUARD

76911AMUDGUARD, FENDER PANEL, RH

main76901-58010-A0i200504-200607

WHITE PM.,042

main76901-58010-B0i200312-200504

SILVER ME.,1C0

main76901-58010-B3i200504-200607

SILVER ME.,1E4

main76901-58010-B4i200504-200607

SILVER ME.,1F7

main76901-58010-C0i200312-200504

BLACK MC.,209

main76901-58010-J0i200504-200607

DK.BLUE MC.,8K8

main76901-58011-A0i200607-200706

WHITE PM.,042

main76901-58011-A1i200706-200804

WHITE PEARL CS.,070

main76901-58011-B3i200607-200804

SILVER ME.,1E4

main76901-58011-B4i200607-200804

SILVER ME.,1F7

main76901-58011-C0i200607-200804

BLACK MC.,209

main76901-58011-J0i200607-200804

DK.BLUE MC.,8K8

76912CMUDGUARD, FENDER PANEL, LH

main76902-58010-A0i200504-200607

WHITE PM.,042

main76902-58010-B0i200312-200504

SILVER ME.,1C0

main76902-58010-B3i200504-200607

SILVER ME.,1E4

main76902-58010-B4i200504-200607

SILVER ME.,1F7

main76902-58010-C0i200312-200504

BLACK MC.,209

main76902-58010-J0i200504-200607

DK.BLUE MC.,8K8

main76902-58011-A0i200607-200706

WHITE PM.,042

main76902-58011-A1i200706-200804

WHITE PEARL CS.,070

main76902-58011-B3i200607-200804

SILVER ME.,1E4

main76902-58011-B4i200607-200804

SILVER ME.,1F7

main76902-58011-C0i200607-200804

BLACK MC.,209

main76902-58011-J0i200607-200804

DK.BLUE MC.,8K8

76913MUDGUARD, FRONT DOOR, RH

main76903-58010-A0i200504-200706

WHITE PM.,042

main76903-58010-A1i200706-200804

WHITE PEARL CS.,070

main76903-58010-B0i200312-200504

SILVER ME.,1C0

main76903-58010-B3i200504-200804

SILVER ME.,1E4

main76903-58010-B4i200504-200804

SILVER ME.,1F7

main76903-58010-C0i200504-200804

BLACK MC.,209

main76903-58010-J0i200312-200504

DK.BLUE MC.,8K8

76914MUDGUARD, FRONT DOOR, LH

main76904-58010-A0i200504-200706

WHITE PM.,042

main76904-58010-A1i200706-200804

WHITE PEARL CS.,070

main76904-58010-B0i200312-200504

SILVER ME.,1C0

main76904-58010-B3i200504-200804

SILVER ME.,1E4

main76904-58010-B4i200504-200804

SILVER ME.,1F7

main76904-58010-C0i200504-200804

BLACK MC.,209

main76904-58010-J0i200312-200504

DK.BLUE MC.,8K8

76915EMUDGUARD, SLIDE DOOR, RH

main76905-58010-A0i200504-200706

WHITE PM.,042

main76905-58010-A1i200706-200804

WHITE PEARL CS.,070

main76905-58010-B0i200312-200504

SILVER ME.,1C0

main76905-58010-B3i200504-200804

SILVER ME.,1E4

main76905-58010-B4i200504-200804

SILVER ME.,1F7

main76905-58010-C0i200504-200804

BLACK MC.,209

main76905-58010-J0i200504-200804

DK.BLUE MC.,8K8

76916EMUDGUARD, SLIDE DOOR, LH

main76906-58010-A0i200312-200504

WHITE PM.,042

main76906-58010-A1i200706-200804

WHITE PEARL CS.,070

main76906-58010-B0i200312-200504

SILVER ME.,1C0

main76906-58010-B3i200504-200804

SILVER ME.,1E4

main76906-58010-B4i200504-200804

SILVER ME.,1F7

main76906-58010-C0i200504-200804

BLACK MC.,209

main76906-58010-J0i200504-200804

DK.BLUE MC.,8K8

76917BMUDGUARD, QUARTER PANEL, RH

main76907-58010-A0i200504-200607

WHITE PM.,042

main76907-58010-B0i200312-200504

SILVER ME.,1C0

main76907-58010-B3i200504-200607

SILVER ME.,1E4

main76907-58010-B4i200504-200607

SILVER ME.,1F7

main76907-58010-C0i200504-200607

BLACK MC.,209

main76907-58010-J0i200312-200504

DK.BLUE MC.,8K8

main76907-58011-A0i200607-200706

WHITE PM.,042

main76907-58011-A1i200706-200804

WHITE PEARL CS.,070

main76907-58011-B3i200607-200804

SILVER ME.,1E4

main76907-58011-B4i200607-200804

SILVER ME.,1F7

main76907-58011-C0i200607-200804

BLACK MC.,209

main76907-58011-J0i200607-200804

DK.BLUE MC.,8K8

76918BMUDGUARD, QUARTER PANEL, LH

main76908-58010-A0i200312-200504

WHITE PM.,042

main76908-58010-B0i200312-200504

SILVER ME.,1C0

main76908-58010-B3i200504-200607

SILVER ME.,1E4

main76908-58010-B4i200504-200607

SILVER ME.,1F7

main76908-58010-C0i200312-200504

BLACK MC.,209

main76908-58010-J0i200312-200504

DK.BLUE MC.,8K8

main76908-58011-A0i200607-200706

WHITE PM.,042

main76908-58011-A1i200706-200804

WHITE PEARL CS.,070

main76908-58011-B3i200607-200804

SILVER ME.,1E4

main76908-58011-B4i200607-200804

SILVER ME.,1F7

main76908-58011-C0i200607-200804

BLACK MC.,209

main76908-58011-J0i200607-200804

DK.BLUE MC.,8K8

76921CPROTECTOR, SIDE MUDGUARD, RH

main76921-58010-B0i200607-200804

LT. GRAY,042 ,070 ,1F7

main76921-58010-C0i200504-200804

BLACK,1E4 ,209 ,8K8

76922CPROTECTOR, SIDE MUDGUARD, NO.2

main76922-58010-B0i200504-200607

LT. GRAY,042 ,1F7

main76922-58010-C0i200504-200804

BLACK,1E4 ,209 ,8K8

76922DPROTECTOR, SIDE MUDGUARD, NO.2

main76922-58010-B0i200504-200607

LT. GRAY,042 ,1F7

main76922-58010-C0i200312-200504

BLACK,209 ,8K8

76922FPROTECTOR, SIDE MUDGUARD, LH

main76921-58010-B0i200607-200804

LT. GRAY,042 ,070 ,1F7

main76921-58010-C0i200312-200504

BLACK,209 ,8K8

76923RETAINER, SIDE MUDGUARD

main76923-58010×2i200312-200504

76925DPROTECTOR, SIDE MUDGUARD, RH

main76965-58010-B0i200504-200804

LT. GRAY,042 ,070 ,1F7

main76965-58010-C0i200312-200504

BLACK,209 ,8K8

76925FPROTECTOR, SIDE MUDGUARD, RH

main76966-58010-B0i200504-200804

LT. GRAY,042 ,070 ,1F7

main76966-58010-C0i200312-200504

BLACK,209 ,8K8

76926DPROTECTOR, SIDE MUDGUARD, LH

main76965-58010-B0i200312-200504

LT. GRAY,042 ,1C0

main76965-58010-C0i200312-200504

BLACK,209 ,8K8

76926FPROTECTOR, SIDE MUDGUARD, LH

main76966-58010-B0i200504-200804

LT. GRAY,042 ,070 ,1F7

main76966-58010-C0i200312-200504

BLACK,209 ,8K8

76931RETAINER, SIDE MUDGUARD, NO.3

main75392-58010×2i200312-200504

76931ABRACKET, SIDE MUDGUARD, NO.1 RH

main76931-58011i200312-200504

76932RETAINER, SIDE MUDGUARD, NO.4

main76932-28030×6i200607

76932ABRACKET, SIDE MUDGUARD, NO.1 LH

main76932-58021i200312-200504

76933RETAINER, SIDE MUDGUARD, NO.5

main76932-58010×16i200312-200504

76933ABRACKET, SIDE MUDGUARD, NO.2 RH

main76933-58010i200312-200504

76934ABRACKET, SIDE MUDGUARD, NO.2 LH

main76934-58010i200312-200504

7539758010CLIP, BACK DOOR MOULDING, NO.3

main75397-58010

9011906885

main90119-06885

9015960420

main90159-60420

9015960485

main90159-60485

9017906195

main90179-06195

9018906155

main90189-06155

9043005188

main90430-05188

9046709093

main90467-09093

9356055014

main93560-55014

33 parts on this diagram · 2 diagrams in section

SPOILER & SIDE MUDGUARD for Toyota ALPHARD

This section contains 44 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota ALPHARD. Key components include: SPOILER, REAR, PROTECTOR, REAR SPOILER, NO.1, PROTECTOR, REAR SPOILER, NO.2, PROTECTOR, REAR SPOILER, NO.3, SEAL, REAR SPOILER.
