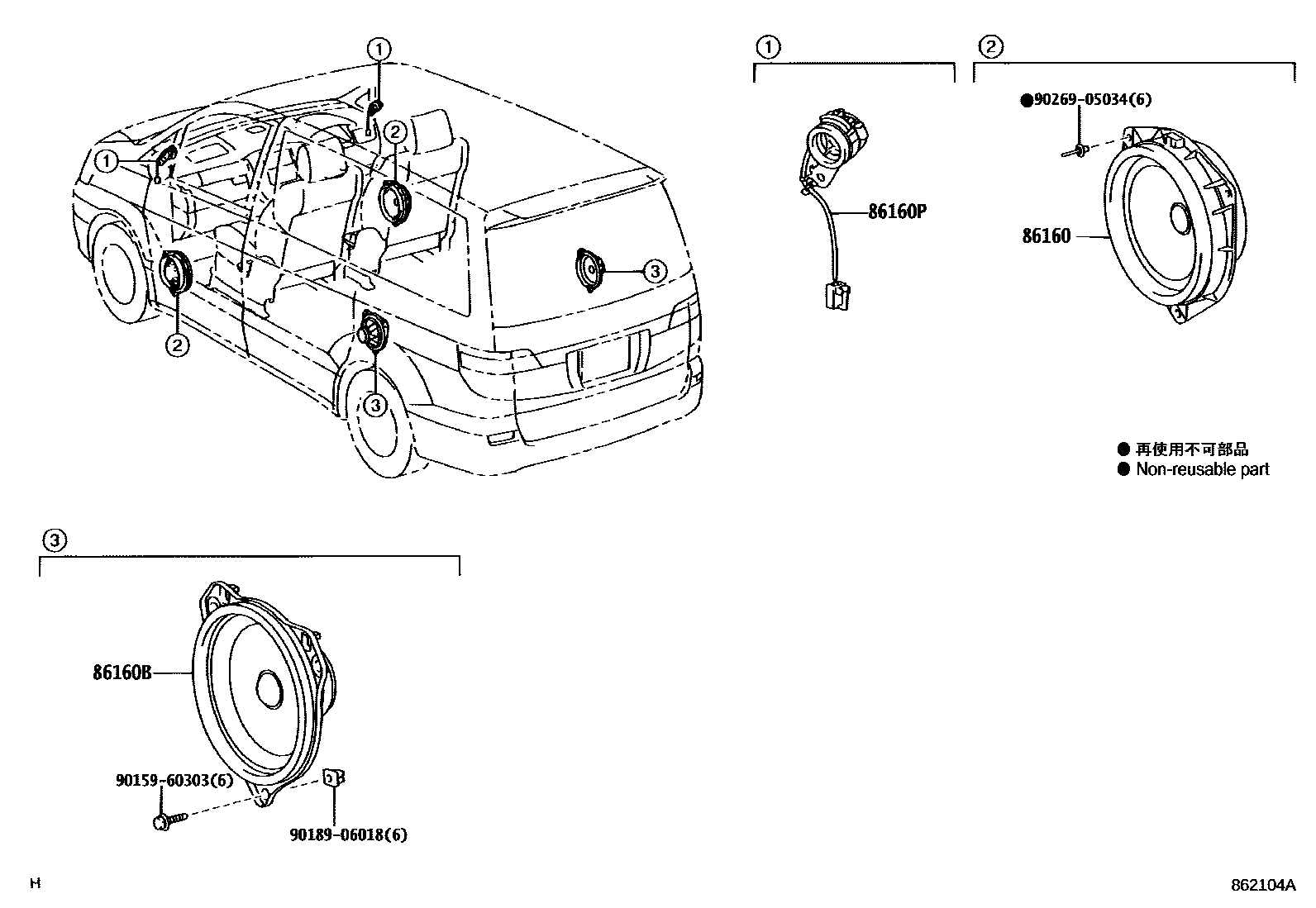

Toyota ALPHARD — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-22890×2i200312-200504

main86160-2B580×2i200504

86160BSPEAKER ASSY, REAR

main86160-58070×2i200312-200504

86160PSPEAKER ASSY, FRONT NO.2

main86160-58010i200312-200504

main86160-58020i200504

9015960303

main90159-60303

9018906018

main90189-06018

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota ALPHARD

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota ALPHARD. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
