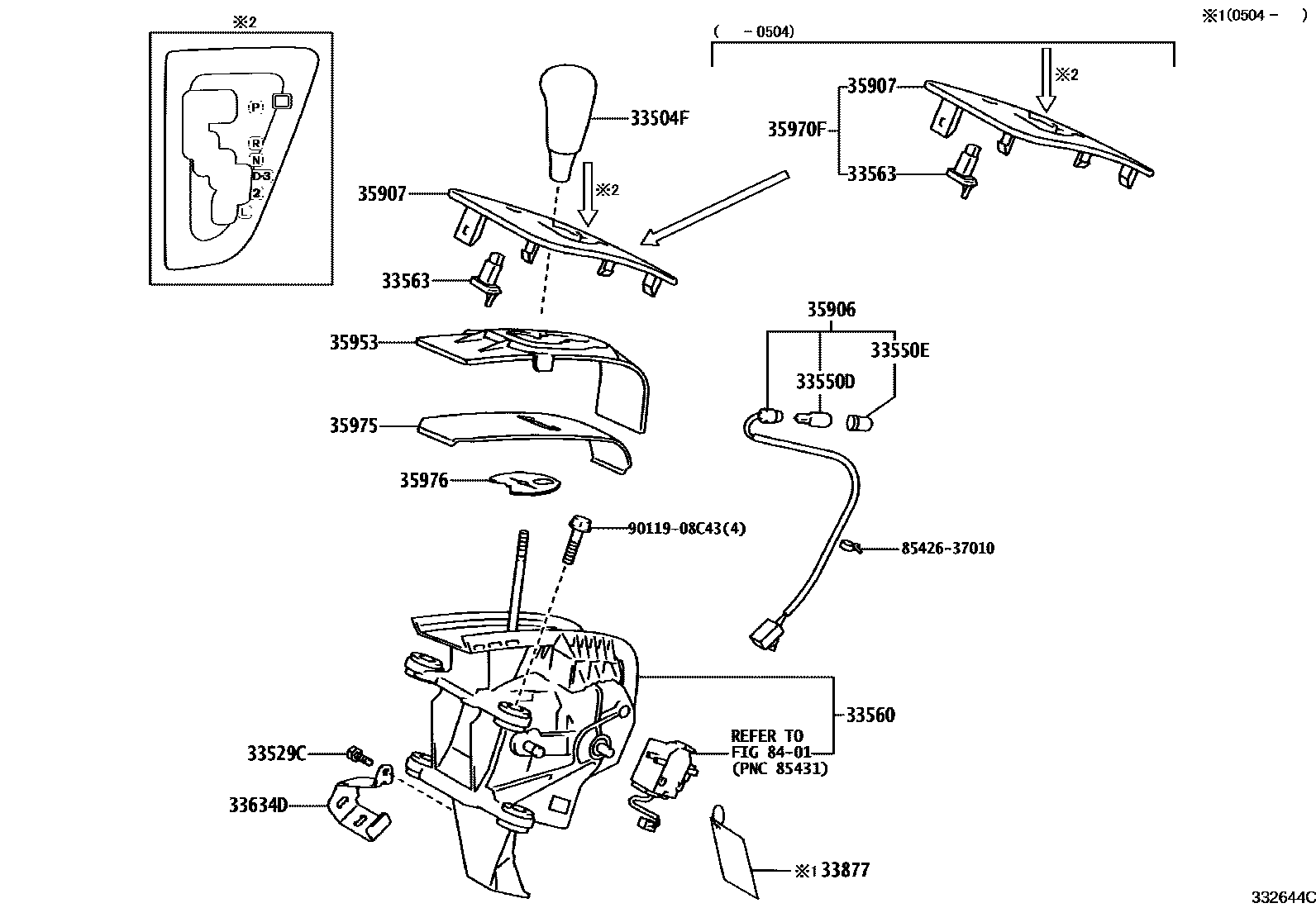

Toyota ALPHARD — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30310-E2i200312-200504

ORCHID BROWN,TRIM0#

main33504-30310-E9i200504-200804

ORCHID BROWN,TRIM0#

main33504-58010-B0i200312-200504

DK.GRAY,TRIM1#

main33504-58010-B1i200504-200804

DK.GRAY,TRIM1#

33529CBOLT, SHIFT LEVER

main33529-52010i200312-200504

33550DBULB, POSITION INDICATOR LAMP

main90981-11040i200312-200504

12V 2W

33550ECAP, POSITION INDICATOR LAMP

main35956-58010i200312-200504

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-58010i200312-200504

main33560-58030i200504

33563BUTTON, SHIFT LOCK RELEASE

main33563-58010i200312-200504

33634DBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-58010i200312-200504

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030i200504

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-58010i200312-200504

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-58010i200312-200504

main35907-58031i200504

35953GUIDE, POSITION INDICATOR LIGHT

main35953-58010i200312-200504

main35953-58020i200504

35970FHOUSING ASSY, POSITION INDICATOR

main35970-58010i200312-200504

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-58010i200312-200504

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-58010i200312-200504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9011908C43

main90119-08C43

17 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota ALPHARD

This section contains 28 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota ALPHARD. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BOLT, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL.
