Toyota ALPHARD — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-58010i200312-200504

85143RGROMMET, REAR WIPER MOTOR

main85143-44010i200312-200504

85192RCOVER, REAR WIPER ARM

main85292-28030i200312-200504

85214RRUBBER, REAR WIPER

main85214-10100i200312-200504

85241AARM, REAR WIPER

main85241-58010i200312-200504

85242BLADE, RR WIPER

main85242-28060i200312-200504

9017906158

main90179-06158

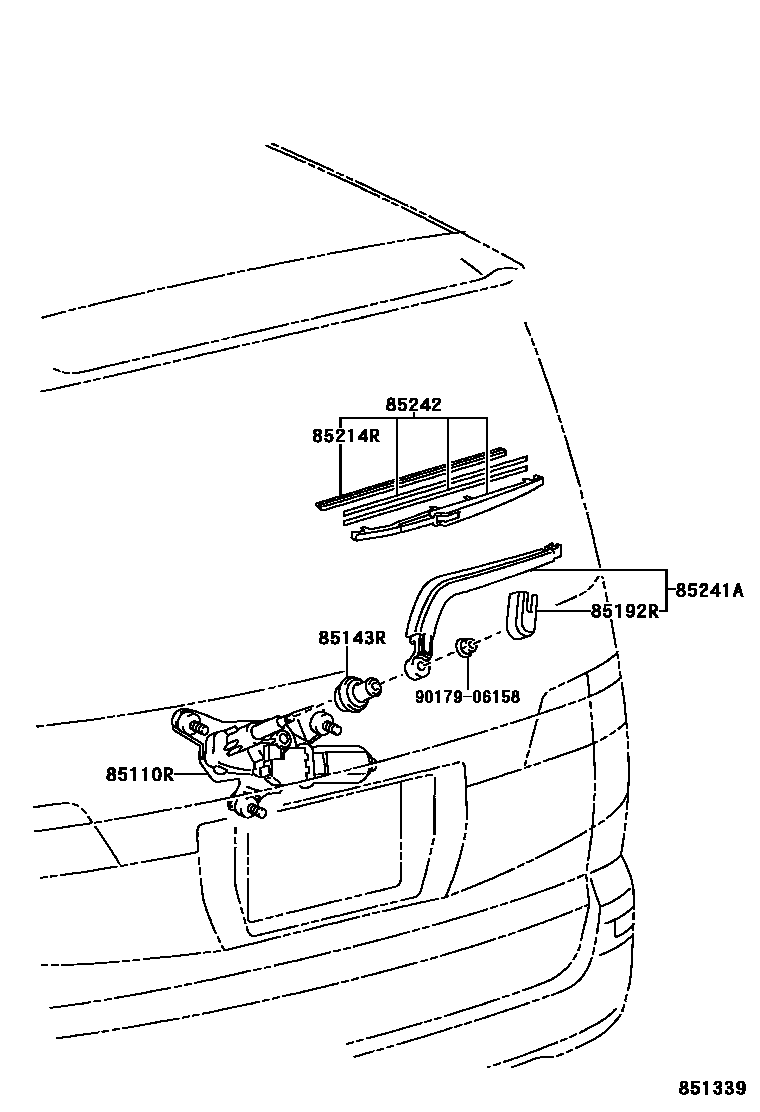

7 parts on this diagram · 1 diagram in section

REAR WIPER for Toyota ALPHARD

This section contains 7 genuine Toyota parts for the REAR WIPER system of the Toyota ALPHARD. Key components include: MOTOR ASSY, REAR WIPER, GROMMET, REAR WIPER MOTOR, COVER, REAR WIPER ARM, RUBBER, REAR WIPER, ARM, REAR WIPER.
