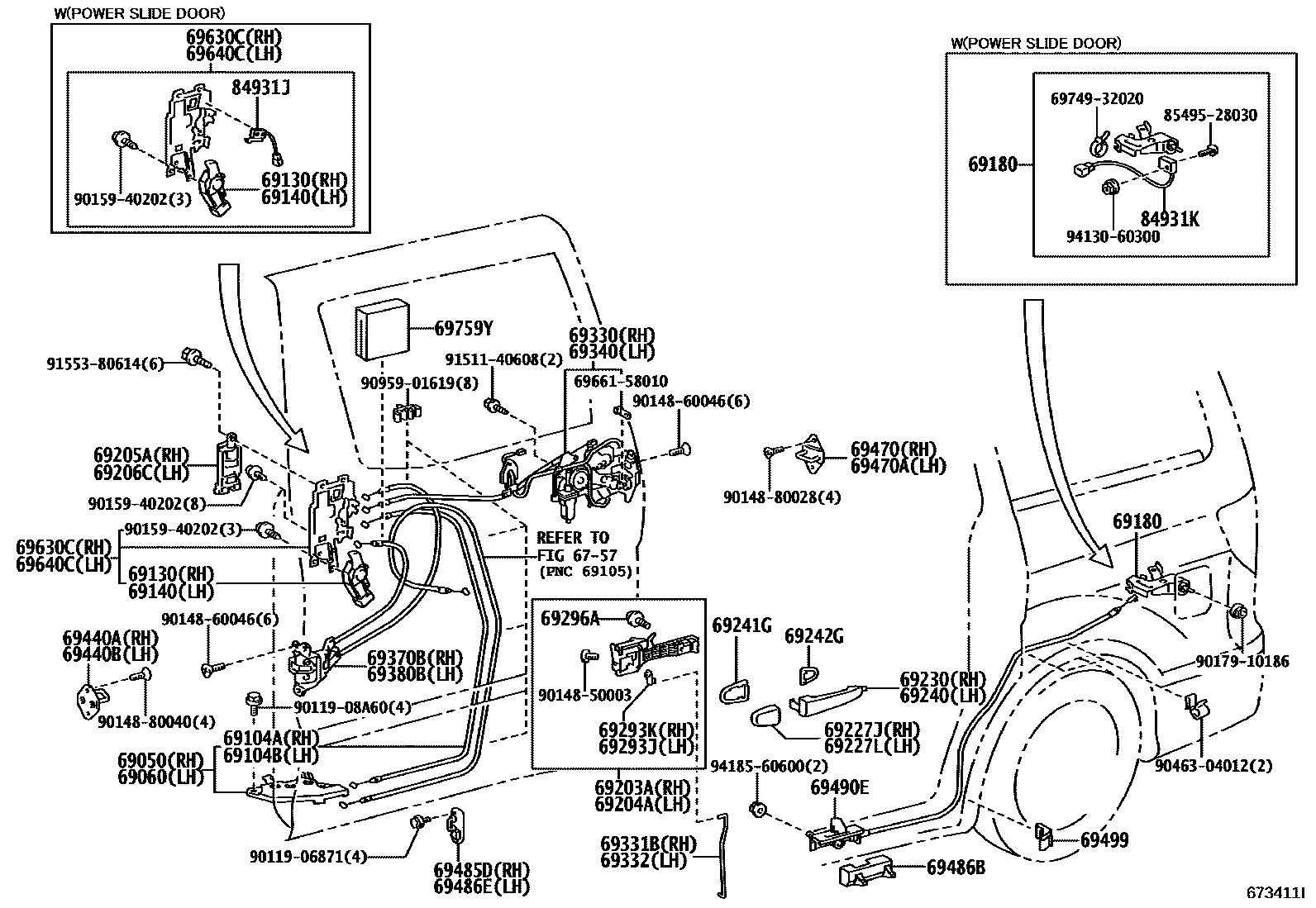

Toyota ALPHARD — REAR DOOR LOCK & HANDLE
6757REAR DOOR WINDOW REGULATOR & HINGE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69104ACABLE SUB-ASSY, SLIDE DOOR FULL STOP CONTROL, RH
69104BCABLE SUB-ASSY, SLIDE DOOR FULL STOP CONTROL, LH
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
WITH/*PW SLIDE DOOR(RH,LH)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
WITH/*PW SLIDE DOOR(RH,LH)
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
WITH/*PW SLIDE DOOR(RH,LH)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#,W(CHILD LOCK LEVER)
ORCHID BROWN,TRIM0#,W(CHILD LOCK LEVER)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#,W(CHILD LOCK LEVER)
ORCHID BROWN,TRIM0#,W(CHILD LOCK LEVER)
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
*CR
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
GOLD ME.,593
DK.BLUE MC.,8K8
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
*CR
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
GOLD ME.,593
DK.BLUE MC.,8K8
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
PLATED
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
GOLD ME.,593
DK.BLUE MC.,8K8
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PM.,042
SILVER ME.,1C0
BLACK MC.,209
DK.BLUE MC.,8K8
PLATED
WHITE PM.,042
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
BLACKISH RED MC.,3R0
GOLD ME.,593
DK.BLUE MC.,8K8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH
69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH
69296ASCREW, DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69331BROD, REAR DOOR LOCK OPEN, RH
69332ROD, REAR DOOR LOCK OPEN, LH
69340LOCK ASSY, REAR DOOR, LH
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486BCOVER, SLIDE DOOR HALF OPEN STOPPER
69486ESTRIKER, SLIDE DOOR OPEN, LH
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
WITH/*PW SLIDE DOOR(RH,LH)
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
WITH/*PW SLIDE DOOR(RH,LH)
69759YSILENCER, REAR DOOR LOCK LINK
84931JSWITCH, DOOR CONTROL
RH; WITH/*PW SLIDE DOOR(RH,LH),RH
LH; WITH/*PW SLIDE DOOR(RH,LH),LH
84931KSWITCH, DOOR CONTROL
WITH/*PW SLIDE DOOR(RH,LH)
6966158010
main69661-58010
6974932020CLAMP, FRONT DOOR LOCK LINK
main69749-32020
8549528030
main85495-28030
9011906871
main90119-06871
9011908A60
main90119-08A60
9014850003
main90148-50003
9014860046
main90148-60046
9014880028
main90148-80028
9014880040
main90148-80040
9015940202
main90159-40202
9017910186
main90179-10186
9046304012
main90463-04012
9095901619
main90959-01619
9151140608
main91511-40608
9155380614
main91553-80614
9413060300
main94130-60300
9418560600
main94185-60600
58 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota ALPHARD
This section contains 58 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota ALPHARD. Key components include: REAR DOOR WINDOW REGULATOR & HINGE, LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH, LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH, CABLE SUB-ASSY, SLIDE DOOR FULL STOP CONTROL, RH, CABLE SUB-ASSY, SLIDE DOOR FULL STOP CONTROL, LH.
