Toyota ALPHARD — METER

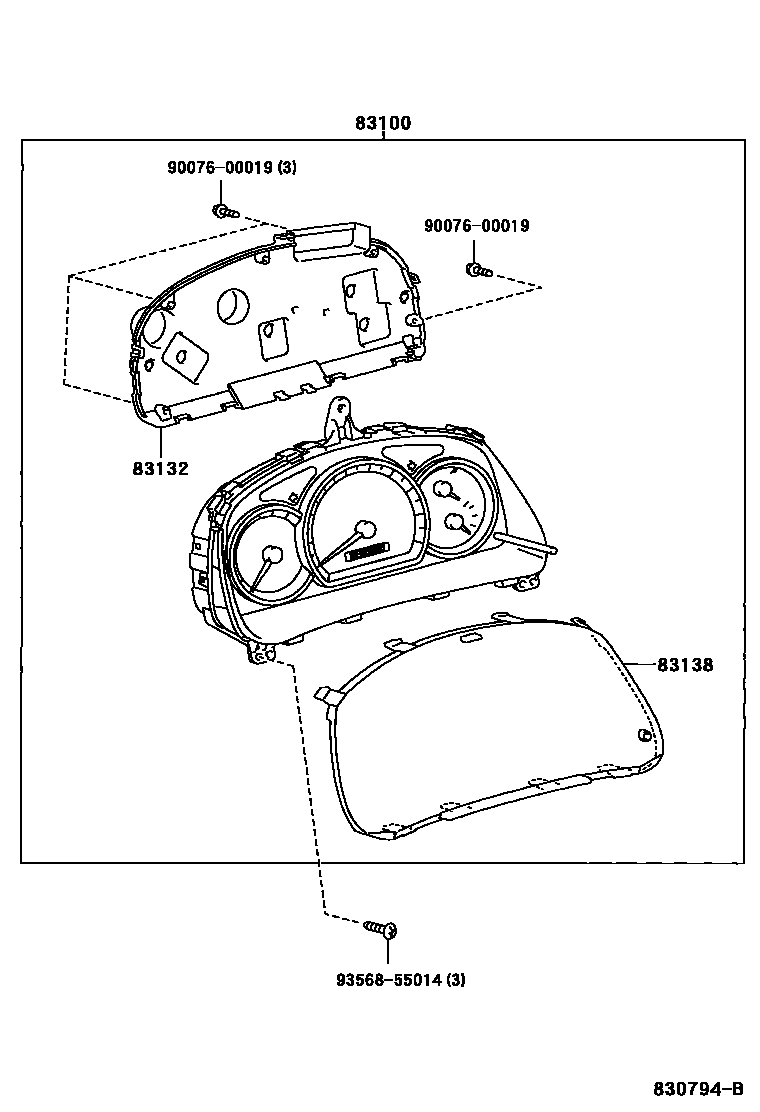

Parts diagram

83100METER ASSY, COMBINATION

main83800-58031i200312-200504

main83800-58070i200312-200504

main83800-58160i200504

main83800-58200i200504

83132CASE, COMBINATION METER

main83821-58010i200312-200504

main83821-58050i200312-200504

83138GLASS, SPEEDOMETER

main83852-58010i200312-200504

main83852-58020i200312-200504

9007600019

main90076-00019

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section

METER for Toyota ALPHARD

This section contains 5 genuine Toyota parts for the METER system of the Toyota ALPHARD. Key components include: METER ASSY, COMBINATION, CASE, COMBINATION METER, GLASS, SPEEDOMETER.
