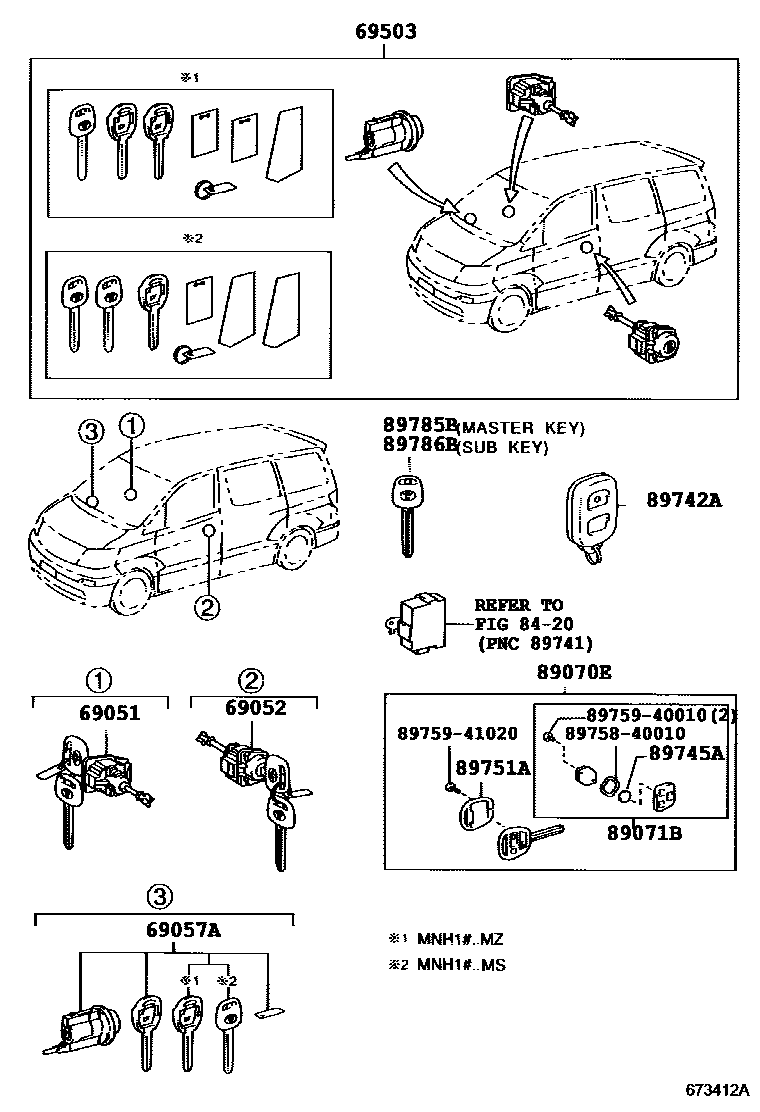

Toyota ALPHARD — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
8420WIRELESS DOOR LOCK
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89742ATRANSMITTER, DOOR CONTROL
WITH/*PW SLIDE DOOR(RH,LH)
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
15 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota ALPHARD
This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota ALPHARD. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK, WIRELESS DOOR LOCK.
