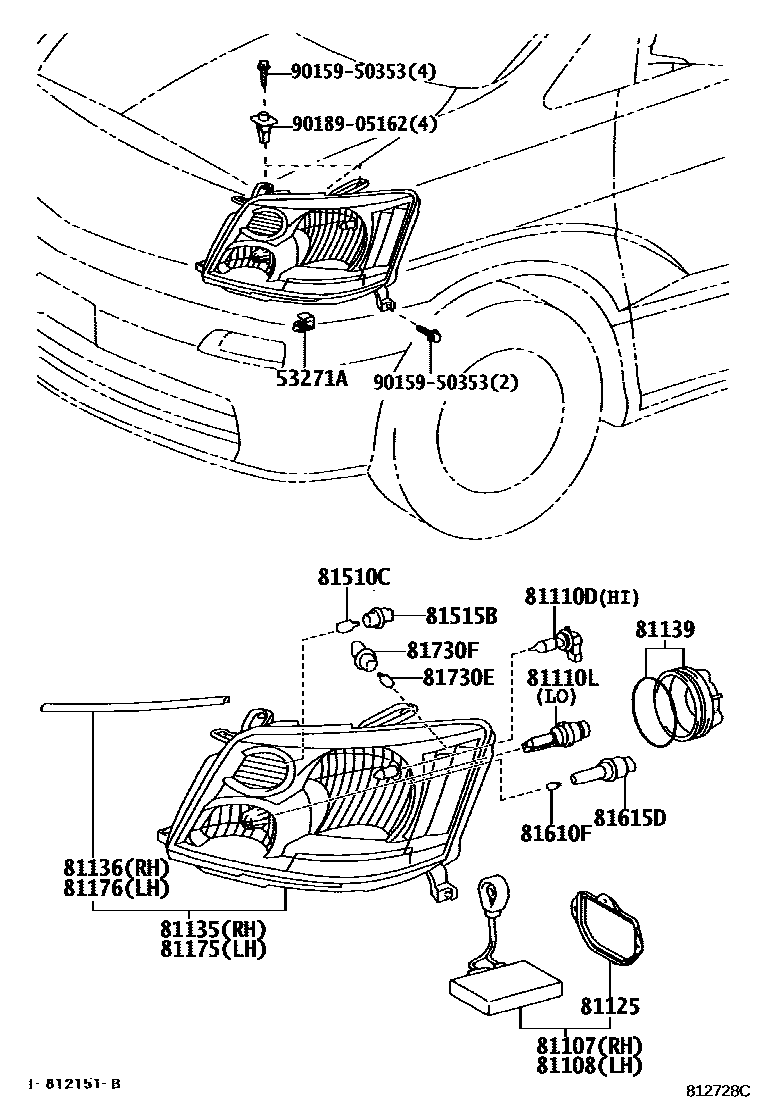

Toyota ALPHARD — HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2i200312-200504

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-58020i200312-200504

main81107-58050i200504

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-58020i200312-200504

main81107-58050i200504

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i200312-200504

12V 65W

81110LBULB, DISCHARGE HEADLAMP

main90981-20009×2i200312-200504

85V 35W

main90981-20017×2i200504-200710

85V 35W

81125CORD, HEADLAMP

main81125-58020×2i200312-200504

81135UNIT ASSY, HEADLAMP, RH

main81145-58020i200312-200504

main81145-58030i200312-200504

main81145-58060i200504-200710

main81145-58061i200711

main81145-58070i200504-200710

main81145-58071i200711

81136PROTECTOR, HEADLAMP, NO.1 RH

main81117-58010i200312-200504

81139COVER, HEADLAMP SOCKET

main81135-13290×2i200312-200504

main81135-58050i200504

81175UNIT ASSY, HEADLAMP, LH

main81185-58020i200312-200504

main81185-58030i200312-200504

main81185-58060i200504-200710

main81185-58061i200711

main81185-58070i200504-200710

main81185-58071i200711

81176PROTECTOR, HEADLAMP, NO.1 LH

main81157-58010i200312-200504

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200504-200710

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2i200312-200504

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200711

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-52570×2i200504

main90075-60046×2i200312-200504

81730EBULB (FOR SIDE TURN SIGNAL)

main99132-12050×2i200312-200504

81730FSOCKET PLUG, SIDE TURN SIGNEL LAMP

main81139-58010×2i200312-200504

9015950353

main90159-50353

9018905162

main90189-05162

19 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota ALPHARD

This section contains 34 genuine Toyota parts for the HEADLAMP system of the Toyota ALPHARD. Key components include: BRACKET, HEADLAMP MOUNTING, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP.
