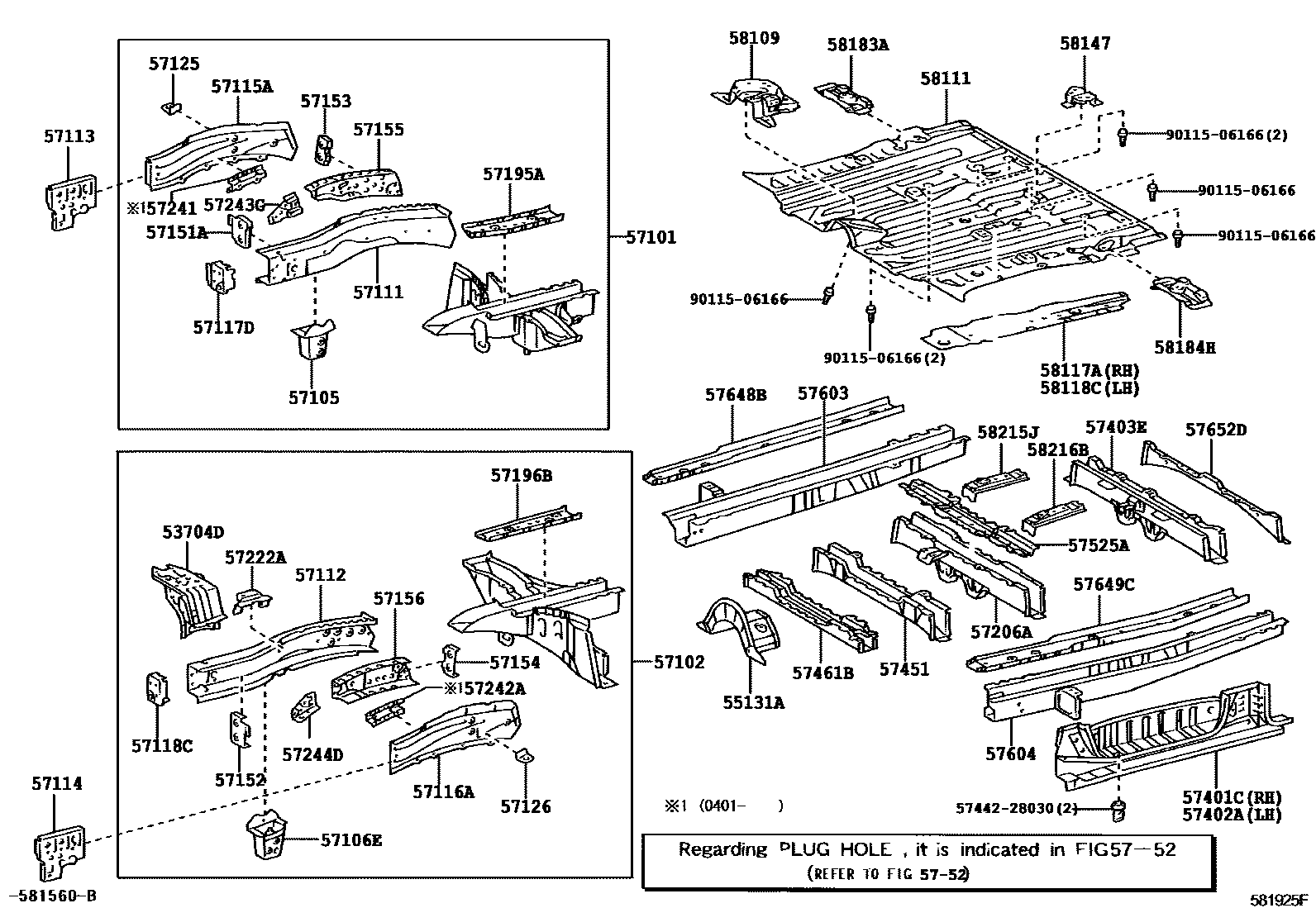

Toyota ALPHARD — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-58010iMNH10200312-200504

55131AREINFORCEMENT, DASH PANEL

main55131-58010iMNH10200312-200504

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-58010iMNH10200312-200504

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-58010iMNH10200312-200504

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iMNH10200312-200504

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iMNH10200312-200504

57111MEMBER, FRONT SIDE, RH

main57111-28230iMNH10200312-200504

57112MEMBER, FRONT SIDE, LH

main57112-28260iMNH10200312-200504

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-58020iMNH10200312-200504

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-28070iMNH10200312-200504

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28090iMNH10200312-200504

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28090iMNH10200312-200504

57117DRETAINER, FRONT BUMPER ARM, RH

main57117-58010iMNH10200312-200504

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-58010iMNH10200312-200504

57125BRACKET, FRONT SIDE MEMBER, RH

main57249-10040iMNH10200312-200804

57126BRACKET, FRONT SIDE MEMBER, LH

main57249-10040iMNH10200312-200804

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-28120iMNH10200312-200504

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-28120iMNH10200312-200504

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-28080iMNH10200312-200504

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-28080iMNH10200312-200504

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-28070iMNH10200312-200504

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-28080iMNH10200312-200504

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-58010iMNH10200312-200504

57196BREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-58010iMNH10200312-200504

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-58010iMNH10200312-200504

57222ABRACKET, FRONT SIDE MEMBER, LH

main57222-28040iMNH10200401-200504

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-28080iMNH10200401-200504

57242AREINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH

main57242-28050iMNH10200401-200504

57243GREINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH

main57243-28070iMNH10200312-200504

57244DREINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH

main57244-28040iMNH10200312-200504

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-58010iMNH10200312-200504

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-58010iMNH10200312-200504

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-58010iMNH10200312-200504

57451MEMBER, FRONT FLOOR CROSS

main57408-58010iMNH10200312-200504

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-58020iMNH10200312-200504

5752HOLE PLUG

→ Go to FIG 57-52

57525APLATE, CENTER FLOOR, NO.1

main57525-58010iMNH10200312-200504

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-58010iMNH10200312-200504

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-58020iMNH10200312-200504

57648BREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-58010iMNH10200312-200504

57649CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-58010iMNH10200312-200504

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57652-58010iMNH10200312-200504

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-58010iMNH10200312-200504

58111PAN, FRONT FLOOR

main58111-58010iMNH10200312-200504

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-58010iMNH10200312-200504

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-58010iMNH10200312-200504

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-28010iMNH10..MZ200312-200504

58183ARETAINER, SEAT RAIL, REAR RH

main58183-58010iMNH10200312-200504

58184HRETAINER, SEAT RAIL, REAR LH

main58184-58010iMNH10200312-200504

58215JBRACKET, REAR SEAT MOUNTING, RH

main58215-58010iMNH10200312-200504

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-58010iMNH10200312-200504

5744228030PLUG, STEP PANEL HOLE

main57442-28030

9011506166

main90115-06166

53 parts on this diagram · 1 diagram in section
