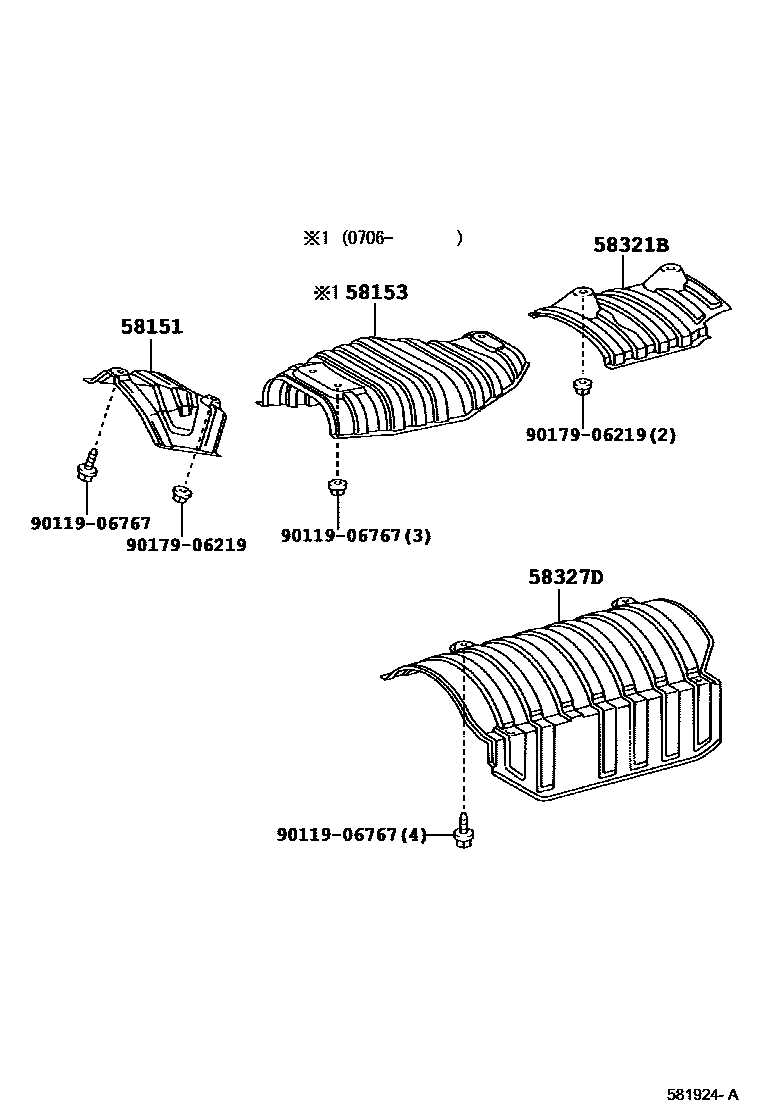

Toyota ALPHARD — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-28050i200312-200504

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-58010i200706

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-28040i200312-200504

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-28020i200312-200504

9011906767

main90119-06767

9017906219

main90179-06219

6 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota ALPHARD

This section contains 6 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota ALPHARD. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, REAR FLOOR HEAT, NO.1, INSULATOR, MAIN MUFFLER HEAT, UPPER.
