Toyota ALPHARD — CLEARANCE & BACK SONAR

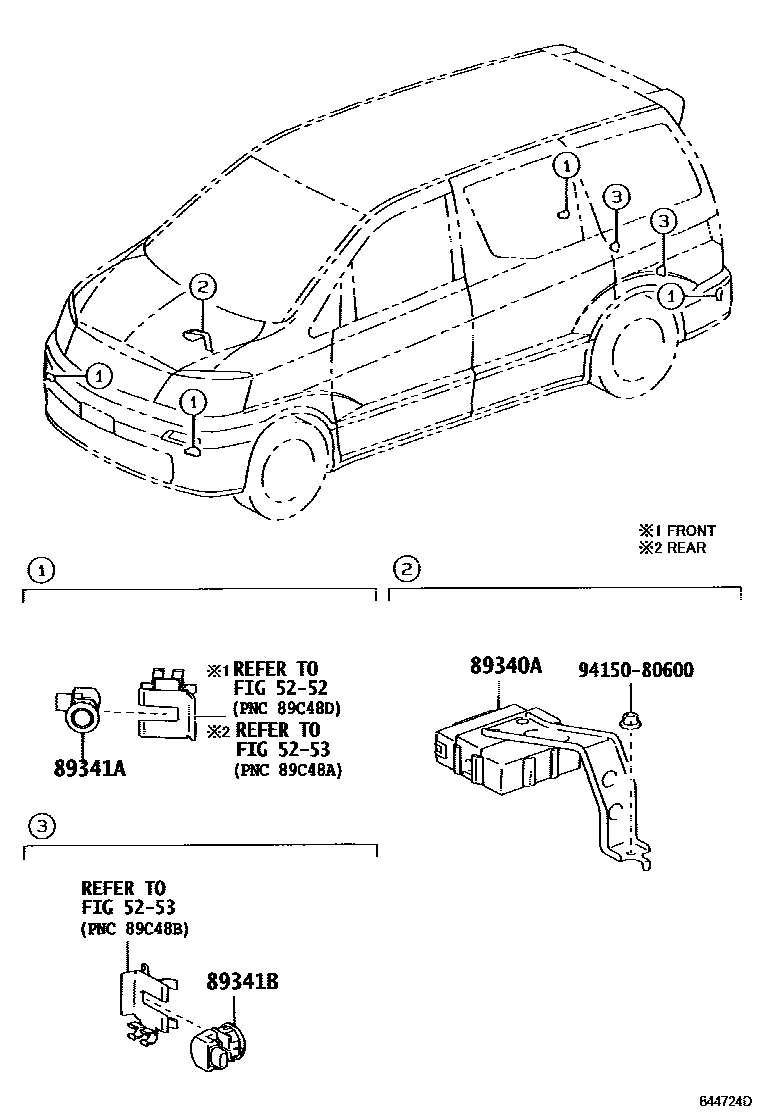

Parts diagram
5252FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-52
5253REAR BUMPER & BUMPER STAY
→ Go to FIG 52-53
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-58010i200504-200804
89341ASENSOR, ULTRASONIC, NO.1
main89341-58010-A0×4i200504-200706
WHITE PM.,042
main89341-58010-A2×4i200706-200804
WHITE PEARL CS.,070
main89341-58010-B0×4i200312-200504
SILVER ME.,1C0
main89341-58010-B5×4i200504-200804
SILVER ME.,1E4
main89341-58010-B6×4i200504-200804
SILVER ME.,1F7
main89341-58010-C0×4i200312-200504
BLACK MC.,209
main89341-58010-D0×4i200312-200504
BORDEAUX MC.,3P2
main89341-58010-D1×4i200312-200504
SHELL ME.,2JD
main89341-58010-D3×4i200504-200804
BLACKISH RED MC.,3R0
main89341-58010-F0×4i200504-200804
GOLD ME.,593
main89341-58010-G0×4i200312-200504
LT. GREEN M.M.,6T2
main89341-58010-J1×4i200504-200804
DK.BLUE MC.,8K8
89341BSENSOR, ULTRASONIC, NO.2
main89341-58021-A0×2i200312-200501
WHITE PM.,042,P/N LABEL=8934158021
main89341-58021-B0×2i200312-200501
SILVER ME.,1C0,P/N LABEL=8934158021
main89341-58021-C0×2i200312-200501
BLACK MC.,209,P/N LABEL=8934158021
main89341-58021-D0×2i200312-200501
BORDEAUX MC.,3P2,P/N LABEL=8934158021
main89341-58021-D1×2i200312-200501
SHELL ME.,2JD,P/N LABEL=8934158021
main89341-58021-F0×2i200312-200501
GOLD ME.,593,P/N LABEL=8934158021
main89341-58021-G0×2i200312-200501
LT. GREEN M.M.,6T2,P/N LABEL=8934158021
main89341-58021-J1×2i200312-200501
DK.BLUE MC.,8K8,P/N LABEL=8934158021
main89341-58022-A0×2i200504-200706
WHITE PM.,042
main89341-58022-A2×2i200706-200804
WHITE PEARL CS.,070
main89341-58022-B0×2i200502-200504
SILVER ME.,1C0,P/N LABEL=8934158022
main89341-58022-B5×2i200504-200804
SILVER ME.,1E4
main89341-58022-B6×2i200504-200804
SILVER ME.,1F7
main89341-58022-C0×2i200504-200804
BLACK MC.,209
main89341-58022-D0×2i200502-200504
BORDEAUX MC.,3P2,P/N LABEL=8934158022
main89341-58022-D1×2i200502-200504
SHELL ME.,2JD,P/N LABEL=8934158022
main89341-58022-D3×2i200504-200804
BLACKISH RED MC.,3R0
main89341-58022-F0×2i200504-200804
GOLD ME.,593
main89341-58022-G0×2i200502-200504
LT. GREEN M.M.,6T2,P/N LABEL=8934158022
main89341-58022-J1×2i200502-200504
DK.BLUE MC.,8K8,P/N LABEL=8934158022
9415080600
main94150-80600

6 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota ALPHARD

This section contains 6 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota ALPHARD. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.1, SENSOR, ULTRASONIC, NO.2.
