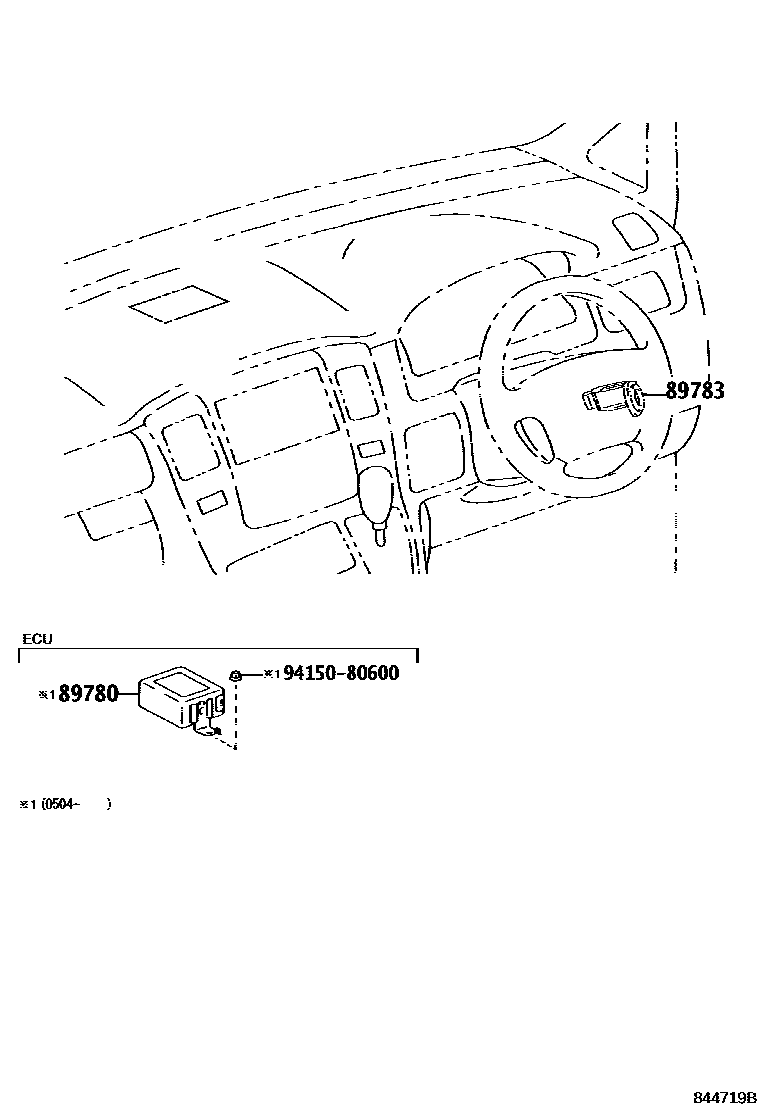

Toyota ALPHARD — ANTI-THEFT DEVICE

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-58030i200504-200512

main89780-58031i200601

89783AMPLIFIER, TRANSPONDER KEY

main89783-33070i200312-200504

main89783-33100i200504

9415080600

main94150-80600

3 parts on this diagram · 1 diagram in section

ANTI-THEFT DEVICE for Toyota ALPHARD

This section contains 3 genuine Toyota parts for the ANTI-THEFT DEVICE system of the Toyota ALPHARD. Key components include: COMPUTER ASSY, TRANSPONDER KEY, AMPLIFIER, TRANSPONDER KEY.
