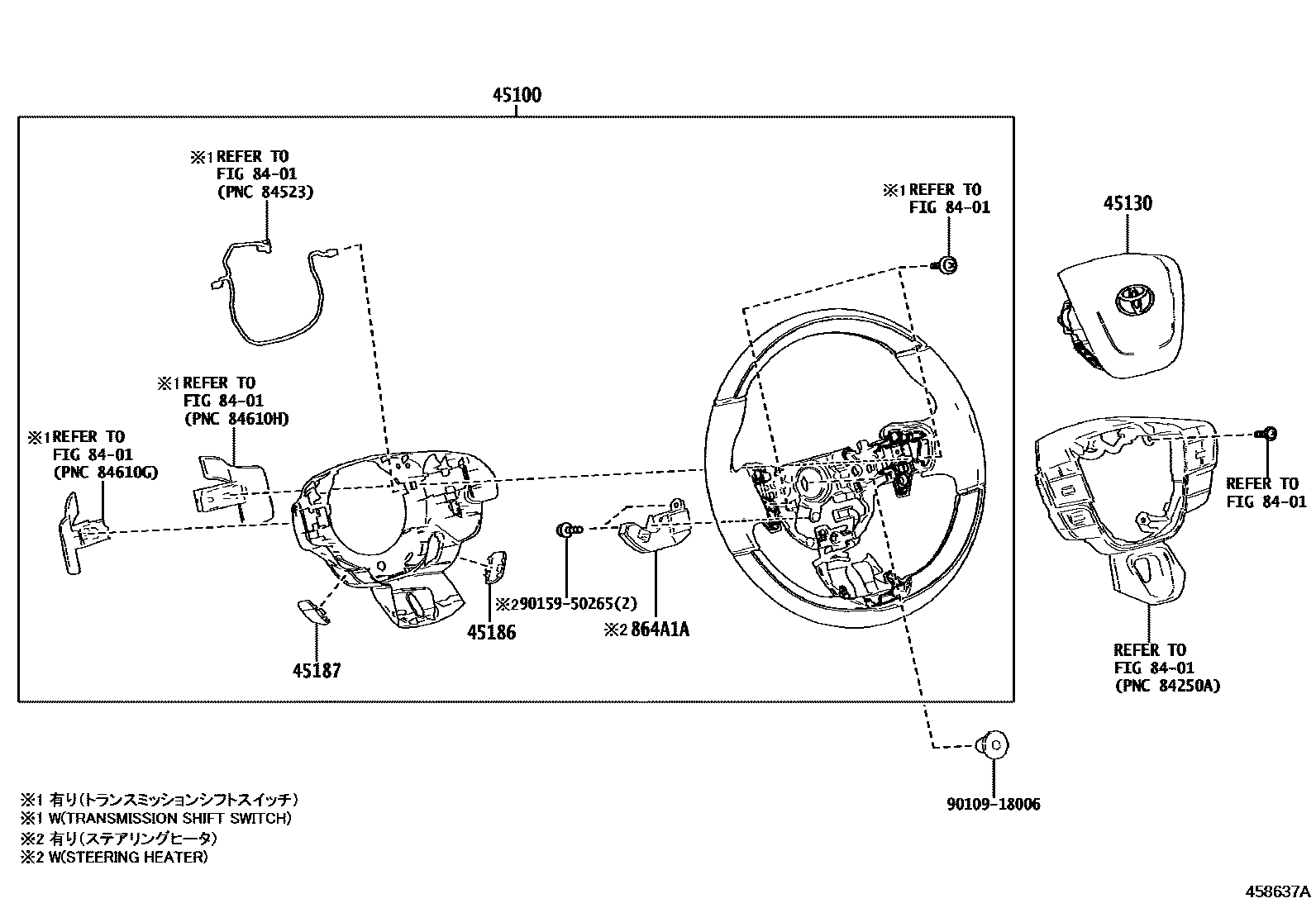

Toyota ALPHARD/VELLFIRE — STEERING WHEEL
45100WHEEL ASSY, STEERING
45130BUTTON ASSY, HORN
main45130-V2010-C0iAAHP45..EL,SL,SLS,Z;AAHH4#,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z; AAHP45..PREM;AAHH4#,AGH4#..G,X202306
BLACK,TRIM2#; BLACK,TRIM2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-30200-C0iAAHP45..EL,SL,SLS,Z;AAHH4#,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z; AAHP45..PREM;AAHH4#,AGH4#..G,X202306
BLACK,TRIM2#; BLACK,TRIM2#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-30140-C0iAAHP45..EL,SL,SLS,Z;AAHH4#,AGH4#,TAHA4#..EL,PREM,SL,SLS,Z; AAHP45..PREM;AAHH4#,AGH4#..G,X202306
BLACK,TRIM2#; BLACK,TRIM2#,4#
8401SWITCH & RELAY & COMPUTER
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
main864A1-78040supersedes 864A1-78020iAAHH4#,AAHP45,AGH4#..PREM,Z; TAHA4#;AAHH4#,AAHP45..EL,SL,SLS202306
9010918006
main90109-18006
9015950265
main90159-50265
8 parts on this diagram · 1 diagram in section
STEERING WHEEL for Toyota ALPHARD/VELLFIRE
This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota ALPHARD/VELLFIRE. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SWITCH & RELAY & COMPUTER.
